- Page 1 MPEX1394B3 Instruction Manual Mini PCI Express FireWire Adapter Card 3-Port Mini PCI Express to 1394b FireWire Adapter Card Manual Revision:04/25/2017 For the most up-to-date information, please visit www.startech.com...
- Page 2 Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property...
-
Page 3: Table Of Contents
Table of Contents Introduction ..................1 Packaging Contents ..................1 System Requirements .................1 Installation ..................2 Hardware Installation ..................2 Driver Installation..................2 Specifications ...................4 Technical Support ................5 Warranty Information ..............5... -
Page 4: Introduction

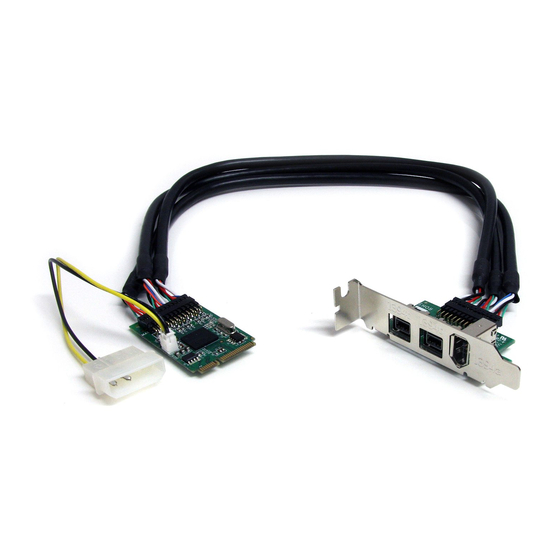

Introduction The MPEX1394B3 3-Port Mini PCI Express to FireWire800 and FireWire400 adapter card allows for adding external FireWire connectivity to very small form factor or embedded systems. Providing two FireWire800 (1394b) and one FireWire400 (1394a) ports, this adapter card supports the latest external FireWire storage devices at speeds up to 800 Mbps. -
Page 5: Installation
Be sure that you are properly grounded before opening your computer case or touching your Mini PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is... -
Page 6: Specifications
Specifications PCI Express Mini Card Host Interface revision 1.2 Full Length Mini PCIe Form Factor Full/Low Profile Card Bracket IEEE 1394b / 1394-2002 / Supported Standards 1394-1995 Texas Instruments - XIO2213B Chipset ID 2 x 9-pin FireWire female External Connectors 1 x 6-pin FireWire female Internal Connectors 1 x LP4 Power male... -
Page 7: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech. com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,... - Page 8 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products,...
