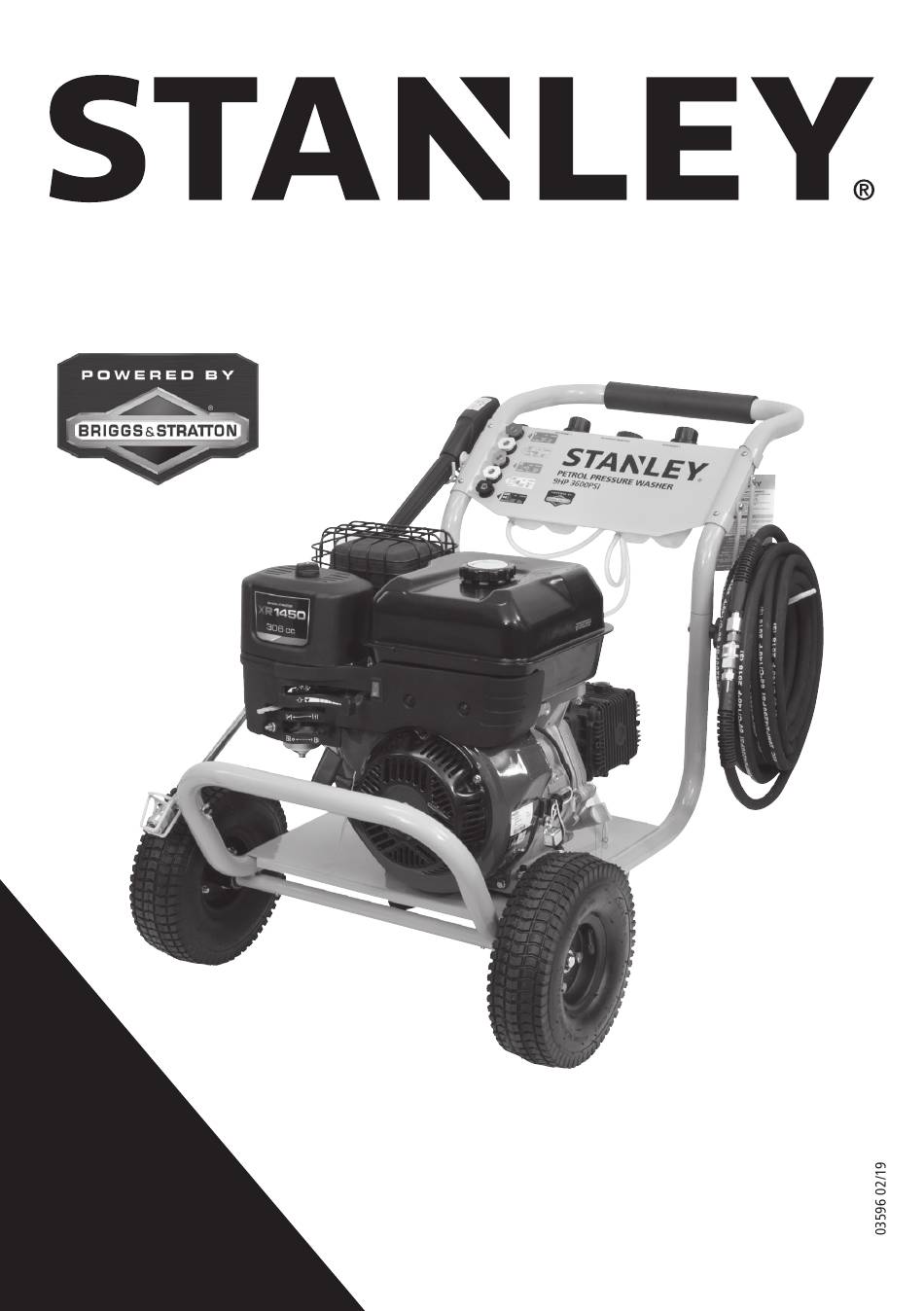

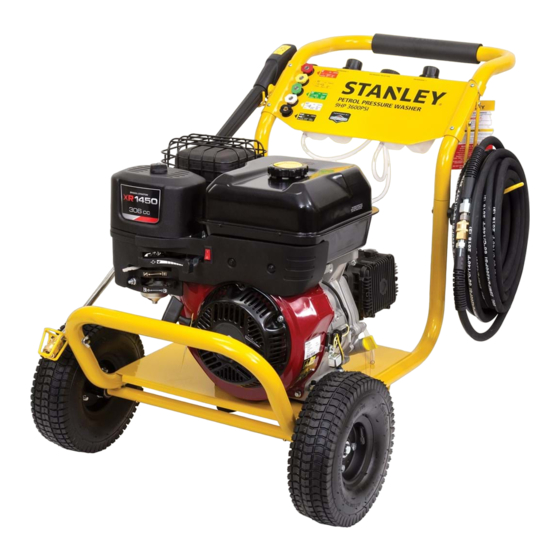

- Page 1 PETROL PRESSURE WASHER 9HP 3600PSI MODEL NO. For service, spare parts or product information, SXPW9053BS please contact Smart Marketing Group Pty. Ltd. AUST. 1300 660 457 N.Z. 0800 474 876...
-
Page 2: Table Of Contents
SUGGESTED APPLICATIONS CONTENTS These are some suggested applications where you could Section Page use your pressure washer: • Concrete driveway Contents • Paved area Suggested Applications • Car • Motorbike Introduction • Truck • Wall Warranty 3 – 4 • Garden feature General Safety Instructions 5 –... -
Page 3: Introduction
INTRODUCTION What is covered. • Manufacturing fault or defect. Dear Customer, Thank you for purchasing this pressure washer which has How to claim under this warranty. passed through our extensive quality assurance processes. • Call customer service. Every care has been taken to ensure that it reaches you •... - Page 4 COMPLETE WARRANTY STATEMENT – PRESSURE WASHER As soon as you have purchased the pressure washer, we Rust and corrosion are not covered under this warranty. recommend that you check to make sure it is intact and If a warranty fault is found, the freight cost will be credited that you read the operating instructions carefully before to the owner.
-
Page 5: General Safety Instructions
LUBRICATION OF ENGINE WORK AREA Work areas and benches should be kept tidy. Cluttered OIL (CHECK DAILY - ONLY USE 4 STROKE MOTOR OIL) benches and work areas can cause accidents. Floors should This pressure washer is fitted with a Briggs & Stratton be kept clean and free from rubbish. - Page 6 MAINTAIN YOUR PRESSURE WASHER RISK OF DAMAGE WITH CARE Damage may occur if nozzle is used too close to appliance being cleaned. Always trial test the pressure washer on an When not using your pressure washer ensure the fuel inconspicuous part of the appliance. Beware poor paint choke is ‘OFF’.
- Page 7 PERSONAL SAFETY Do Not Over Reach Do not over reach. Keep a proper footing and maintain Clothing your balance at all times. Avoid using abnormal stances Do not wear loose clothing, jewellery or anything that and awkward body positions. could get caught in moving machinery. Stay Alert Hair Watch what you are doing, use common sense and...
-
Page 8: Specific Safety Instructions
SPECIFIC SAFETY INSTRUCTIONS • Do not attempt to modify the pressure washer, guards or the supplied accessories in any way. Warning! Do not use the pressure washer in areas • Your pressure washer is factory set, NEVER attempt to where there is a risk of explosion or fire from combustible speed it up as this could endanger the user and damage materials. -
Page 9: Fuel & Oil Information
IMPORTANT FUEL - ONLY USE UNLEADED 91 PETROL (ULP - 91RON) - NO ETHANOL Fuel tank capacity – 5.3 litres (5.3L) Use of incorrect fuel and/or oil may damage the pressure washer and will not be covered under warranty. Do not use E10 or any type of ethanol fuel as this will damage the pressure washer and will not be covered under warranty. -
Page 10: Components And Controls
PIC. 1 COMPONENTS AND CONTROLS Pic. 1 1. Handle 2. Nozzles RED - Pin Point YELLOW - 15° GREEN - 25° WHITE - 40° BLACK - Detergent 3. Gun and trigger 4. Fuel tank 5. Lance 6. Recoil Starter 7. Wheel 8. -
Page 11: Assembly Instructions
UNPACKING & ASSEMBLY PIC. 2 Unpacking Note: Carefully unpack your pressure washer. This pressure washer is bulky and heavy, two (2) person lift required. Dispose of all packing material in an environmentally responsible manner. Open carton, gently lift the pressure washer clear of the carton and packaging, this may require 2 people. - Page 12 Hose to Pump (PIC. 5) 1. Attach the high pressure hose to the pump. Pull back PIC. 5 collar and push male connector in fully. Release collar. Ensure that the hose does not touch the muffler or goes over the top of the fuel tank. 2.
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS SELECTING NOZZLE Pre - Operation Preparation Black Note: If unit has previously been used, the motor, muffler This nozzle is for low pressure and for use with detergent and exhaust may still be hot enough to burn. Always tube and filter. - Page 14 Adding Lubricating Oil PIC. 9A Always use clean fresh oil as specified on page 9. Incorrect or old oil can cause the pressure washer to run rough and damage the motor; this will not be covered by warranty. 1. Ensure that engine is OFF when filling oil. 2.
- Page 15 STARTING YOUR PRESSURE WASHER PIC. 11 1. Check oil level. 2. Check and fill fuel. 3. Connect garden hose to cold water source. CHOKE Do not turn on! FUEL ON 4. Connect garden hose to garden connection on pump. 5. Select nozzle, see page 13. 6.
- Page 16 TAKING A BREAK DURING USE CLEANING If taking a break of more than 2 minutes during use you NEVER use this pressure washer to clean itself. Damage must turn the pressure cleaner off. Refer page 15 for how caused by cleaning the pressure washer with its own to do this.
-
Page 17: Cleaning Tips
CLEANING TIPS Cars, Boats & Motorcycles - with or without detergent Deck Cleaning - with or without detergent Pre-rinse vehicle with fresh water. If using vehicle wash, Pre-rinse deck and surrounding area with fresh water. If place detergent suction tube directly into cleaning solution using deck wash, place detergent suction tube directly into and apply to surface at low pressure. -
Page 18: Maintenance
MAINTENANCE INFORMATION PIC. 18 If scheduled maintenance is NOT carried out then this will void your warranty. Use the Service Log on page 22 to keep track of the regular servicing. Ensure that the authorised service agent has dated, signed and stamped this log to ensure your warranty is not void. - Page 19 MAINTENANCE SCHEDULE Engine NOTE: If unsure how to do any of these checks please OIL (CHECK DAILY - ONLY USE 4 STROKE MOTOR OIL) contact our service centre or an authorised service agent. This pressure washer is fitted with a Briggs & NOTE: When performing any maintenance or servicing Stratton engine.
-
Page 20: Trouble Shooting
TROUBLE SHOOTING POSSIBLE CAUSE SUGGESTED FIX Engine will not start No or low fuel in the fuel tank Fill fuel tank No or low oil in sump Fill oil sump Fuel/Engine lever is OFF Turn fuel/engine lever ON Choke is set to RUN Slide choke to START Turn water tap off, pull trigger to release water from pump. -
Page 21: Parts Diagram
PARTS DIAGRAM User replaceable parts listed below. All other parts must be serviced/replaced by an authorised service agent. Part Description Part No. Gun - trigger & Lance 84 PW9033GT High pressure hose 15m QC 84 PW9033HPH Nozzle yellow 84 PWNOZ Nozzle black 84 PWNOZ Nozzle red... -
Page 22: Service Log
This Service is to be complete within 50 hours or This Service is to be complete within 100 hours or 3 months of purchase, which ever comes first. 6 months of purchase, which ever comes first. Replace Check & Adjust Replace Replace Air filter... -
Page 23: Technical Information
This Service is to be complete within 450 hours or This Service is to be complete within 500 hours or 27 months of purchase, which ever comes first. 30 months of purchase, which ever comes first. Replace Check & Adjust Replace Check &... -
Page 24: Contact Information
For any queries or assistance call Customer Service AUST. 1300 660 457 NZ 0800 474 876 Hours of operation: Monday to Friday 8.00am - 5.00pm AEST Do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the warranty, stated on page 3.
