Briggs & Stratton SpeedClean 020212-0 Owner's Manual

Briggs & Stratton SpeedClean 020212-0 Owner's Manual

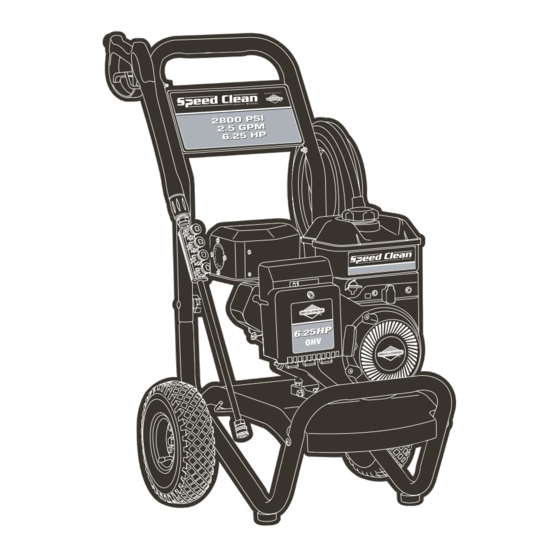

2800 psi
Table of Contents

Advertisement

Available languages

Available languages

2800
PSI
Owner's Manual / Manual del Propietario
CAUTION
PRECAUCIÓN
Before using this product, read this manual and follow all
Antes de utilizar el producto, lea este manual y siga todas
Safety Rules and Operating Instructions.
las Reglas de Seguridad e Instrucciones de Uso.
Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Call: Pressure Washer Helpline
Llame: Línea Directa del Lavador a Presión - 1-800-743-4115 M-F 8-5 CT
web: www.briggsandstratton.com
SpeedClean™ is a trademark of Briggs & Stratton Power Products.
SpeedClean™ es una marca registrada de Briggs & Stratton Power Products.
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON,WISCONSIN, U.S.A.
Model No. 020212-0 (2,800 PSI Pressure Washer) Manual No. 194445GS Revision 2 (04/12/2005)

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SpeedClean 020212-0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Briggs & Stratton SpeedClean 020212-0

  • Page 1 SpeedClean™ is a trademark of Briggs & Stratton Power Products. SpeedClean™ es una marca registrada de Briggs & Stratton Power Products. BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC JEFFERSON,WISCONSIN, U.S.A. Model No. 020212-0 (2,800 PSI Pressure Washer) Manual No. 194445GS Revision 2 (04/12/2005)
  • Page 2: Table Of Contents

    Safety Rules........2-4 Know Your Pressure Washer......5 Assembly.
  • Page 3 SpeedClean™ 2800 PSI Pressure Washer WHEN ADDING FUEL • Turn pressure washer OFF and let it cool at least 2 minutes before removing gas cap. • Fill fuel tank outdoors. • DO NOT overfill tank. Allow space for fuel expansion.
  • Page 4 • DO NOT touch hot surfaces. • Allow equipment to cool before touching. • The pressure washer must be at least 5 feet from structures having combustible walls and/or other combustible materials. • Keep at least 3 feet of clearance on all sides of pressure washer for adequate cooling, maintenance and servicing.
  • Page 5: Know Your Pressure Washer

    KNOW YOUR PRESSURE WASHER Read this owner’s manual and safety rules before operating your pressure washer. Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.
  • Page 6: Assembly

    WASHER FOR USE If you have any problems with the assembly of your pressure washer or if parts are missing or damaged, call the pressure washer helpline at 1-800-743-4115. If calling for assistance, please have the model, revision, and serial number from the data tag available.
  • Page 7: Add Engine Oil And Fuel

    (Figure 3).Tighten by hand. SpeedClean™ 2800 PSI Pressure Washer Add Engine Oil and Fuel • Place pressure washer on a level surface. Any attempt to crank or start the engine before it has been properly filled with the recommended oil will result in equipment failure.
  • Page 8: Assembly

    • Always wear eye protection when using this equipment or in vicinity of where equipment is in use. Inspect inlet screen, • Before starting the pressure washer, be sure you are wearing DO NOT use if adequate eye protection. damaged, clean if dirty.
  • Page 9: How To Start Pressure Washer

    • DO NOT operate pressure washer inside any building or enclosure. The pressure washer must be at least 5 ft. (152 cm) from structures having combustible walls and/or other combustible materials. Leave at least 3 ft. (92 cm) all around pressure washer including overhead, for adequate cooling, maintenance and servicing.
  • Page 10: How To Stop Your Pressure Washer

    • DO NOT touch hot surfaces. • Allow equipment to cool before touching. • The pressure washer must be at least 5 feet from structures having combustible walls and/or other combustible materials. • Keep at least 3 feet of clearance on all sides of pressure washer for adequate cooling, maintenance and servicing.
  • Page 11: Low Pressure

    DO NOT allow detergent to dry on (prevents streaking). IMPORTANT: You must flush the chemical injection system after each use by placing the filter into a bucket of clean water, then run the pressure washer in low pressure for 1-2 minutes. CAUTION...
  • Page 12: Pressure Washer Rinsing

    • Operate this unit on a stable surface. • Be extremely careful if you must use the pressure washer from a ladder, scaffolding or any other relatively unstable location. • Firmly grasp spray gun with both hands when using high pressure spray to avoid injury if gun kicks back.
  • Page 13: Specifications

    Shipping Weight ......78 lbs. GENERAL MAINTENANCE RECOMMENDATIONS The pressure washer warranty does not cover items that have been subjected to operator abuse or negligence.To receive full value from the warranty, the operator must maintain the pressure washer as instructed in this manual.
  • Page 14: Nozzle Maintenance

    Purchase an O–Ring/Maintenance Kit, part number 191922GS by contacting the nearest authorized service center. It is not included with the pressure washer.This kit includes replacement o-rings, rubber washer and water inlet filter. Refer to the instruction sheet provided in the kit to service your unit’s o-rings.
  • Page 15: Engine Maintenance

    (Figure 15). Figure 15 - Changing Pump Oil SpeedClean™ 2800 PSI Pressure Washer Tilt pressure washer to drain oil into an approved container until it drips slowly from the pump. Tilt pressure washer in opposite direction and empty premeasured pump oil bottle into same opening (a small funnel may be helpful).
  • Page 16: Storage

    30 days, follow this procedure: Flush detergent siphoning tube by placing filter into a pail of clean water while running pressure washer in low pressure mode. Flush for one to two minutes. Shut off engine and let it cool, then remove high pressure and garden hoses.
  • Page 17: Troubleshooting

    Detergent fails to mix with spray. Engine shuts down during operation. SpeedClean™ 2800 PSI Pressure Washer Cause Low pressure spray tip installed. Water inlet is blocked. Inadequate water supply. Inlet hose is kinked or leaking.
  • Page 18: Notes

    SpeedClean™ 2800 PSI Pressure Washer NOTES...
  • Page 19: Warranty

    BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC EQUIPMENT OWNER WARRANTY POLICY Effective September 1, 2004 replaces all undated Warranties and all Warranties dated before September 1, 2004 Briggs & Stratton Power Products Group, LLC will repair or replace, free of charge, any part(s) of the equipment that is defective in material or workmanship or both.
  • Page 20: Descripción Del Equipo

    CONSERVE ESTAS INSTRUCCIONES TABLA DE CONTENIDOS Reglas De Seguridad ....... . 20-22 Conozca Su Maquina Lavadora De Presion.
  • Page 21 Lavadora de Presión 2800 PSI de SpeedClean™ ADVERTENCIA Al motor funcionar, se produce monóxido de carbono, un gas inodoro y venenoso. El respirar el monóxido de carbono, producirá náusea, desmayo o la muerte. Algunas sustancias químicas o los detergentes pueden ser perjudiciales si inhalados o ingeridos, causando la náusea severa, desmayando o para envenenar.
  • Page 22 ADVERTENCIA Los motores al funcionar producen calor. La temperatura del silenciador y de las áreas cercanas puede alcanzar o pasar los 150ºF (65ºC). Quemaduras severas pueden ocurrir al hacer contacto. Los residuos como hojas, hierba, maleza, etc. se pueden inflamar. •...
  • Page 23: Conozca Su Maquina Lavadora De Presion

    Lavadora de Presión 2800 PSI de SpeedClean™ CONOZCA SU MAQUINA LAVADORA DE PRESION Lea el manual del propietario y las reglas de seguridad antes de poner en marcha su máquina lavadora a presión. Compare las ilustraciones con su máquina lavadora a presión para familiarizarse con las ubicaciones de los diferentes controles y ajustes. Guarde este manual para referencias futuras.
  • Page 24: Conecte El Manubrio

    MONTAJE IMPORTANTE: Lea totalmente el manual del propietario antes que intente ensamblar u operar su lavador a presión. Remueva el Lavador a Presión del Empaque • Remueva la bolsa con las piezas, incluidas con el lavador de presión. • Corte dos esquinas en los extremos del cartón desde la parte superior hasta la parte inferior, de tal manera que el pánel pueda ser doblado en forma plana, luego quite todo el material de embalaje.
  • Page 25: Conecte La Manguera Y El Suministro De Agua A La Bomba

    Lavadora de Presión 2800 PSI de SpeedClean™ Inserte el perno del soporte a través de los orificios desde fuera de la unidad y sujete una perilla de plástico desde el interior de la misma unidad.Apriete manualmente (Figura 17). Figura 17 - Sujetar el Manubrio Inserte el "L"...
  • Page 26 NOTA: Retire y deseche todos los tapones de transporte de la bomba antes de conectar las mangueras. Conecte el otro extremo de la manguera de alta presión a la salida de alta presión de la bomba (Figura 20).Apriete a mano. Figura 20 - Conectar la Manguera de Alta Presión a la Toma de Agua Antes de que conecte la manguera de jardín a la entrada de...
  • Page 27: Operación

    Lavadora de Presión 2800 PSI de SpeedClean™ CÓMO USAR SU LAVADORA A PRESIÓN Si tiene problemas operando su máquina lavadora a presión, por favor llame a la línea de ayuda para máquinas lavadoras a presión al 1-800-743-4115. Ubicación del Lavadora a Presión Espacio Libre Alrededor del Lavadora a Presión ADVERTENCIA Al motor funcionar, se produce monóxido de...
  • Page 28: Cómo Usar Las Puntas De Rocío

    Coloque el pasador de seguridad al gatillo de la pistola rociadora (Figura 25). Figura 25 — La Pistola Rociadora con el Pasador de Seguridad en su Posición 10. Pour démarrer le moteur, suivez les instructions qui figurent dans le manuel d'utilisation. Consulte también la etiqueta de instrucciones situada en la limpiadora a presión.
  • Page 29 Lavadora de Presión 2800 PSI de SpeedClean™ Figura 26 — Rocíe los Modelos del Rocío de Punta La Presión Baja aplicar químicos La Presión Alta 40º Blanca 15º Amarilla Desplace hacia atrás el anillo, inserte la nueva punta de rociado y suelte el anillo.Tire de la punta de rociado para comprobar que está...
  • Page 30: Sistema De Enfriamiento Automático (Alivio Térmico)

    Enjuage de la Máquina Lavadora a Presión Después de haber aplicado el detergente, refriegue la superficie y enjuagela de la siguiente manera: Coloque el cerrojo de seguridad a la pistola de rociado. Retire la puntas de rocío negra para químicos de la extensión para boquillas.
  • Page 31: Mantenimiento

    ESPECIFICACIONES Presión de Salida ......2800 PSI Promedio de Flujo ... 2.5 galones por minuto (gpm) Detergente Use el detergente adecuado para lavadores a presión Temperatura del Suministro de Agua .
  • Page 32: Mantenimiento De La Boquilla

    Retire la pistola y la extensión para boquillas de la manguera de alta presión. Retire la extensión para boquillas de la pistola y retire el anillo 'o' y el colador de la extensión para boquillas. Lave el colador, pistola y extensión para boquillas con agua limpia para eliminar toda clase de residuos.
  • Page 33: Mantenimiento Del Motor

    Lavadora de Presión 2800 PSI de SpeedClean™ Mantenimiento de la Bomba Cambio del aceite de la bomba Cambie el aceite cada 50 horas o una vez al año, lo que suceda antes. NOTA: Debe adquirir una botella de aceite para la bomba previamente medido, Nº...
  • Page 34: Almacenamiento

    PREPARANDO LA UNIDAD PARA SU ALMACENAMIENTO El agua no debe permanecer en la unidad por un largo periodo de tiempo. Los sedimentos o minerales se pueden depositar en las piezas de la bomba y "congelar" la acción de la bomba. Si usted no piensa usar el lavador a presión por mas de 30 días, siga este procedimiento: Vacíe el tubo de detergente, colocando el filtro en un envase...
  • Page 35: Reparacion De Averias

    Lavadora de Presión 2800 PSI de SpeedClean™ REPARACION DE AVERIAS Problema La bomba presenta los siguientes problemas: no produce presión, produce una presión errada, traqueteo, pérdida de presión, bajo volumen de agua. El detergente no se mezcla con el rociado. El motor se apaga durante la operación.
  • Page 36: Garantia

    POLÍTICA DE GARANTÍA PARA EL PROPIETARIO DE EQUIPOS BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC Fecha de entrada en vigor: 1 de Septiembre de 2004. Sustituye a todas las garantías sin fecha y a las de fecha anterior al 1 de Septiembre de 2004 Briggs &...
