Parts List - Realtree RTLS-314 Instruction & Safety Manual

MODEL: RTLS-314
16' Extra Wide Deluxe Single Man Ladderstand
• Always Wear a Safety Harness with this Product
• Weight Limit: 300 lbs.

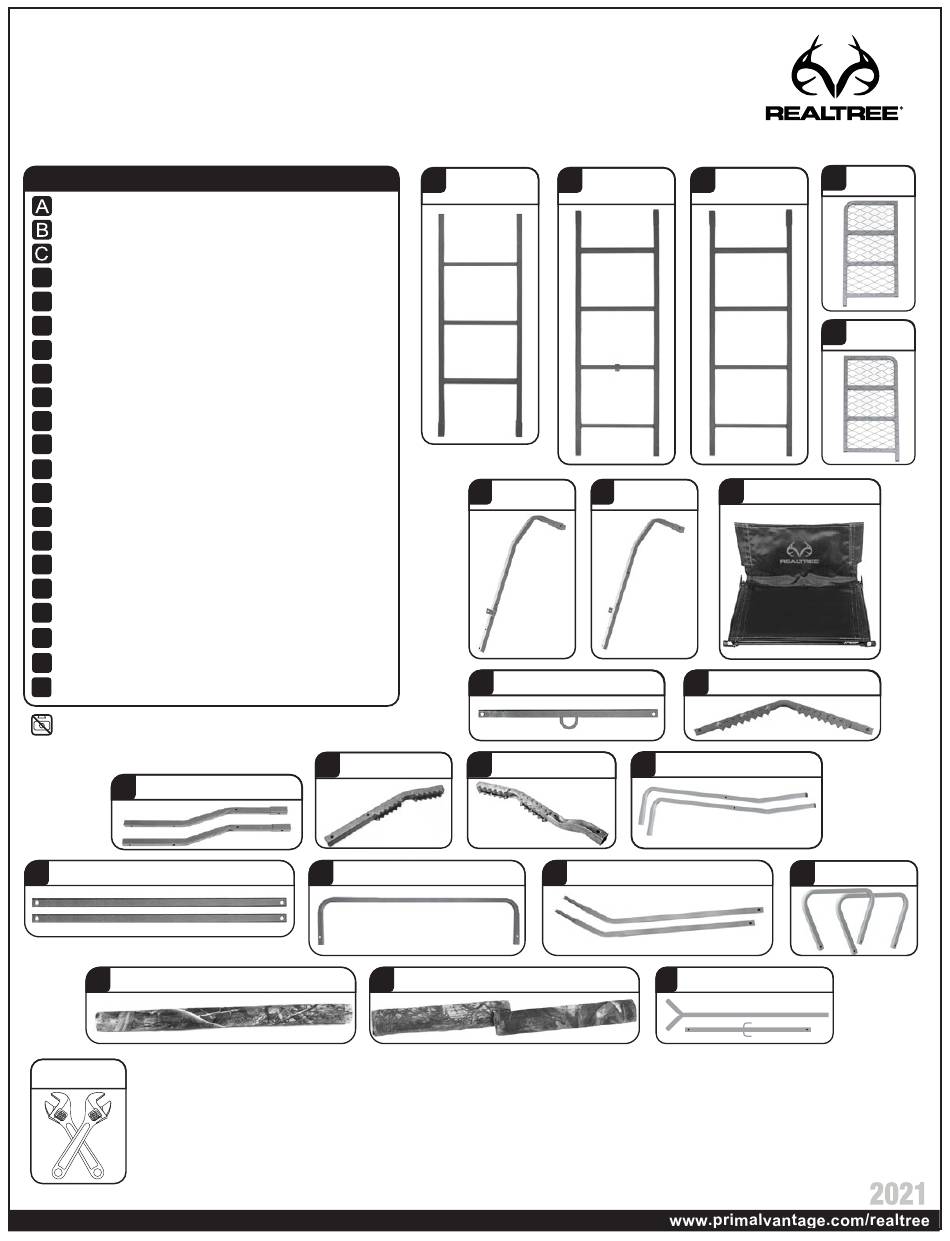

PARTS LIST

1 Top Ladder Section...................Part # RTL-314
1 Middle Ladder Section............. Part # RML-314
1 Bottom Ladder Section.............Part # RBL-314
D
1 Foot Platforms (Left).................Part # RFPL-314
1
D
1 Foot Platforms (Right).............. Part # RFPR-314
2
E
1 Handle Rail (Left)..............,,......Part # RHRL-314
1
E
1 Handle Rail (Right)..,........,........Part # RHRR-314
2
F
1 Seat Assembly..........................Part # RSA-314
G
1 Tree Brace................................Part # RLY-314
H
1 Seat Stabilizer............. .............Part # RTCB-314
I
2 Ladder Yokes.............. .............Part # RLY-314
J
1 Left Ladder Jaw........................ Part # RLLJ-310
K
1 Right Ladder Jaw......................Part # RRLJ-310
L
2 Back Rest Supports............. .....Part # RBRS-314
M
2 Platform Supports.....................Part # RPS-314
N
1 Shooting Rail..............................Part # RSR-314
O
2 Shooting Rail Arms.................... Part # RSRA-314
P
2 Arm Rest.................................... Part # RAR-314
Q
1 Shooting Rail Cover Pad............Part # RSRC-314
R
2 Arm Rest Cover Pads.................Part # RAC-314
S
1 Stabilizer Bar.............................. Part # RSB-100
= NOT PICTURED IN THIS MANUAL
I
Ladder Yokes (2)
M
Platform Support (2)
Q
Shooting Rail Cover Pad (1)
Tools Required
Adjustable Wrench
Distributed by Acheson Harriman Swan, LLC, 2407 W. Euclid Ave., Littleton, CO 80120
Customer Service Department 1-866-972-6168
• Practice Using at Ground Level
• Tree Size: 9"-18" diameter
A
Top Ladder
A
Section (1)
E
1
H
K
J
Left Ladder Jaw (1)
N
Shooting Rail (1)
R
Armrest Cover Pads (2)
B
Middle Ladder
Section (1)
Left Handle E Right Handle
2
Rail (1) Rail (1)
Seat Stabilizer (1)
L
Right Ladder Jaw (1) Back Rest Support (2)
O
Shooting Rail Arms (2)
S
Left Foot
D
C
Bottom Ladder
1
Platform (1)
Section (1)
Right Foot
D
2
Platform (1)
F
Seat Assembly (1)
G
Tree Brace (1)
P
Arm Rests (2)
Stabilizer Bar (1)
©2021 (rev. 1/21)
