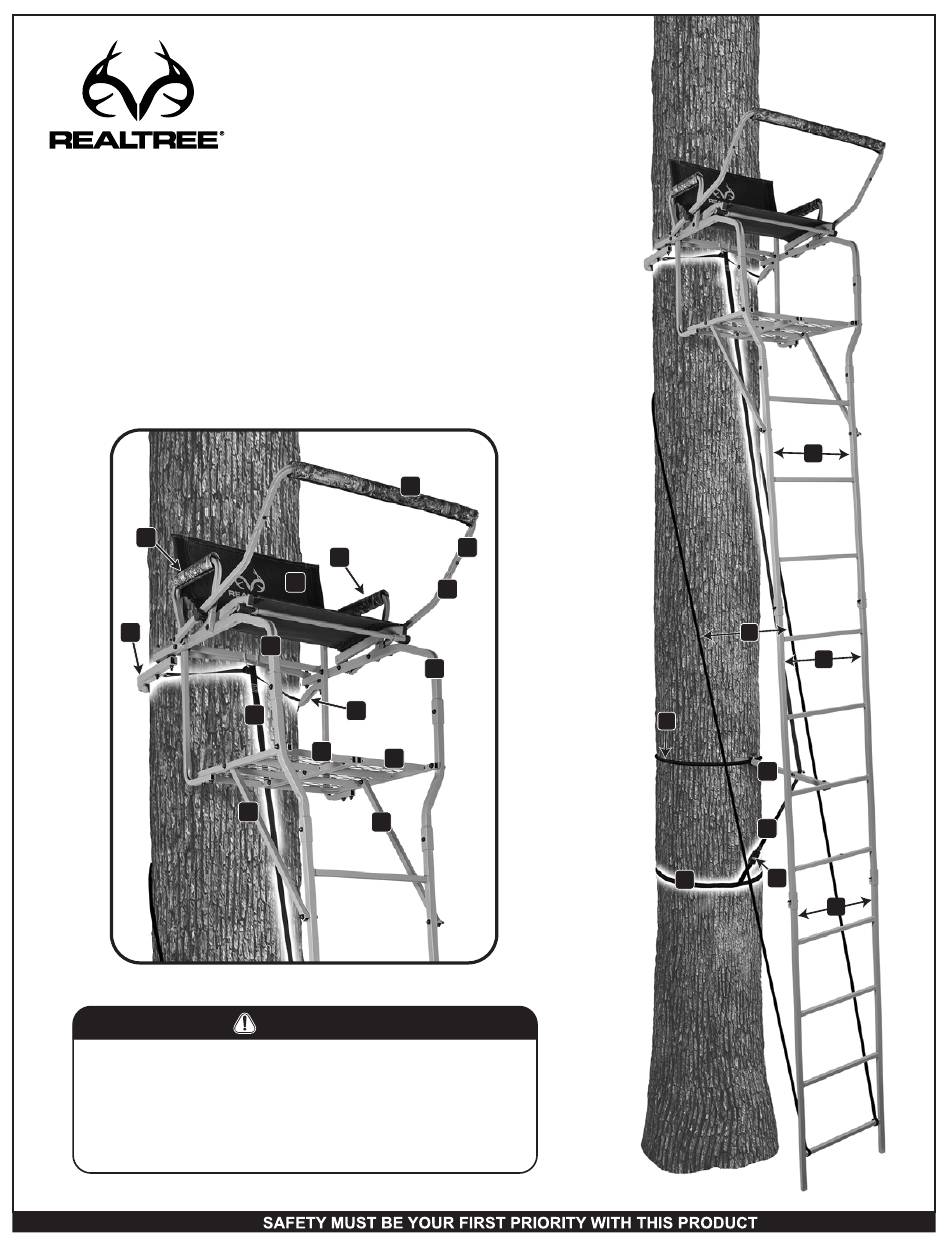

MODEL: RTLS-314
16' Extra Wide Deluxe Single Man Ladderstand
• Always Wear a Safety Harness with this Product
• Weight Limit: 300 lbs.
• Practice Using at Ground Level
• Tree Size: 9"-18" diameter
Instruction & Safety Manual
R
J
Every year serious injury or death can occur from hunting related accidents. To ensure
your safety, please COMPLETELY read and follow this safety manual and ALL warning labels
BEFORE assembling, installing or utilizing this product.
DO NOT USE THIS PRODUCT BEFORE FULLY UNDERSTANDING ALL SAFETY
WARNINGS AND INSTRUCTIONS. If you have questions, are unsure about any information
or need additional information concerning your product, contact our customer service
department at 1-866-972-6168 or visit www.primalvantage.com/realtree. Keep and maintain
this safety and instruction manual in a safe location for future reference.
