MODEL: RTLS-310

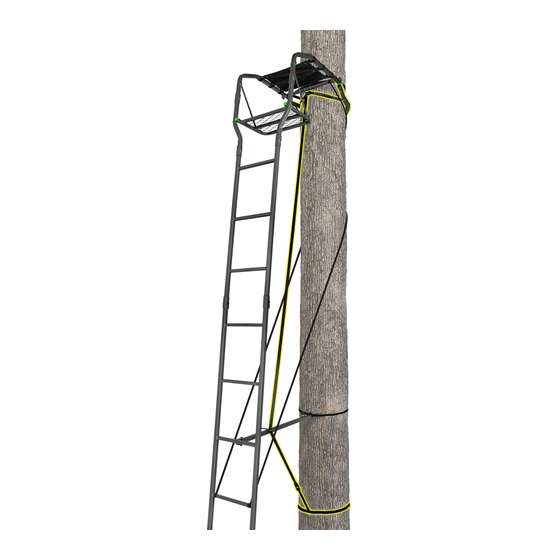

15' Ladderstand
Instruction & Safety Manual
M
O
Every year serious injury or death can occur from hunting related accidents. To ensure your safety, please COMPLETELY read and follow this safety
manual and ALL warning labels BEFORE assembling, installing or utilizing this product.
DO NOT USE THIS PRODUCT BEFORE FULLY UNDERSTANDING ALL SAFETY WARNINGS AND INSTRUCTIONS. If you have questions, are unsure
about any information or need additional information concerning your product, contact our customer service department at 1-866-972-6168 or visit
www.primalvantage.com/realtree. Keep and maintain this safety and instruction manual in a safe location for future reference.
Distributed by Acheson Harriman Swan, LLC, 2407 W. Euclid Ave., Littleton, CO 80120
J
K
D
F
G
E
H
A
W A R N I N G
S
B
U
R
L
O
P
N
©2021 (rev. 1/21)

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTLS-310 and is the answer not in the manual?

Questions and answers

Related Manuals for Realtree RTLS-310

Summary of Contents for Realtree RTLS-310

  • Page 1 DO NOT USE THIS PRODUCT BEFORE FULLY UNDERSTANDING ALL SAFETY WARNINGS AND INSTRUCTIONS. If you have questions, are unsure about any information or need additional information concerning your product, contact our customer service department at 1-866-972-6168 or visit www.primalvantage.com/realtree. Keep and maintain this safety and instruction manual in a safe location for future reference. ©2021 (rev. 1/21)
  • Page 2 Treestand Safety Warnings Please read the following instruction manual and warnings labels completely before utilizing this product. Failure to understand and execute the instructions and warnings may result in serious injury or death. In the event of an accident, have a plan for rescue, including the use of devices that may be easily reached while suspended.
  • Page 3 Treestand Safety Warnings NEVER adjust your stand while in use. Practice the attachment of this treestand at ground level before using in a hunting environment. ALWAYS ensure that you and your treestand are safely secured to a healthy tree. Your tree stand MUST be attached tightly to the tree and secured in place. If the stand is not secure, it may shift while in use, resulting in serious injury or death.

  • Page 4: Proper Care And Maintenance

    Choosing A Safe Tree • ALWAYS thoroughly inspect the tree before installing your product. DO NOT install your TREE/LADDER STAND onto any dead or unsafe tree, telephone utility pole, structural column, or man-made structure. Doing so may result in serious injury or death. •...
  • Page 5 MODEL: RTLS-310 1 Top Ladder Section....Part # WTL-304 15’ Ladderstand 1 Middle Ladder Section... Part # WML-304 1 Bottom Ladder Section..Part # WBL-304 1 Sling Seat......Part # RTS-310 1 Foot Platform......Part # WFP-300 2 Handle Rails......Part # WHR-304...
  • Page 6 Model: RTLS-310 Assembly Instructions Page 1 15’ Ladderstand Slide Sling Seat over top side of both Handle Rails Attach Tree Brace to the top of each Handle Rail using 2-M8x60mm bolts. Attach the Seat Stabilizer on the top of the Handle Rails...
  • Page 7 Model: RTLS-310 Assembly Instructions Page 2 15’ Ladderstand Attach one end of the Platform Support to the Attach Foot Platform to the inside of Yokes using OUTSIDE of Foot Platform using 1-M8x60mm bolts on each side. 1-M8x40mm bolt for each side. Attach the other...
  • Page 8 Model: RTLS-310 Assembly Instructions Page 2 15’ Ladderstand Insert top end of Middle Ladder Insert 1 - Quickclip through Section into the sleeved end the hole on the sleeve, and of Top Ladder Section with through the ladder sections on the bracket facing towards the each side of the ladder.
  • Page 9 Model: RTLS-310 Installation Strap Instructions 15’ Ladderstand Insert end of strap through the loop. Pull to tighten. Continue with Place looped end of strap these steps to install the other under platform. strap on the other strap on the other side of the platform.
  • Page 10 Model: RTLS-310 Ratchet Strap Instructions 15’ Ladderstand You MUST follow these instructions prior to installation Insert Ratchet through loop Place looped end of Ratchet under platform Pull to tighten Pull to tighten Insert strap through loop Place looped end of strap...

  • Page 11: Installation Instructions

    Model: RTLS-310 Installation Instructions Page 1 15’ Ladderstand One person will stand at the base of ladder with Position bottom of stand 4-5 feet from base of tree. his/her foot on the bottom rung while holding installation straps. This will prevent tree stand from sliding.
  • Page 12 Model: RTLS-310 Installation Instructions Page 2 15’ Ladderstand After the ladder stand has been Tie one end of Tiedown Rope Cross Installation Straps secured to the tree with the installation to the inner part of Stabilizer Bar behind tree. Attach to the top straps, and the stabilizer bar has been near the flanged end.
  • Page 13 Model: RTLS-310 Installation Instructions Page 3 15’ Ladderstand NOTE: The Ladder Jaws are designed to wrap around a tree trunk when Vertical Jaw Assembly Vertical Strap is tightened. Before engaging the Ladder Jaw Mechanism: 1) Check that the Ladder stand is properly installed on correct sized tree.
  • Page 14 W A R N I N G Failure to follow all warnings listed below could result in serious injury or death. ALWAYS read and understand all warnings and instructions DO NOT use this tree stand while under the influence of NEVER leave the ground without checking every ladder before each use of this product.
