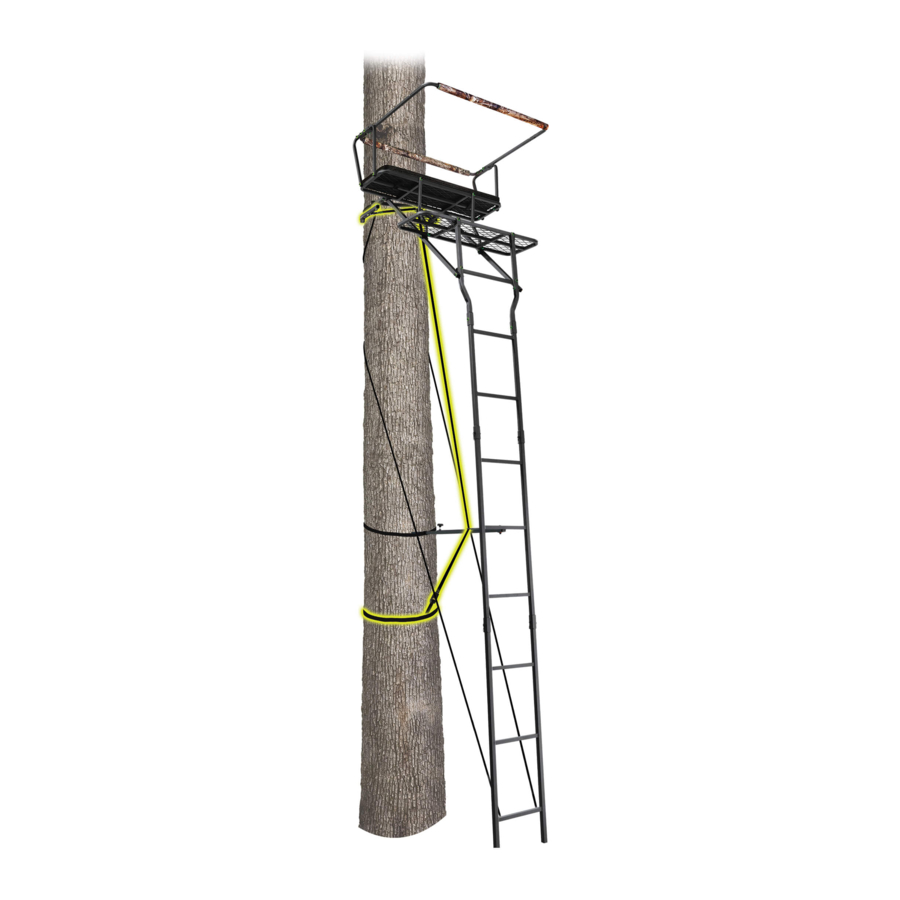

MODEL: RTLS-503
15' Two-man Ladderstand
• Always Wear a Safety Harness with this Product
• Weight Limit: 500 lbs. Two Person, 300 lbs. Single Person
• Practice Using at Ground Level
• Tree Size: 9"-18" diameter
Instruction & Safety Manual
Q
F
D
G
X
U
K
Every year serious injury or death can occur from hunting related accidents. To ensure
your safety, please COMPLETELY read and follow this safety manual and ALL warning labels
BEFORE assembling, installing or utilizing this product.
DO NOT USE THIS PRODUCT BEFORE FULLY UNDERSTANDING ALL SAFETY
WARNINGS AND INSTRUCTIONS. If you have questions, are unsure about any information
or need additional information concerning your product, contact our customer service
department at 1-866-972-6168 or visit www.primalvantage.com/.realtree. Keep and maintain
this safety and instruction manual in a safe location for future reference.
Distributed by Acheson Harriman Swan, LLC, 2407 W. Euclid Ave., Littleton, CO 80120
J
R
H
M
W A R N I N G
R
I
P
N
E
L
Z
S
O
Y
AA
Z
T
W
©2021 (rev. 1/21)
Advertisement
Related Manuals for Realtree RTLS-503
Summary of Contents for Realtree RTLS-503
- Page 1 WARNINGS AND INSTRUCTIONS. If you have questions, are unsure about any information or need additional information concerning your product, contact our customer service department at 1-866-972-6168 or visit www.primalvantage.com/.realtree. Keep and maintain this safety and instruction manual in a safe location for future reference.
- Page 2 Treestand Safety Warnings Please read the following instruction manual and warnings labels completely before utilizing this product. Failure to understand and execute the instructions and warnings may result in serious injury or death. In the event of an accident, have a plan for rescue, including the use of devices that may be easily reached while suspended.
- Page 3 Treestand Safety Warnings NEVER adjust your stand while in use. Practice the attachment of this treestand at ground level before using in a hunting environment. ALWAYS ensure that you and your treestand are safely secured to a healthy tree. Your tree stand MUST be attached tightly to the tree and secured in place. If the stand is not secure, it may shift while in use, resulting in serious injury or death.
-
Page 4: Proper Care And Maintenance
Choosing A Safe Tree • ALWAYS thoroughly inspect the tree before installing your product. DO NOT install your TREE/LADDER STAND onto any dead or unsafe tree, telephone or utility pole, structural column, or man-made structure. Doing so may result in serious injury or death. •... - Page 5 MODEL: RTLS-503 15’ Two-man Ladderstand • Always Wear a Safety Harness with this Product • Weight Limit: 500 lbs. Two Person, 300 lbs. Single Person Seat Platform (1) • Practice Using at Ground Level • Tree Size: 9”-18” diameter Bottom Ladder...
- Page 6 Model: RTLS-503 Assembly Instructions Page 1 15 Ft. Two-man Ladderstand ALL PHOTOS TAKEN FROM FRONT VIEW UNLESS OTHERWISE NOTED Remove all contents from packaging and make sure all parts are present before attempting to assemble. Tighten all bolt connections by hand first and then when fully assembled, go back and tighten with a wrench.
- Page 7 Model: RTLS-503 Assembly Instructions Page 2 15 Ft. Two-man Ladderstand Attach Tree Brace to the top ends of the Platform Frames using 2-M8X60 bolts . Make sure the 2-M8X60 bolt inserted from the bottom up and the nut is on top.
- Page 8 Model: RTLS-503 Assembly Instructions Page 3 15 Ft. Two-man Ladderstand Attach Foot Platform to the bottom of the using 2-M8X55 bolts Seat Supports Attach top of Yokes to the Foot Platform using 2-M8 X 45 bolts Attach Ladder Step to the front of Ladder...
- Page 9 Model: RTLS-503 Assembly Instructions Page 4 15 Ft. Two-man Ladderstand Insert Shooting Rail Sides into front Shooting Rail and secure with 1-M6x25mm bolt on each side Attach Back Shooting Rail using 2-M6X50 bolts Attach combined Shooting Rail Attach Rail Covers...
-
Page 10: Side View
Model: RTLS-503 Assembly Instructions Page 5 15 Ft. Two-man Ladderstand SIDE VIEW Note: Nut side up here Attach Jaws to rear ends of Platform Frames using 2-M8x75mm bolts with washers center spacers located here Straight From strap passes From through this... -
Page 11: Rear View
Model: RTLS-503 Assembly Instructions Page 6 15 Ft. Two-man Ladderstand Rear View Attach the Ratchet Straps on either side of the top rear Tree Connection Brace on the rear of the Platform Frames (as shown above). (See Ratchet Strap Instructions for correct weaving). - Page 12 Model: RTLS-503 Ratchet Strap Instructions 15 Ft. Two-man Ladderstand You MUST follow these instructions prior to installation Pull to tighten. Insert Ratchet through loop. Place looped end of Ratchet under platform. Pull to tighten. Place looped end of strap Insert strap through loop.
- Page 13 Model: RTLS-503 Installation Strap Instructions 15 Ft. Two-man Ladderstand Insert end of strap through the loop. Pull to tighten. Continue with Place looped end of strap these steps to install the other under platform. strap on the other strap on the other side of the platform.
-
Page 14: Installation Instructions
Model: RTLS-314 Installation Instructions Page 1 15’ Extra Wide Deluxe Single Man Ladderstand One person will stand at the base of ladder with Position bottom of stand 4-5 feet from base of tree. his/her foot on the bottom rung while holding installation straps. - Page 15 Model: RTLS-503 Installation Instructions Page 2 15 Ft. Two-man Ladderstand After the ladder stand has been Attach the Stabilizer Buckle Cross Installation Straps secured to the tree with the installation Strap to the Stabilizer Bar behind tree. Attach to the top straps, and the stabilizer bar has been as shown below.
- Page 16 Model: RTLS-503 Installation Instructions Page 3 15 Ft. Two-man Ladderstand NOTE: The Ladder Jaws are designed to wrap around a tree trunk when Vertical Jaw Assembly Vertical Strap is tightened. Before engaging the Ladder Jaw Mechanism: 1) Check that the Ladder stand is properly installed on correct sized tree.
- Page 17 W A R N I N G Failure to follow all warnings listed below could result in serious injury or death. NEVER use this tree stand on a dead, leaning, loose ALWAYS read and understand all warnings and instructions DO NOT use this tree stand while under the influence of barked tree or on a utility pole as the tree may fall, break, before each use of this product.
