Summary of Contents for APART MASK12T
- Page 1 MASK12(T) Instruction manual...
- Page 3 MASK12(T) Instruction manual Features...

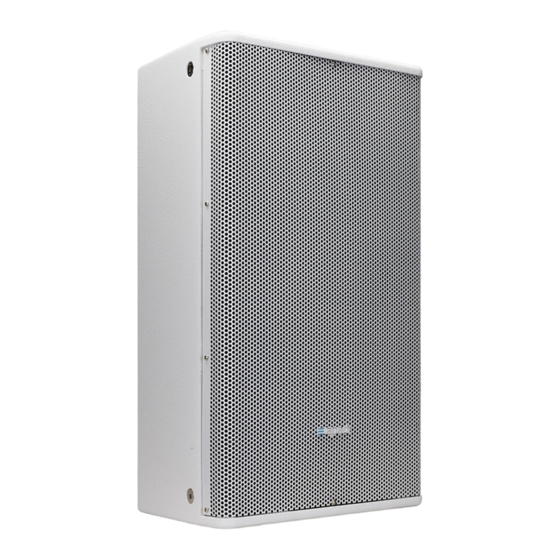

- Page 4 With a weight of only 19.2 kgs (8 ohm version) or 21.4 kgs (100 volt version), the speaker is easy to install. As usual, these Apart speakers will convince you in terms of sound quality, reliability and setup versatility. Paired with our Revamp series amplifiers, your sound system will be taken to a new level of performance.
-
Page 5: Safety Precautions
MASK12(T) Instruction manual Safety precautions • Everyone who is involved with the installation and/or operation of this product must read and understand all local safety regulations and instructions. • Keep this manual for future reference. • Avoid the presence of fire and flames and do not operate the product in the presence of heat sources, flammable liquids or gases. - Page 6 • Warning: this speaker is capable of producing high sound pressure levels that can cause permanent hearing loss. • Apart audio is not responsible for any damage or injury caused by improper installation or use of this product. • Repairs, servicing and electrical connections must be carried out...
- Page 7 MASK12(T) Instruction manual Speaker connection (8 ohm version) Input: the signal from a power amplifier must be connected to the ® input/link speakon connector. The connectors are equivalent and internally wired in parallel. Connector 1+ (positive) and 1- (negative) are used. 2+ and 2- are not connected.
- Page 8 FULL RANGE SPEAKER Speaker connection (100 volt version) Input: the signal from a power amplifier must be connected to the input/link euroblock connector. The connectors are equivalent and internally wired in parallel. Power select: set to 120W or 240W position according to your specific needs.
-
Page 9: Speaker Installation
MASK12(T) Instruction manual Speaker installation Install the speaker on the wall or ceiling using our optional U-bracket. Make sure the wall, ceiling, surface, structure and additional mounting hardware are capable of safely supporting the speaker’s weight. When suspending the speaker with chains, make sure to mount the M10 shoulder eye bolts (not supplied) on more than one side of the speaker. - Page 10 FULL RANGE SPEAKER Installation using MASK12PBRA-BL (optional) To install the MASK12 speaker on the bracket, remove the center M10 bolt from the bottom of the speaker. Attach the pole mount (supplied with the MASK12PBRA-BL) securely by fastening the mount on the speaker. Fix the wall plate on a sufficiently strong wall using all 6 mounting holes.
- Page 11 MASK12(T) Instruction manual For your safety, we strongly advise to secure the speaker using a safety chain. The chain and the necessary mounting hardware(eyebolts) are not supplied with this bracket. The chain and the attachment eyebolts should be capable of supporting at least 12 times the weight of the speaker.
- Page 12 70°V. When the speaker is mounted horizontally, we advise to rotate the high frequency horn by 90° to ensure the 90° horizontal dispersion angle. The Apart logo on the grille can also be rotated. In order to mount the speaker close to the ceiling, one side of the speaker is angled.
- Page 13 MASK12(T) Instruction manual rotate HF horn 90° for horizontal orientation...
- Page 14 FULL RANGE SPEAKER rotate logo 90° for horizontal orientation...
- Page 15 MASK12(T) Instruction manual Model name MASK12 (low imedance) 2-way professional fixed installation PA type speaker, dual vent bass reflex plywood, scratch resistant textured cabinet paint grille powder coated perforated steel grille 12” paper cone with 75 mm vented woofer voice coil, 180 mm ceramic magnet, die cast frame rotatable constant directivity horn high frequency horn...
- Page 16 FULL RANGE SPEAKER Model name MASK12T (100 volt) 2-way professional fixed installation PA type speaker, dual vent bass reflex plywood, scratch resistant textured cabinet paint grille powder coated perforated steel grille 12” paper cone with 75 mm vented woofer voice coil, 180 mm ceramic magnet,...
-
Page 17: Warranty Info
The warranty only concerns the spare parts and not the involved labor, transportation or any other costs. The product must be returned in the original packaging with the proof of purchase by an Audioprof authorized reseller. The general terms and conditions can be found here: http://www.apart-audio.com/conditions/General_Terms_and_Conditions_Audioprof.pdf... - Page 18 FULL RANGE SPEAKER Notes...
- Page 20 Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
