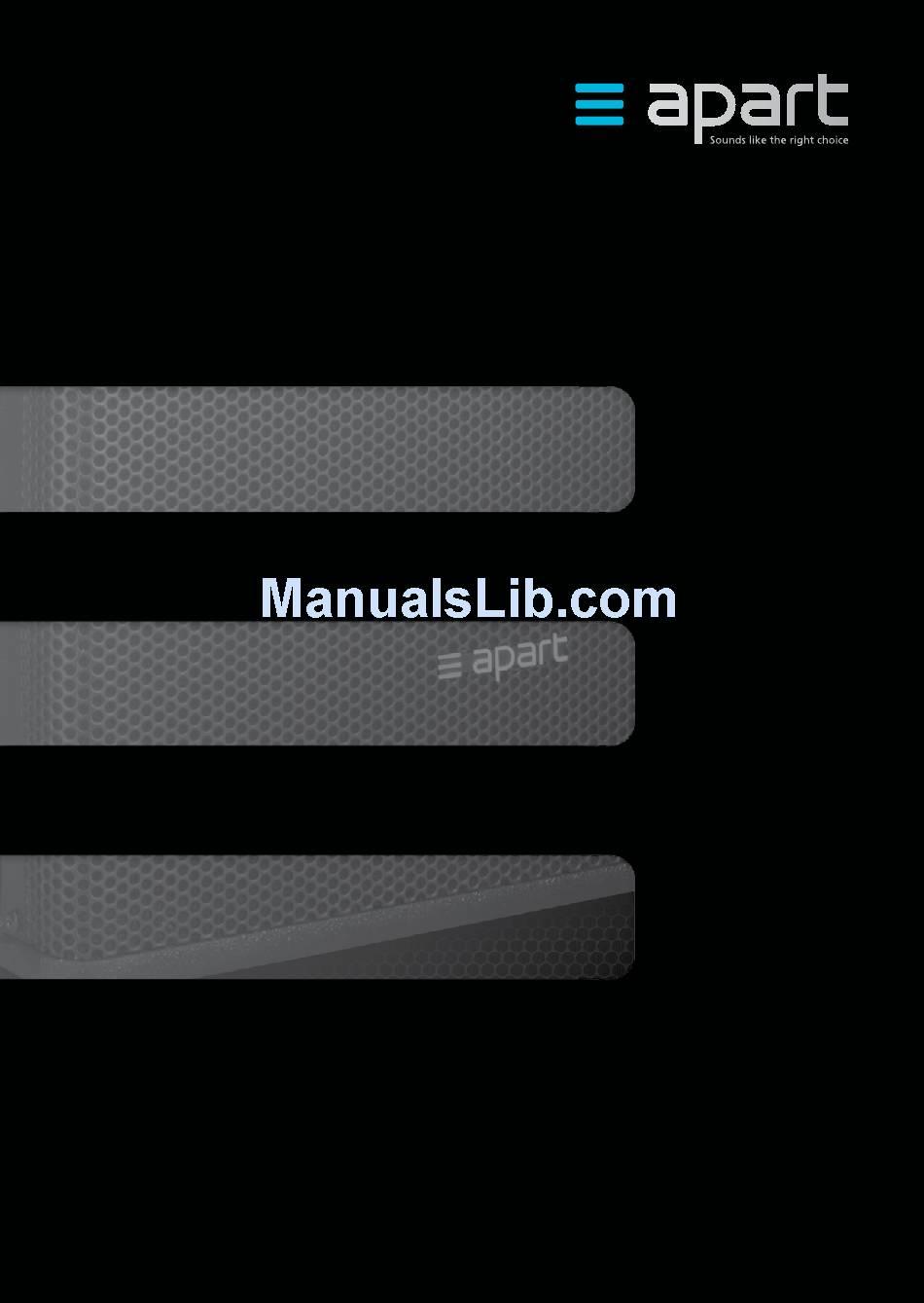

  • Page 1 MASK12 Instruction manual...
  • Page 3 MASK12 Instruction manual Features • 2-way professional fixed installation PA speaker • 350 W RMS power • 700 W program power • dual vent bass reflex • rotatable HF horn. • 12 inch LF driver with 75 mm vented voice coil •...
  • Page 4 The MASK12 speaker is meant for fixed indoor installations. Available in 8 ohms and 100 volt, MASK12 can be used in many full range applications where a medium to high sound pressure level is required.

  • Page 5: Safety Precautions

    MASK12 Instruction manual Safety precautions • Everyone who is involved with the installation and/or operation of this product must read and understand all local safety regulations and instructions. • Keep this manual for future reference. • Avoid the presence of fire and flames and do not operate the product in the presence of heat sources, flammable liquids or gases.
  • Page 6 Warning: this speaker is capable of producing high sound pressure levels that can cause permanent hearing loss. • Apart audio is not responsible for any damage or injury caused by improper installation or use of this product. • Repairs, servicing and electrical connections must be carried out...
  • Page 7 MASK12 Instruction manual Speaker connection (8 ohm version) Input: the signal from a power amplifier must be connected to the ® input/link speakon connector. The connectors are equivalent and internally wired in parallel. Connector 1+ (positive) and 1- (negative) are used. 2+ and 2- are not connected.

  • Page 8: Speaker Installation

    FULL RANGE SPEAKER Speaker installation Install the speaker on the wall or ceiling using our optional U-bracket. Make sure the wall, ceiling, surface, structure and additional mounting hardware are capable of safely supporting the speaker’s weight. When suspending the speaker with chains, make sure to mount the M10 shoulder eye bolts (not supplied) on more than one side of the speaker.

  • Page 9: Speaker Orientation

    70°V. When the speaker is mounted horizontally, we advise to rotate the high frequency horn by 90° to ensure the 90° horizontal dispersion angle. The Apart logo on the grille can also be rotated. In order to mount the speaker close to the ceiling, one side of the speaker is angled.
  • Page 10 FULL RANGE SPEAKER rotate HF horn 90° for horizontal orientation...
  • Page 11 MASK12 Instruction manual rotate logo 90° for horizontal orientation...

  • Page 12: Specifications

    FULL RANGE SPEAKER Specifications Model name MASK12 height mm width mm depth mm cutout mm loudspeaker system 2-way woofer size inch woofer cone material paper tweeter size inch dispersion (H x V in ° ) 90 x 70 mounting system...
  • Page 13 MASK12 Instruction manual rigging flying points 14 x M10 colour black / white impedance ohms low impedance power watts SPL 1W/1m dB max SPL 1m dB frequency response Hz 48 - 22K main construction material wood grille main material steel...

  • Page 14: Warranty Info

    FULL RANGE SPEAKER Warranty info Apart Audio warrants this product to be free of defects in material and workmanship for a period of one year for parts and for a period of one year for labor from the date of original end-user purchase.
  • Page 16 Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
