- Page 1 MASK2 Instruction manual...
- Page 3 MASK2 Instruction manual MASK2 manual...

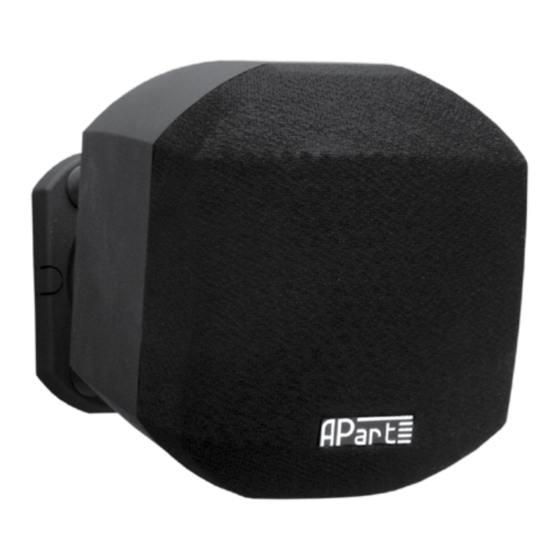

- Page 4 Thank you for purchasing loudspeakers of the MASK series. MASK2: Smaller, cuter, easier, ... but don’t be fooled by his tiny appearance… The Apart MASK2 speaker has successfully combined the typical MASK look and the small size, but without losing the MASK sound quality.
-
Page 5: Safety Instructions
MASK2 Instruction manual Safety instructions • Keep this manual for future reference. • Take care of your speaker wires, they should be free of damage. Damaged speaker wires may result in poor sound quality and can damage amplifiers. • No mains power should be connected to the speakers, doing so will damage the speaker. -
Page 6: Features And Benefits
• small, cute and easy to install • 50 W RMS (using a 150 Hz / 12 dB / octave highpass filter) • perfect match with Apart SUBLIME subwoofer • 2.5” paper cone woofer • inventive turn/tilt bracket... - Page 7 MASK2 Instruction manual Mounting the speaker It is recommended to point the center of the speaker to the center of the dedicated listening area. Before mounting the bracket on the wall or ceiling, test-fit the speaker- bracket combination to see if you can reach the desired mounting angle.
- Page 8 Cabinet loudspeakers The angle can be determined by the position of the bracket base and the position of the H-hook on the half-sphere ball. The factory default force setting of this central screw is adjusted for moving the H-hook over the semi-sphere with or without the cabinet being over the hook.
- Page 9 MASK2 Instruction manual Note: With the MASK2CMT-W and the MASK2CMT-BL APART provides an easy extension to the MASK2 bracket to ceiling mount the MASK2 speakers.
-
Page 10: Connecting The Speaker
Cabinet loudspeakers Connecting the speaker • Remove the euroblock connector from the speaker and connect the speaker wire to the euroblock connector. Mind the polarity marked on the back of the speaker: + is positive, - is negative. Most speaker wires have a color code. Respect the color code starting at your amplifier up to your speakers. - Page 11 MASK2 Instruction manual 8Ω technology 8Ω 8Ω 8Ω 8Ω 4Ω 4Ω CONCEPT1 • dynamic high power • stereo Hi-Fi quality • same volume in all zones • max 4 cabinets on a stereo Hi-Fi amplifier Note: Do not attempt to use these small speakers as full range speakers, they are not designed to reproduce bass frequencies.
- Page 12 Cabinet loudspeakers Note: the overload protection system is incorporated in subwoofers and amplifiers, NOT in the MASK2 speaker itself. Connect the left output from the power Connect the right output from the power amplifier to the left input of the SUBLIME amplifier to the right input of the SUBLIME subwoofer.
- Page 13 MASK2 Instruction manual Technical drawings...
- Page 14 Cabinet loudspeakers Polar diagram...
-
Page 15: Technical Specifications
Dimensions (h x w x d) 94 x 82 x 108 mm (without mounting bracket) Shipping dimensions (h x w x d) 130 x 146 x 310 mm Colour Black / white Accessories (supplied) Mounting bracket, mounting hardware, screws, screw covers and white gloves (MASK2-W). - Page 16 Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
