- Page 1 MANUAL MPBD20-G INFO@APART-AUDIO.COM...

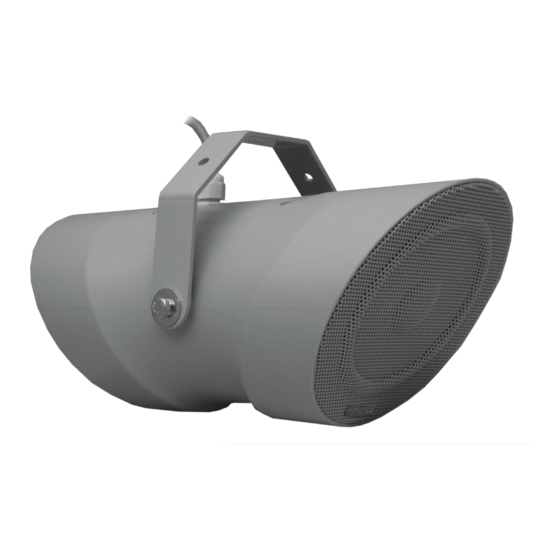

- Page 2 Thanks for purchasing our MPBD20-G speaker, a bidirectional speaker especially designed for outdoor usage BGM. The APart MPBD20-G has been designed and engineered in our Belgian head quarters. The MPBD20-G operates on 100V systems and can be configured in 20W, 10W and 5W. The design is kept deliberately in a discrete way in order not to draw attention.
-
Page 3: Features And Benefits
• ABS plastic housing Connecting the speakers 100V technology 100 Watt ≥ 10W 5W Amplifier power must be equal or higher than total power of all speakers Open up the MPBD20-G Remove the four screws from the top of the MPBD20-G INFO@APART-AUDIO.COM... - Page 4 Connecting the MPBD20-G Common 100V speaker wire 20W 100V speaker connection 10W 100V speaker connection 5W 100V speaker connection WWW.APART-AUDIO.COM...
-
Page 5: Specifications
Specifications Type MPBD20-G Woofer 5inch, paper – moisture resistant Rated power RMS Transformer taps 20W, 10W, 5W Frequency response (-10dB) 150Hz to 20kHz SPL 1W/1m 93dB SPL 1m/ max rated power 106dB Color Grey Chassis type Grill construction Aluminium Bracket construction... - Page 6 Technical drawing with measurements Warranty info APart-Audio warrants this product to be free of defects in material and workmanship for a period of one year for parts and for a period of one year for labor from the date of original end-user purchase. This warranty is valid only for the original end- user and cannot be transferred.
- Page 7 Notes INFO@APART-AUDIO.COM...
- Page 8 Send your ideas or suggestions to suggestions@apart-audio.com Company names, product names, and names of formats etc. are the trademarks or registered trade- marks of their respective owners. © 2010 APart-Audio specifications subject to change without notice. developed by Audioprof nv Industriepark Brechtsebaan 8 bus 1...
