SDQ5PIR
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDQ5PIR and is the answer not in the manual?

Questions and answers

Summary of Contents for APART SDQ5PIR

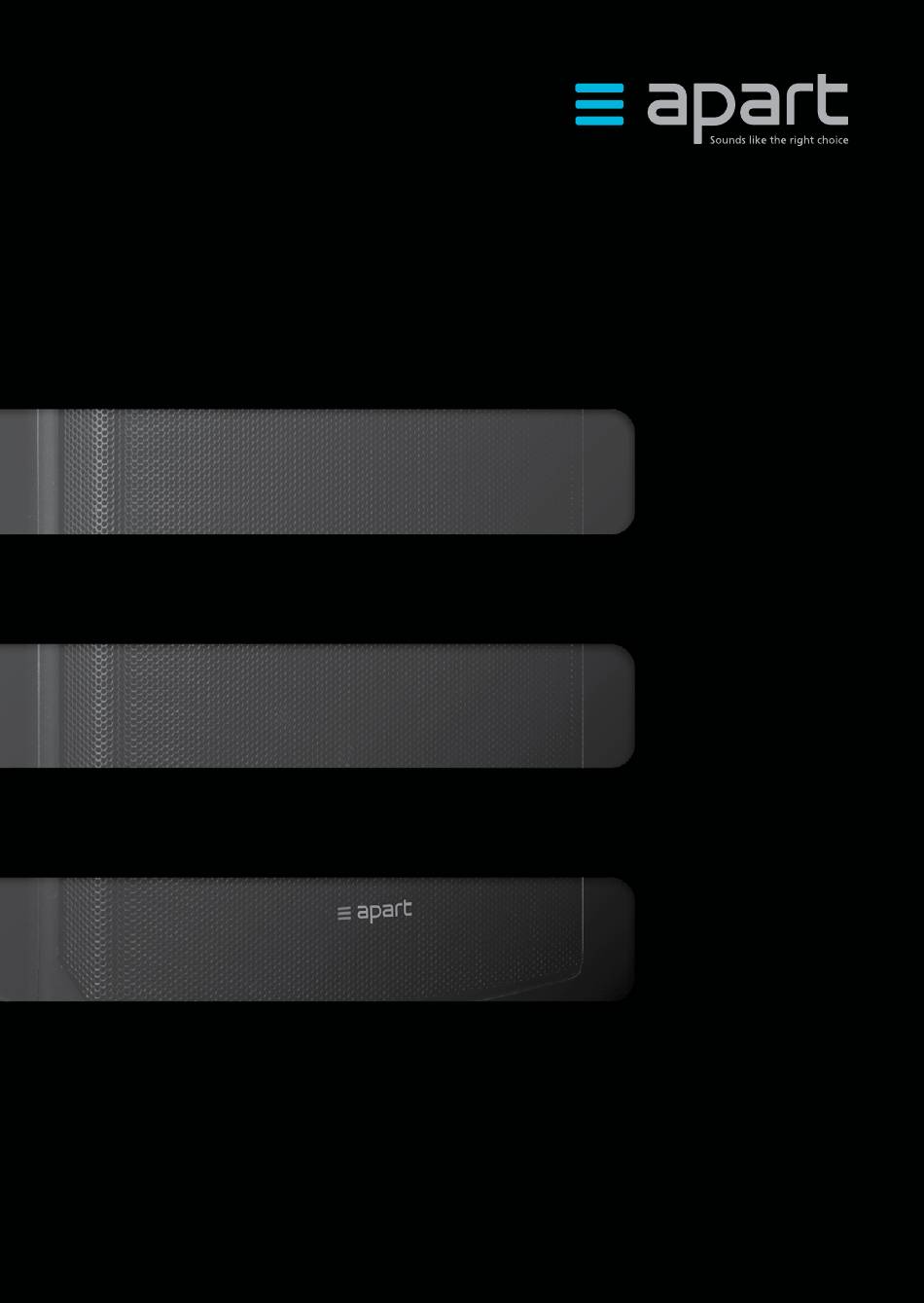

  • Page 1 SDQ5PIR Instruction manual...
  • Page 3 SDQ5PIR Instruction manual SDQ5PIR Manual...
  • Page 4: Safety Instructions

    Active loudspeaker set Safety instructions • Caution! This professional device needs to be installed by qualified personnel only. • Please check the carton box for any kind of damage on reception of the goods. In case of a damaged carton, please contact your dealer before opening the carton.
  • Page 5 SDQ5PIR Instruction manual • Set level controls on amplifiers all the way down during power- up to prevent speaker damage if there are high signal levels at the inputs. • Do not connect the inputs / outputs of amplifiers or consoles...

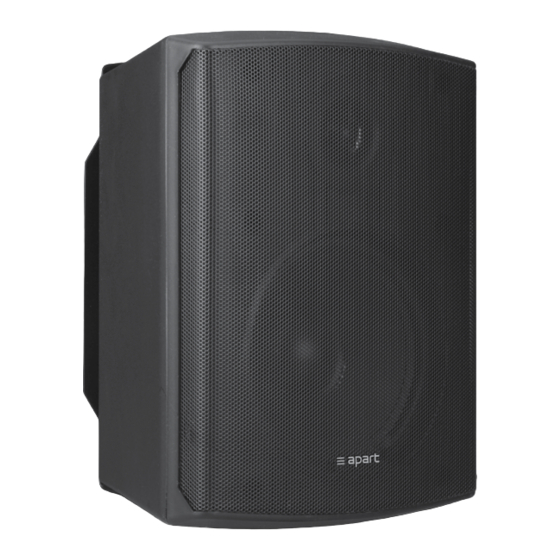

  • Page 6 Active loudspeaker set Features • The Apart SDQ5PIR powered loudspeaker set is a versatile and very compact, easy to use, plug and play sound system. It consists of an amplified loudspeaker with a 5.25” woofer, a high frequency unit and a second linkable passive loudspeaker, powered by the second amplifier built into the active speaker.
  • Page 7 • When the product shows signs of damage caused by transportation, contact your dealer immediately. Damage due to transport and rough handling is not covered by the manufacturer warranty. • The SDQ5PIR complies with CE regulations.
  • Page 8: Rear Panel

    Active loudspeaker set Rear panel Volume control: set the desired level. The level set here will also be the maximum possible level when operating the unit remotely (infrared or RS232 commands). Treble control: add or decrease the high frequencies. Adding high frequencies may improve intelligibility.
  • Page 9 + and – to -. Mode switch: this switch turns your SDQ5PIR in a full stereo or a very compact mono system. When switched to mono mode, use the “Left” input only. The audio signal from the left input will sound through both speakers.
  • Page 10 Instructions always have to be ended with <CR>, carriage return. Line feed <LF> characters will always be omitted, however SDQ5PIR can use (and echo) <LF> after a <CR>. Instructions are not case sensitive! The 4 possible commands are: SET, GET, and DEC.
  • Page 11 -10 and you enter the command “SET SDQLVL -20<CR>”, the SDQ5PIR will set the level relative to the MAXLVL, which was -10. Please note that the absolute maximum number of volume steps is limited to 64 steps. 1 volume step corresponds to 1.25 dB.
  • Page 12: Configuration Settings

    “Set select AB<CR>”. In this case, both inputs A and B will be mixed together by the SDQ5PIR unit. Possible values are A, B, AB or WI. WI is the local input of the optional wall control IPGAIN is input gain.
  • Page 13: Control Settings

    Hyperterminal. VALFB means value feedback. Possible values are on or off. When value feedback in on, the SDQ5PIR will reply its setting after a value has been changed, such as SDQLVL. Control settings: BACKCT: set the controls at the back of the unit on or off. NOTE:...
  • Page 14: Set Standby

    Release the BASS + and - buttons two seconds after powering up. All factory defaults will be restored. Restore Factory Settings: The SDQ5PIR can be switched to Standby mode with the IR remote control or with the “SET STANDBY ON<CR>” instruction. Leaving Standby mode can also be done with IR remote controller or the “SET STANDBY...
  • Page 15 SDQ5PIR Instruction manual Attribute Description Commands Value Factory default SDQLVL Volume level GET, SET, INC, OFF (-64) -63 to 0 MAXLVL Maximum allowed GET, SET BACK, OFF (-64) BACK level -63 to 0 BALANCE Left - right balance GET, SET...
  • Page 16: Infrared Remote Control

    Active loudspeaker set Infrared remote control The included infrared remote control unit is powered by a standard CR2025 3V lithium battery. Before first use, carefully remove the transparent battery saver. When the battery is empty, replace with the same type only. Slide out the battery holder from the remote control unit, remove the empty battery and put a fresh one in place.
  • Page 17 {0C} Input B Bass DOWN {04} {00} Input A + B Treble UP {07} {0D} Input WALL {0A} Treble Down {0F} Level UP {03} SDQ5PIR device code is {807F} ® Infrared commands have been coded according to the NEC protocol.
  • Page 18: Technical Specifications

    Active loudspeaker set Technical specifications speaker type 2 way bass reflex, active tweeter size 1” woofer size 5.25” input impedance stereo jack input A 5 k ohms input sensitivity stereo jack input A 175 mVrms (-15 dBV) input impedance balanced input B 22 k ohms input sensitivity balanced input B 175 mVrms (-15 dBV)
  • Page 19 SDQ5PIR Instruction manual woofer cone material polypropylene main construction material ABS plastic dimensions h x w x d 252 x 182 x 170 mm net weight 2.85 kg (active) ; 1.75 kg (slave) shipping weight 6.2 kg (1 set) shipping dimensions (mm)
  • Page 20 Apart Audio NV Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
