  • Page 1 MANUAL SDQ5Pir INFO@APART-AUDIO.COM...

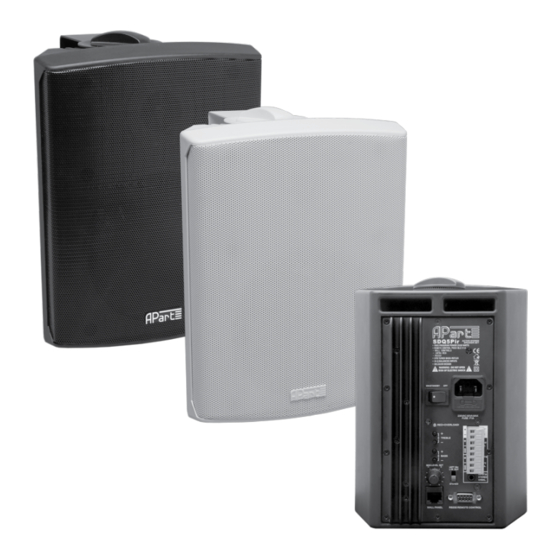

  • Page 2 Features The APart SDQ5Pir powered loudspeaker set is a versatile and very compact, easy to use, plug and play sound system. It consists of an amplified loudspeaker with a 5.25” woofer, a high frequency unit and a second linkable passive loudspeaker, powered by the second amplifier built into the active speaker. The speakers are magnetically shielded.
  • Page 3: Rear Panel

    Do not attempt to connect anything else but the optional SDQ5Pir wall control panels. 8. Right speaker output: output to the passive slave loudspeaker (right channel) on euroblock. Connect the Right LS out to the euroblock connector of the slave unit (passive speaker).
  • Page 4 -10, set the MAXLVL parameter to -10. All volume related commands will ALWAYS be related to the MAXLVL setting. E.g. if the MAXLVL is -10 and you enter the command SET SDQLVL -20, the SDQ5Pir will set the level relative to the MAXLVL, which was -10.
  • Page 5 SELECT is input source selection, a possible command could look like this: “Set select AB<CR>”. In this case, both inputs A and B will be mixed together by the SDQ5Pir unit. Possible values are A, B, AB or WI. WI is the local input of the optional waal control IPGAIN is input gain.
  • Page 6 All factory defaults will be restored. Standby: The SDQ5Pir can be switched to Standby mode with the IR remote control or with the “SET STANDBY ON<CR>” instruction. Leaving Standby mode can also be done with IR remote controller or the “SET STANDBY OFF<CR>”...
  • Page 7 Infrared remote GET, SET ON or OFF control AUTOPW Auto power off GET, SET 0 to 30 AUPTRG Auto power GET, SET 0 to 9 trigger level INFO settings information HWVRSN Hardware version SWVRSN Software version RESTORE Restore factory defaults INFO@APART-AUDIO.COM...
  • Page 8 This will avoid possible damage or corrosion from battery leakage. Warning: Do not attempt to recharge, disassemble, or incinerate this type of battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by applicable laws. WWW.APART-AUDIO.COM...
  • Page 9 Power STANDBY Input A Input B Input A + B Input WALL Level UP Level Down MUTE Bass UP Bass DOWN SDQ5Pir device code is “807F” Treble UP Infrared commands have been coded according to the NEC® protocol Treble Down INFO@APART-AUDIO.COM...
  • Page 10: Technical Specifications

    270 x 210 x 440 accessories supplied Power cord, bracket, manual, infrared remote control unit, connection wire Remote control unit battery type lithium CR2025 3v operating temperature -10 to +40° C relative humidity 10 to 90% non condensing WWW.APART-AUDIO.COM...
  • Page 11: Important Safety Instructions

    Do not remove the cover. Removing the cover will expose you to potentially dangerous voltages. • Do not drive the inputs with a signal level higher than that required to drive equipment to full output. • In case of mal-function this device should be serviced by qualified service personnel only. INFO@APART-AUDIO.COM...
  • Page 12 Company names, product names, and names of formats etc. are the trademarks or registered trademarks of their respective owners. © 2009 APart-Audio specifications subject to change without notice. WWW.APART-AUDIO.COM...
