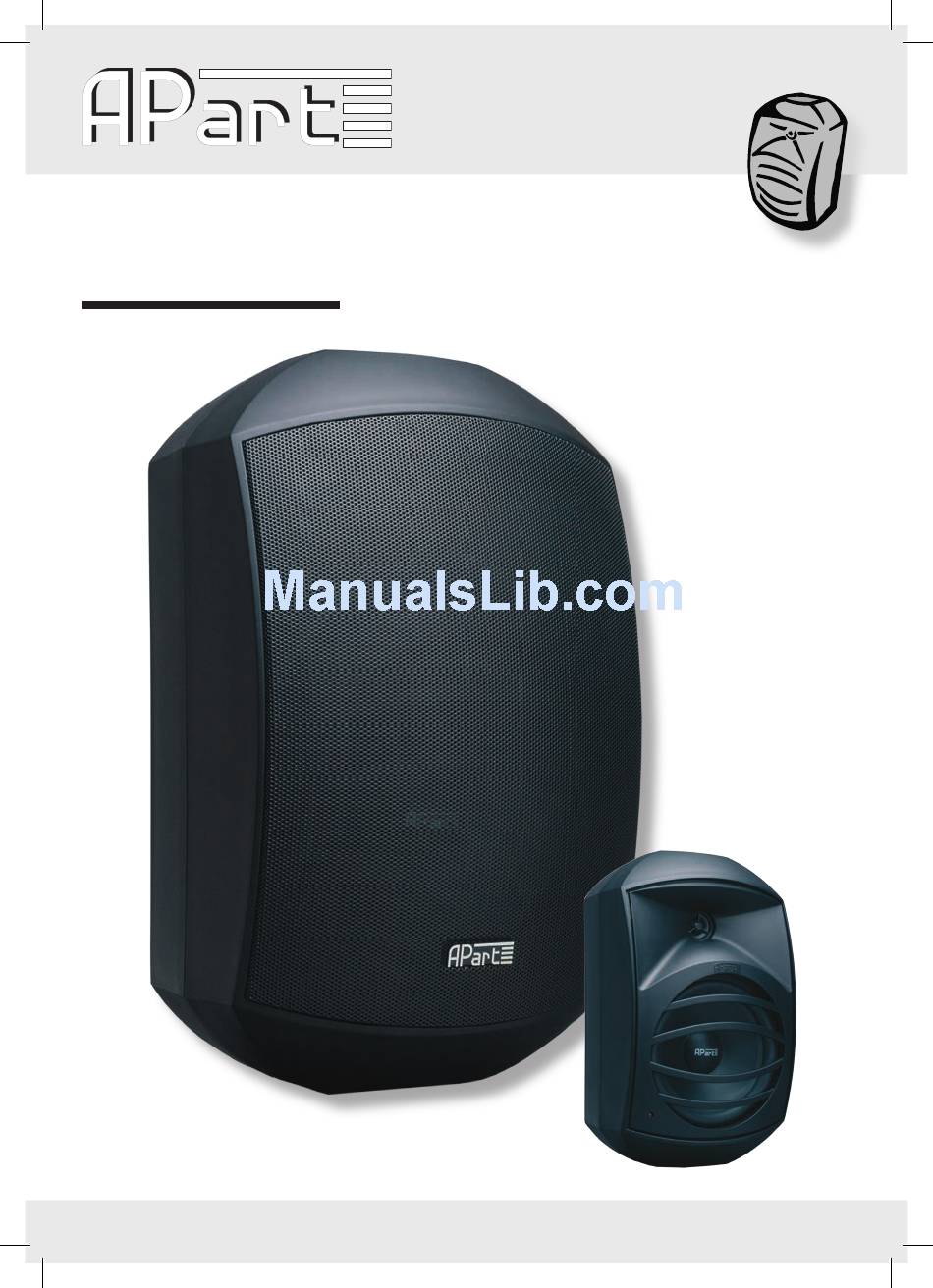

- Page 1 MASK SERIES MANUAL INFO@APART-AUDIO.COM...

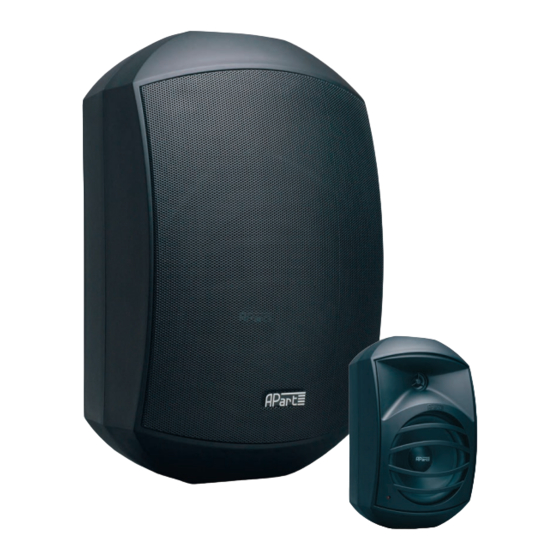

- Page 2 MASK SERIES ApArt thAnks you for purchasing loudspeakers of the MASK series. Read this manual carefully to get the best result out of your music system. MASK two way loudspeakers have been designed to fit in any interior and to be applicable in most situations.
- Page 3 MASK SERIES MASK4 Series The most compact of the series uses a 4” LF driver and a dome tweeter on a Vari-throat horn. When you hear our junior, you’ll be looking for a much bigger loudspeaker. All MASK4 models include a multi-tap 100V transformer. When you bypass this transformer you have a normal 16 ohms loudspeaker, which means you can easily use more than two MASK4, in parallel, on one normal amplifier channel.
- Page 4 MASK SERIES Intelli-mount This Intelligent mounting system will be your helpful partner to install your MASK 4 and 6 loudspeakers in a very safe and easy way. Mounting and aiming your MASK will be done like a snap with your fingers.
-
Page 5: Connecting The Speakers
MASK SERIES Connecting the speakers Before hooking your MASK onto it’s base, don’t forget to set the proper voltage tap setting. To use your MASK4 with a normal (hifi) stereo amplifier you have to switch the voltage tap to 16 ohms. In this case you can easily connect 8 MASK4 to a stereo amplifier channel capable to drive a speaker load of 4 ohms. - Page 6 MASK SERIES Wiring Connect the wires to the speaker at the back terminal plate observing the polarity of the connections. The push-terminals of the MASK6 accept banana connector plugs and wire by Push-Terminals. To avoid confusion, use cables which have clear (colour) codes, so correct polarity can be maintained.
-
Page 7: Overload Protection
MASK SERIES Overload Protection All MASK models have a unique overload protection, which only comes into the signal path when needed. When too much power is fed into your MASK, first a red led will blink. When you neglect this warning, the overload protection will disconnect the signal going to the loudspeakers and the red led will remain on. - Page 8 MASK SERIES WWW.APART-AUDIO.COM...
