Nitek VR148UTP Installation And Operation Manual

Model VR148UTP
Network Extender with PoE
Introduction
The VR148UTP Network Extender is designed to greatly extend the distances to which IP cameras and other network
devices can operate. The VR148UTP Network Extender consists of two units, a transmitter and a receiver. Only the
transmitter provides PoE to the connected network device. The receiver is installed at the NVR/IP equipment side and
the transmitter at the IP camera side of the installation.
Speed Speed Off Off 10 Mbs 10 Mbs
LED LED Green Green 100 Mbs 100 Mbs
10/100
POWER
ETHERNET
Status Blinking Establishing Link
LED On Link Established
Note: A sticker on the bottom of each unit identifies whether it is the transmitter or the receiver.

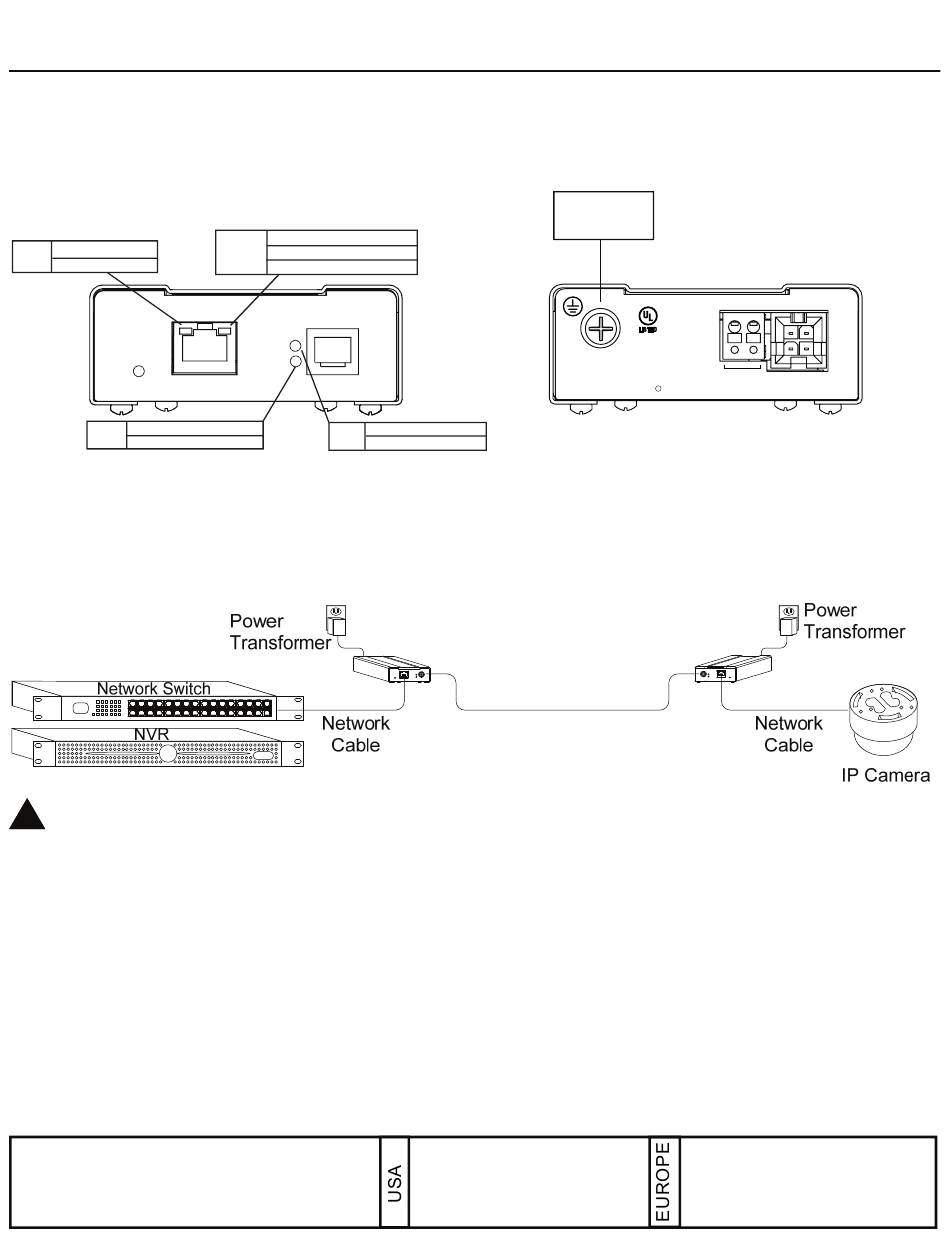

VR148UTP Network Extender Installation Drawing
!
The separate protective earthing terminal provided on this product shall be permanently connected to earth.
Install Network to VR148UTP and IP Cameras
Refer to the above diagram when installing. Use best industry practices and follow all local building codes.
1) Connect an earth ground to each unit before making any additional connections.
2) Connect a network cable from the security room or IP network equipment to the receiver.
3) Connect a twisted pair cable between the transmitter and the receiver. Use center terminals of the RJ11connector.
4) Connect a network cable from the transmitter's Ethernet jack to the IP camera or other network device.
5) Connect a Class 2 power transformer to the push in power connector of each VR148UTP unit. The units
require 24VAC @ 1 Amp. There is no polarity to these terminals.
Normal Operation
When power is applied to both units the Network LED's will come on and the link status LED will blink for about 30
seconds as the link is being optimized. When the link is stable the link status LED will remain "ON". The data LED will
blink with network activity.
NITEK
072310 681200105
Activity Activity Off Off No Network No Network
LED On Network Detected
LED On Network Detected
Blinking Network Activity Blinking Network Activity
Data
LINK
Type
Status
WIRE PAIR
Type On
LED Off
FRONT
®
Ground
Connection
NITEK
Transmitter
Receiver
VR148UTP
Receiver
1 mile (1,600 m)
24AWG or Better
Twisted Pair
5410 Newport Drive, # 24
Rolling Meadows, IL 60008
Phone: (847) 259-8900
Fax: (847) 259-1300
E-mail: info@nitek.net
WWW.NITEK.NET
Installation and
Operation Manual
COMMERCIAL
CCTV PRODUCT
40FE
E325724
POWER INPUT
24 AC
12-24 AC/DC, 0-100 Hz
R
Class 2 only, 1 Amp max.
BACK
VR148UTP
Transmitter
w/PoE
De Schans 19-21 2a
8231 KA Lelystad
Tel: +31(0)320-2300005
Fax: +31(0)320-282186
E-mail: info@nitek.nl
WWW.NITEK.NL
