Nitek EE328 Installation And Operation Manual

Model EE328
Ethernet & POE Extender

Introduction

The EE328 Ethernet & POE Extender is designed to greatly extend the distances to which IP cameras and network
devices can operate. The EE328 regenerates network communication and passes POE power through itself and on
down the network cable. When used with an optional 48VDC power supply the EE328 can operate as a fully
independent repeater and IEEE802.3af POE inserter. If needed, several EE328 units can be used in series to extend a
network communication and POE.

Install EE328 with a POE Source Switch and IP Cameras

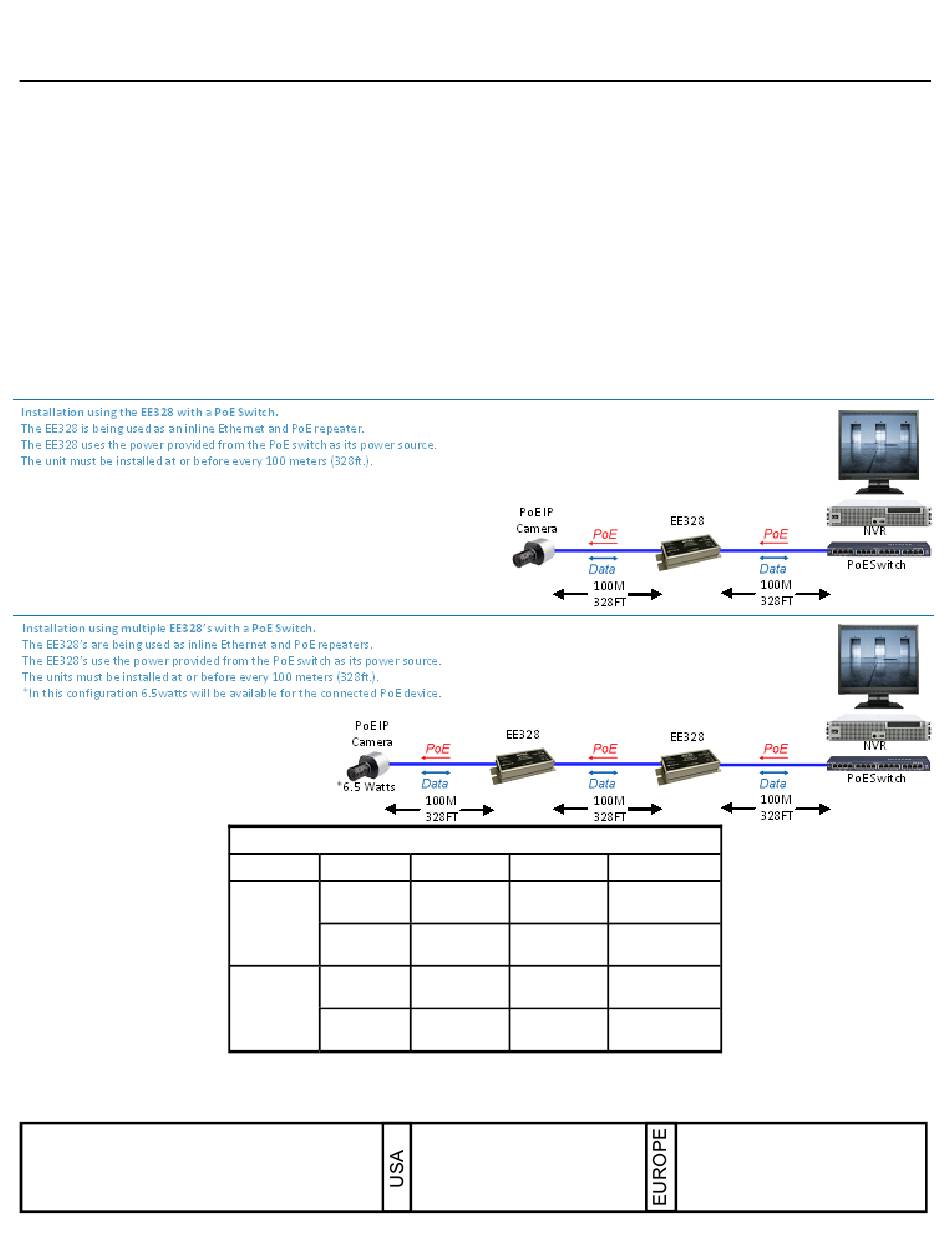

Refer to the diagram below when installing. Use best industry practices and follow all local building codes.
When installing with a POE source, insert the EE328 at a distance of 100 meters or less from the network switch. The
cable leaving the EE328 and going to the next device in the chain must be 100 meters or less to insure proper operation.
Several EE328 units can be used in series to extend the network communication.
NITEK
021711 681200110

LED INDICATORS

Connector LED
Power
POE IN
Receive
Link Activity
POE Out
Powered
POE OUT
Transmit
Link Activity
5410 Newport Drive, # 24
Rolling Meadows, IL 60008
Phone: (847) 259-8900
Fax: (847) 259-1300
E-mail: info@nitek.net
®
WWW.NITEK.NET
OFF ON
Power
No power
Good
No Ethernet Ethernet Link
Link Good
No Power or POE Out
Power Error Enabled
No Ethernet Ethernet Link
Link Good
Installation and
Operation Manual
FLASHING
Power
Marginal
Network
Active
No POE Device
Connected
Network
Active
