Ethernet Extender & PoE Injector with EtherStretch
The ET1500U is another component of the NITEK EtherStretch line. Our EtherStretch solution
allows for the utilization of new or existing cable infrastructure (coax or UTP) to transmit data
from IP cameras and other network devices along with power (PoE) to operate these networked
devices well beyond standard network limitations. The system can extend Ethernet to over 600m
or 1968ft of Category cable making the ET1500U is ideal for retrofitting existing installations.
The ET1500UW is a transmitter that mates with any of the EtherStretch Multi-port series receiver
units and require very little installation time and no set up or configuration. This system quickly
turns any ordinary Category cable into a high speed network communication and PoE pathway
well beyond normal limitations. The ET1500UW is completely transparent to the network thus re-
quiring no IP and MAC addressing. Simply connect your network devices to the networking ports
of the ET1500U transmitter and associated receiver along with Category cable run between the
units and the system begins communicating. LED indicators show the status and speed of net-
work communications and PoE power.
The NITEK EtherStretch ET1500UW reliably extends network communications to overcome ca-
ble distance limitations offering connectivity to devices in locations traditional networking does not
allow. The units are constructed of industrial grade RoHS compliant plated aluminum with a corro-
sion resistant finish makes them extremely durable.
Patent Pending
08192014
NITEK

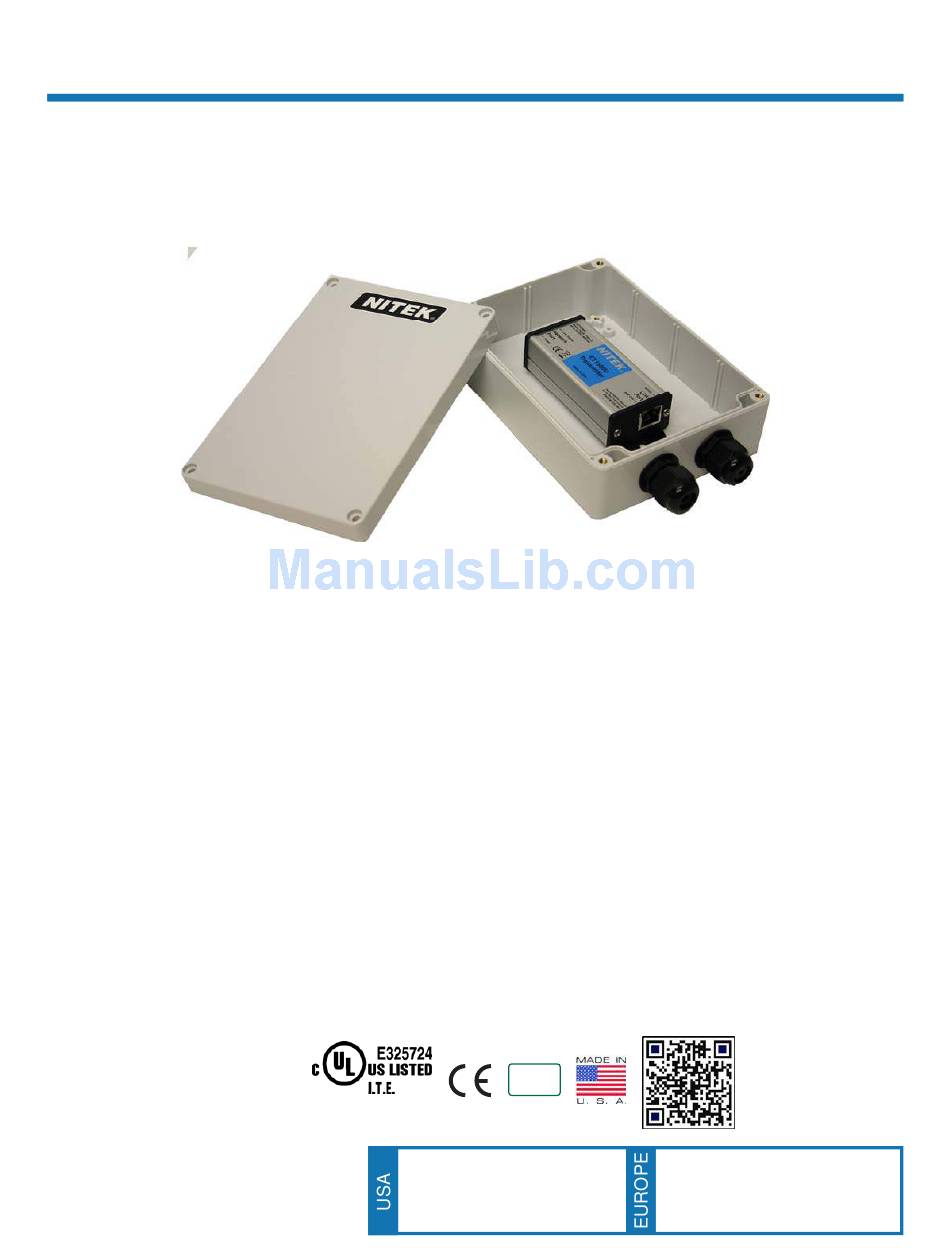

INSTALLATION GUIDE
ET1500UW
IP Video Camera Over Coax
Description
IEC/UL 60950-1
5410 Newport Drive, # 24
Rolling Meadows, IL 60008
Phone: (847) 259-8900
Fax: (847) 259-1300
E-mail: info@nitek.net
®
WWW.NITEK.NET
RoHS
COMPLIANT
2002/95/EC
De Aar 99
8253 PN Dronten
The Netherlands
Tel: +31(0) 321 310 043
E-mail: info@nitekeurope.net
WWW.NITEK.NET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET1500UW and is the answer not in the manual?

Questions and answers

Summary of Contents for Nitek ET1500UW

  • Page 1 1968ft of Category cable making the ET1500U is ideal for retrofitting existing installations. The ET1500UW is a transmitter that mates with any of the EtherStretch Multi-port series receiver units and require very little installation time and no set up or configuration. This system quickly turns any ordinary Category cable into a high speed network communication and PoE pathway well beyond normal limitations.
  • Page 2 Important Safety Instructions Read all Safety Instructions. Keep the Instructions for future reference. Be sure to HEED all Warnings. Follow ALL instructions. DO NOT use this device or any of the equipment described, near water. Clean this device ONLY with a dry cloth. DO NOT block any ventilation openings.
  • Page 3 Tech Support at 1-(800)528-4343. Ethernet & PoE: The ET1500UW is designed to transmit and receive up to 100Mbps of Ethernet data and PoE from 15.4W (802.3af) to 25.5W (802.3at) at a maximum distance of 1968 feet or 600 meters. Before considering this solution be sure that the cable involved does not exceed the recommended maximum lengths.
  • Page 4 The IP camera interfaces with the ET1500UW via its “Network Port” labeled RJ45 with a CAT5e/CAT6 patch cord. The output of the ET1500UW in turn connects to “Link” cables via the “Link Port” labeled RJ45 con- nector. Power (PoE) from the multi-port receiver provide operational PoE for both the ET1500UW and the attached the IP camera.
  • Page 5 Device Dimensions NEMA4 Enclosure NITEK Transmitter Top (Inside View) Top (Outside View) 5.74 5.27 2.25 1.58 4.56 Bottom (Inside View) Bottom (Outside View) 568B Pin out Termination 12345678 568B COLOR WHT/ORG ORG/WHT WHT/GRN BLU/WHT WHT/BLU GRN/WHT WHT/BRN BRN/WHT...
  • Page 6 Connectivity Status LINK PORT SIDE NETWORK PORT SIDE LED INDICATORS Connector FLASHING Power Power No power Good Network Port No Ethernet Ethernet Link Link Status Link Good No PoE PoE Power PoE Out Link Power Out Good Port 10/100 No Link 100Mb 10Mb PoE Distance Chart...
  • Page 7 Troubleshooting PROBLEM POSSIBLE CAUSE No video/data Check camera, ET1500UW & Multi-port receiver device connections. Check UTP cable condition and RJ45 connectors. Check that the camera is powered. Check that supplied camera power meets manufacturer’s specifications. Check that UTP cable distances do not exceed PoE capabilities.
  • Page 8 Warranty Period. Nitek’s liability with respect to any product shall not exceed a refund of the price received by Nitek for that product, and in no event shall Nitek have any liability for any incidental, consequential, special, or indirect damages.
