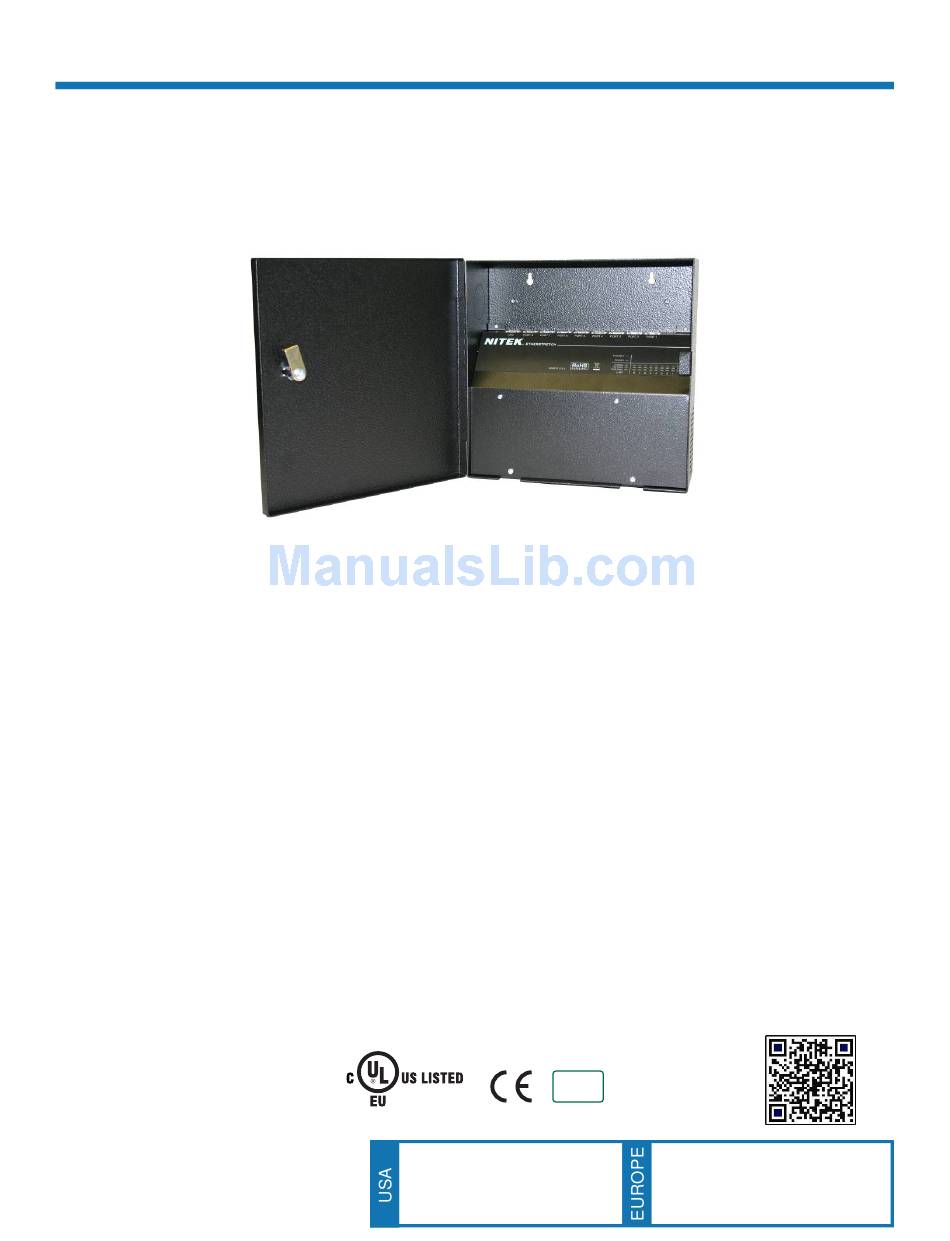

Nitek ER8400U Installation Manual

8 port wall mounted ip video extender over utp with built-in gigabit poe+ switch and etherstretch

Advertisement

Quick Links

8 Port Wall Mounted IP Video Extender Over UTP
With Built-In Gigabit PoE+ Switch and EtherStretch
The ER8400U is another component of the NITEK cutting edge EtherStretch line. Our EtherStretch solution allows
for the utilization of existing cable infrastructure (coax or UTP) to transmit data from IP cameras and other network de-
vices along with PoE+ power to operate these network devices over the given wire media well beyond the 100m/328ft
networking distance limitation. EtherStretch technology allows you to operate 100Mb Ethernet at over 600 meters.
The ER8400U is a wall mounted eight port power sourcing receiver unit has built-in gigabit switching capabilities. The
unit requires very little installation time and absolutely no set up or configuration. The ER8400U and associated
ET1500U transmitters, up to 8, can quickly enable UTP CAT5e/CAT6 cables to support high speed network communi-
cation and PoE+ transmission to be extended to 600 meters or 2000 feet.
The ER8400U is a fully functional PoE+ network Layer 2 switch with IEEE802.3AT power output on each of the 8 net-
work ports and a full Gigabit LAN jack. It allows you to mix standard Ethernet devices for distances of up to 100 meters
and with EtherStretch devices that can extend cable runs to 600 meters. The longer 600m/2000ft require the use of
the ET1500U transmitter. A small EtherStretch transmitter unit connects at the far end of the cable and allows you to
connect any Ethernet device to the cable and get 100Mb communication.
The ER8400U is completely transparent to the network thus requiring no IP and MAC addressing. Simply connect your
network device to the transmitter network port connect a new or existing cables to the receiver and the system quickly
begins communicating. LED indicators show the status and data speed of communications along with PoE power con-
firmation.
The NITEK EtherStretch ER8400U reliably extends network communications to overcome cable distance limitations
offering connectivity to devices in locations traditional networking does not allow. The ER8400U is ideal for retro-fitting
existing installations. The wall mounted unit is constructed of robust welded steel casing with a security lock and a built
in cooling and ventilation system.
NITEK

INSTALLATION GUIDE

ER8400U
Description
IEC/UL 60950-1
5410 Newport Drive, # 24
Rolling Meadows, IL 60008
Phone: (847) 259-8900
Fax: (847) 259-1300
E-mail: info@nitek.net
®
WWW.NITEK.NET
RoHS
COMPLIANT
2002/95/EC
De Schans 19-21 2a
8231 KA Lelystad
Tel: +31(0)320-230005
Fax: +31(0)320-282186
E-mail: info@nitek.nl
WWW.NITEK.NL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER8400U and is the answer not in the manual?

Questions and answers

Summary of Contents for Nitek ER8400U

  • Page 1: Installation Guide

    PoE+ transmission to be extended to 600 meters or 2000 feet. The ER8400U is a fully functional PoE+ network Layer 2 switch with IEEE802.3AT power output on each of the 8 net- work ports and a full Gigabit LAN jack. It allows you to mix standard Ethernet devices for distances of up to 100 meters and with EtherStretch devices that can extend cable runs to 600 meters.
  • Page 2: Important Safety Instructions

    Important Safety Instructions Read all Safety Instructions. Keep the Instructions for future reference. Be sure to HEED all Warnings. Follow ALL instructions. DO NOT use this device or any of the equipment described, near water. Clean this device ONLY with a dry cloth. DO NOT block any ventilation openings.
  • Page 3: Installation Considerations

    Support at (800) 528-4343. Ethernet & PoE: The ER8400U is designed to communicate at up to 100Mbps per network port for Ethernet data and transmit up to 1 Gigabit of aggregate LAN traffic. Additionally, the ER8400U provides per port power sourcing PoE+ voltage to operate the transmitters (ET1500U), and up to 8 attached network devices.
  • Page 4: Installation And Setup

    The method for facilitating Ethernet communication and PoE over UTP CAT5e/CAT6 cable starts with connecting the ER8400U to a series of up to 8 UTP cables via its network ports. Each of the UTP cables interface with the IP camera via the ET1500U transmitter, located at the camera end of the UTP cable. The IP camera establishes con- nectivity to ET1500U transmitter via RJ5 jacks and a CAT5e/CAT6 patch cords.
  • Page 5: Device Mounting

    RJ45 Network Ports Head-end Installation ER8400: The ER8400U is a wall mount unit. When mounting the unit be sure to leave space on the sides for airflow into the cooling fans and some space on bottom for the power cord.
  • Page 6 600m Cat5 or better cable Cables PORT 8 PORT 7 PORT 6 PORT 5 PORT 4 PORT 3 PORT 2 PORT 1 NITEK ETHERSTRETCH TROUBLE POWER 10 Mbps 100 Mbps 10 Mbps 1000 Mbps 100 Mbps IP Camera IP Camera...
  • Page 7 Transmitter-end Installation ET1500U Units At the camera location securely mount the transmitter. Find the Link cable from the head-end and make sure it is properly terminated. Connect Link cable to the “Link Port” of the transmitter. If the head-end unit is powered up it will sense the connection to the transmitter and turn on the power.
  • Page 8 If the needed level of power is not available for the length of cable, used alternate options are available. One method is to directly power the transmitter with a 48VDC power supply as shown below (Nitek# PS48). When pow- ered directly from a 48VDC supply the transmitter can deliver full 802.3AT power regardless of the cable length plus an additional length of up to 100 meters of network cable.
  • Page 9 568B Pinout Termination 12345678 568B COLOR WHT/ORG ORG/WHT WHT/GRN BLU/WHT WHT/BLU GRN/WHT WHT/BRN BRN/WHT PoE Distance Chart 30.0 27.4 27.4 25.0 25.0 20.0 18.0 20.0 14.1 15.0 10.0 100 Meters 200 Meters 300 Meters 400 Meters 500 Meters 600 Meters 328 Feet 650 Feet 1,000 Feet...
  • Page 10: Unit Dimensions

    Unit Dimensions 10.6 10.6...
  • Page 11: Troubleshooting

    Troubleshooting PROBLEM POSSIBLE CAUSE No video/data Check camera and ER8400/ET1500 device connections. Check UTP cable condition and RJ45 connector terminations. Check that the camera is powered. Check that supplied camera power meets manufacturer’s specifications. Check cable that cable distances do not exceed PoE capabilities. Check that UTP cable length does not exceed the operating distances of the ER8400 &...
  • Page 12 This warranty is given by NITEK with respect to the Network Extender products in lieu of any other warranties, express or implied. NITEK disclaims any implied warranties of merchantability or fit- ness for a particular purpose.
