For 15" (38.1 cm) model only:
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 12 gauge copper wire.
Electrically ground cooktop.
Failure to follow these instructions can result in death,
fire, or electrical shock.
For all models except 15" (38.1 cm) model:
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper wire.
Electrically ground cooktop.
Failure to follow these instructions can result in death,
fire, or electrical shock.
This cooktop is manufactured with a frame connected, green or
bare ground wire. Connect the cooktop cable to the junction box
through the UL listed or CSA approved conduit connector.
6
All manuals and user guides at all-guides.com

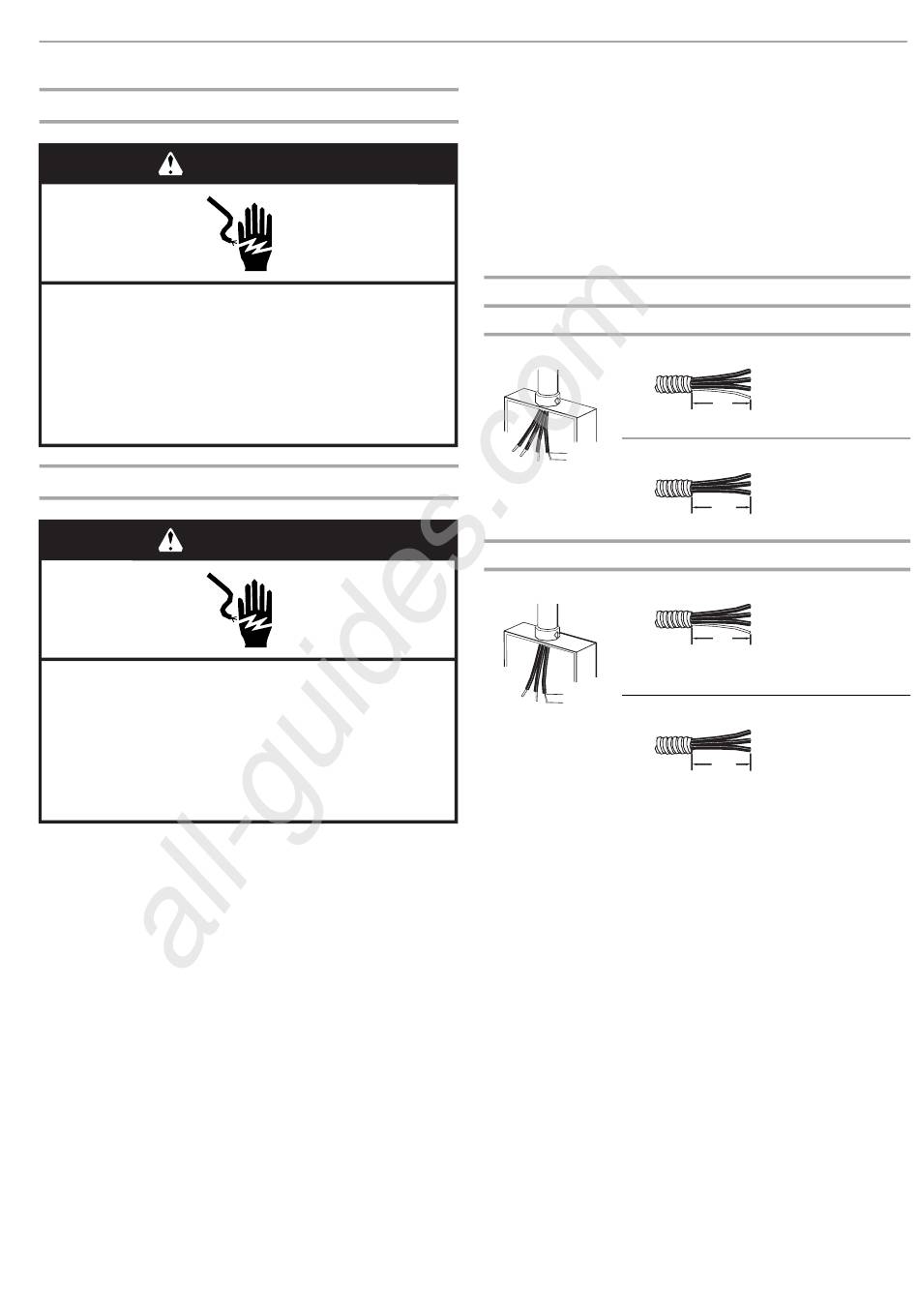

Make Electrical Connection

1. Disconnect power.
2. Remove junction box cover, if present.
3. Connect the flexible cable conduit from the cooktop to the
junction box using a UL listed or CSA approved conduit
connector.
4. Tighten screws on conduit connector if present.
5. See "Electrical Connection Options Chart" to complete
installation for your type of electrical connection.
Electrical Connection Options Chart
For cooktops with a 4-wire cable:
If your home has: If your cooktop has:
4-wire 4-wire
½"
3-wire
(1.3 cm)
For cooktops with a 3-wire cable:
3-wire 4-wire
½"
(1.3 cm)
3-wire
Go to Section:
4-Wire Cable
from Home
Power Supply to
4-Wire Cable
¹⁄₂"
from Cooktop
(1.3 cm)
4-Wire Cable
from Home
Power Supply to
3-Wire Cable
¹⁄₂"
(1.3 cm) from Cooktop
3-Wire Cable
from Home
Power Supply to
4-Wire Cable
¹⁄₂"
from Cooktop
(1.3 cm)
3-Wire Cable
from Home
Power Supply to
3-Wire Cable
¹⁄₂"
from Cooktop
(1.3 cm)
