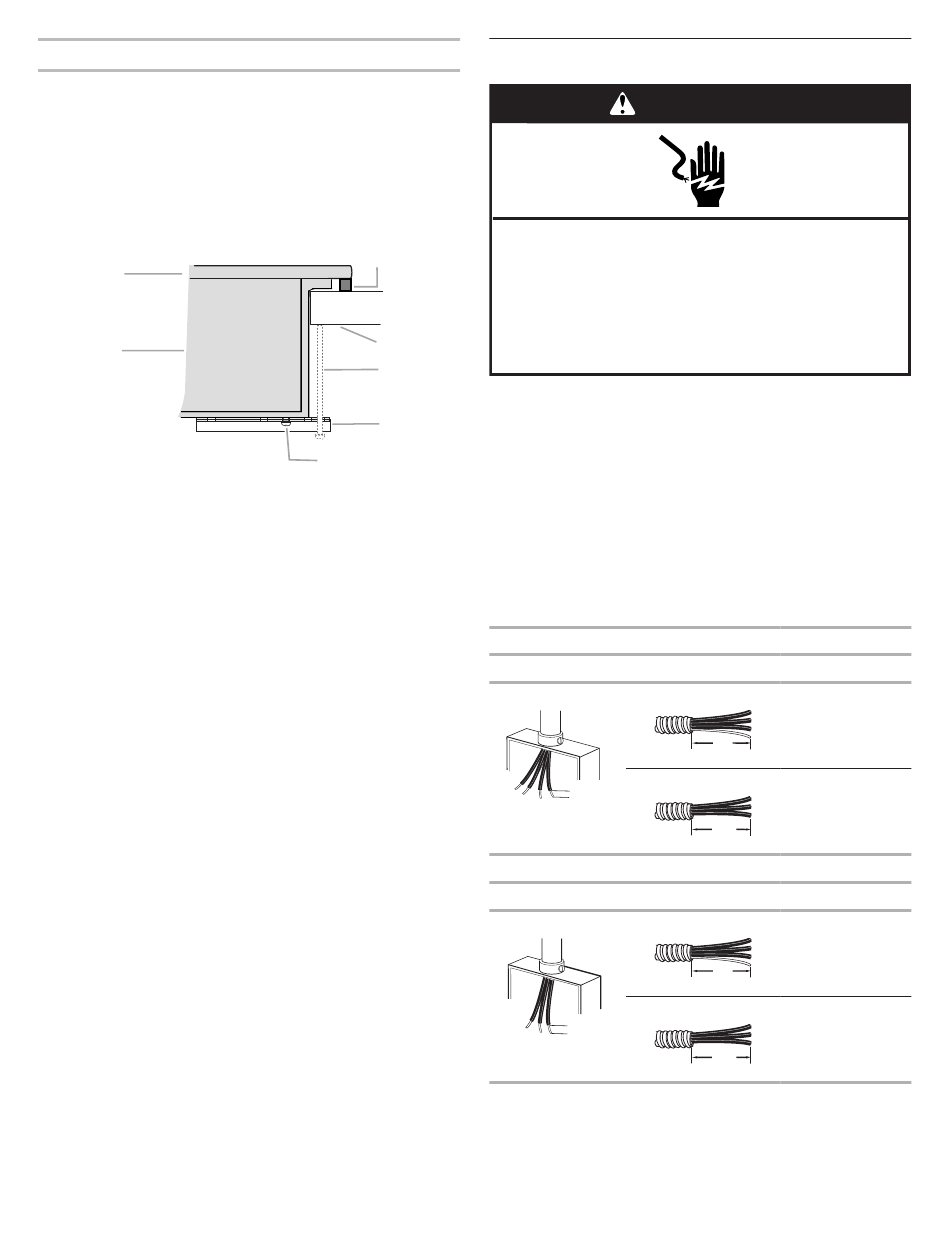

Installing Brackets After Placing Cooktop in Cutout
1. Using 2 or more people, place cooktop in cutout.
NOTE: Make sure that the front edge of the cooktop
is parallel to the front edge of the countertop. If
repositioning is needed, lift entire cooktop up from
cutout to avoid scratching the countertop.
2. Remove the attachment screws for the selected bracket
locations from the bottom of the cooktop base.
3. Select bracket mounting holes that will allow the bracket to
extend far enough out from the cooktop for the installation of
2 / " (6.4 cm) clamping screws.
1
2
A
B
A. Glass cooktop
B. Cooktop base
C. Attachment screw
D. Clamp bracket (extends far
enough beyond cooktop
base to allow installation
of clamping screws)
4. Attach brackets to bottom of cooktop base with bracket
attachment screws using the bracket mounting holes
selected in Step 3. Securely tighten screws.
6
G
F
E
D
C
E. 2 / " (6.4 cm) clamping
1
2
screw (to be installed
in "Attach Cooktop to
Countertop" section)
F. Countertop
G. Foam seal

Make Electrical Connection

WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 12 gauge copper wire.
Electrically ground cooktop.
Failure to follow these instructions can result in death,
fire, or electrical shock.
This cooktop is manufactured with a frame-connected, green or
bare ground wire. Connect the cooktop cable to the junction box
through the UL listed or CSA approved conduit connector.
1. Disconnect power.
2. Remove junction box cover, if present.
3. Connect the flexible cable conduit from the cooktop
to the junction box using a UL listed or CSA approved
conduit connector.
4. Tighten screws on conduit connector, if present.
5. See "Electrical Connection Options Chart" to complete
installation for your type of electrical connection.
Electrical Connection Options Chart
For cooktops with a 4-wire cable:
If your home has: If your cooktop has:
4-wire 4-wire
3-wire
½"
(1.3 cm)
For cooktops with a 3-wire cable:
If your home has: If your cooktop has:
3-wire 4-wire
3-wire
½"
(1.3 cm)
Go to section:
4-Wire Cable
from Home
Power Supply
to 4-Wire Cable
¹⁄₂"
from Cooktop
(1.3 cm)
4-Wire Cable
from Home
Power Supply
to 3-Wire Cable
¹⁄₂"
(1.3 cm)
from Cooktop
Go to section:
3-Wire Cable
from Home
Power Supply
to 4-Wire Cable
¹⁄₂"
from Cooktop
(1.3 cm)
3-Wire Cable
from Home
Power Supply
to 3-Wire Cable
¹⁄₂"
(1.3 cm) from Cooktop
