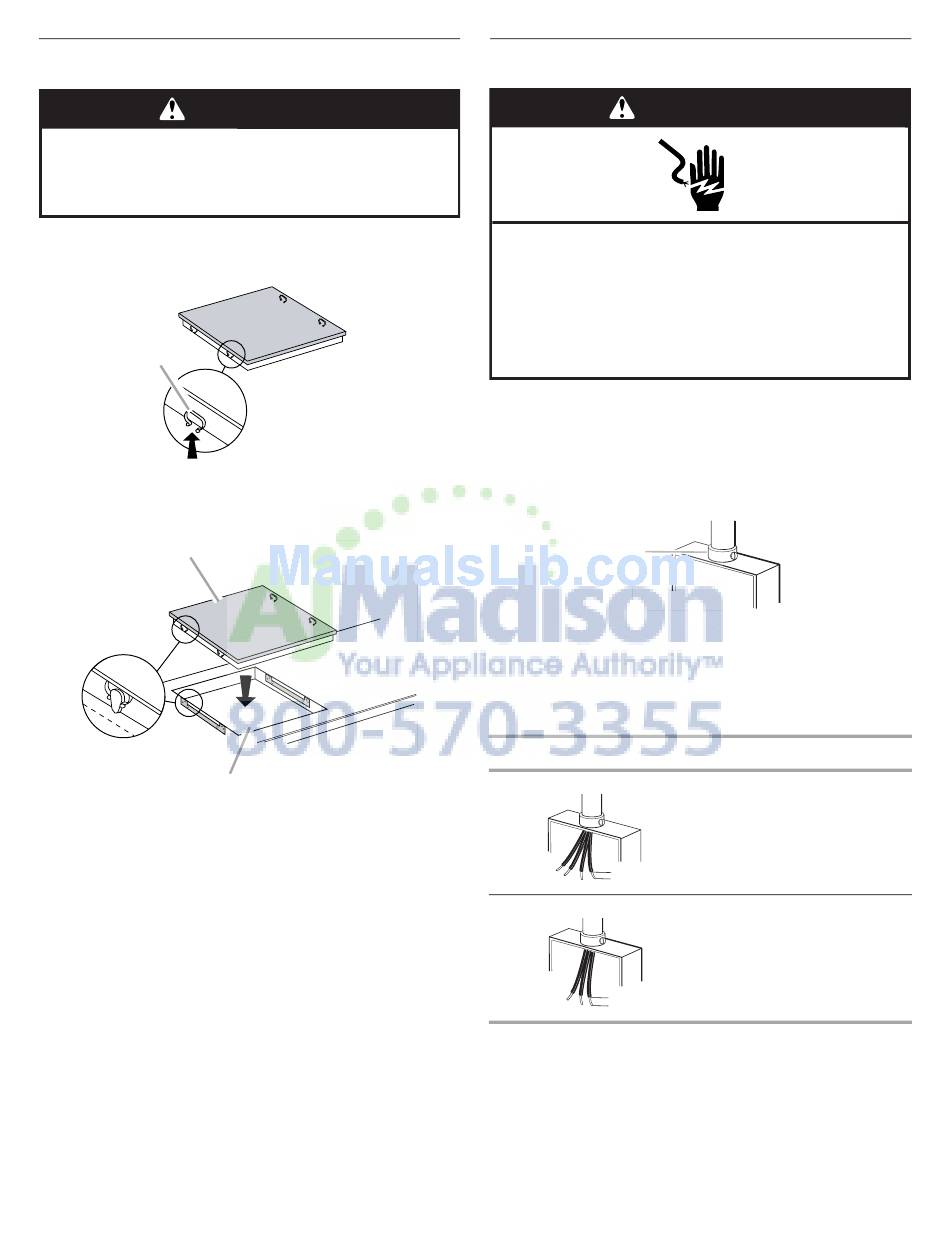

Install Cooktop

WARNING
Excessive Weight Hazard
Use two or more people to move and install cooktop.
Failure to do so can result in back or other injury.
1. Using 2 or more people, lower the cooktop into the cutout
making sure the clips on each side of the cooktop line up with
the brackets in the cutout.
A
A. Clip
2. Push down on cooktop to snap the cooktop clips onto the
brackets installed in the cutout.
A
A. Cooktop
B. Cooktop cutout
B

Make Electrical Connection

WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper wire.
Electrically ground cooktop.
Failure to follow these instructions can result in death,
fire, or electrical shock.
This cooktop is manufactured with a frame-connected, green (or
bare) ground wire.
1. Disconnect power.
2. Remove junction box cover if it is present.
3. Connect the flexible cable conduit from the cooktop to the
junction box using a UL listed or CSA approved conduit
connector.
A
A. UL listed or CSA approved conduit connector
4. Tighten screws on conduit connector if present.
5. See "Electrical Connection Options Chart" to complete
installation for your type of electrical connection.
Electrical Connection Options Chart
If your home has:
4-wire
½"
(1.3 cm)
3-wire
½"
(1.3 cm)
Go to Section:
4-Wire Cable from Home
Power Supply
3-Wire Cable from Home
Power Supply
