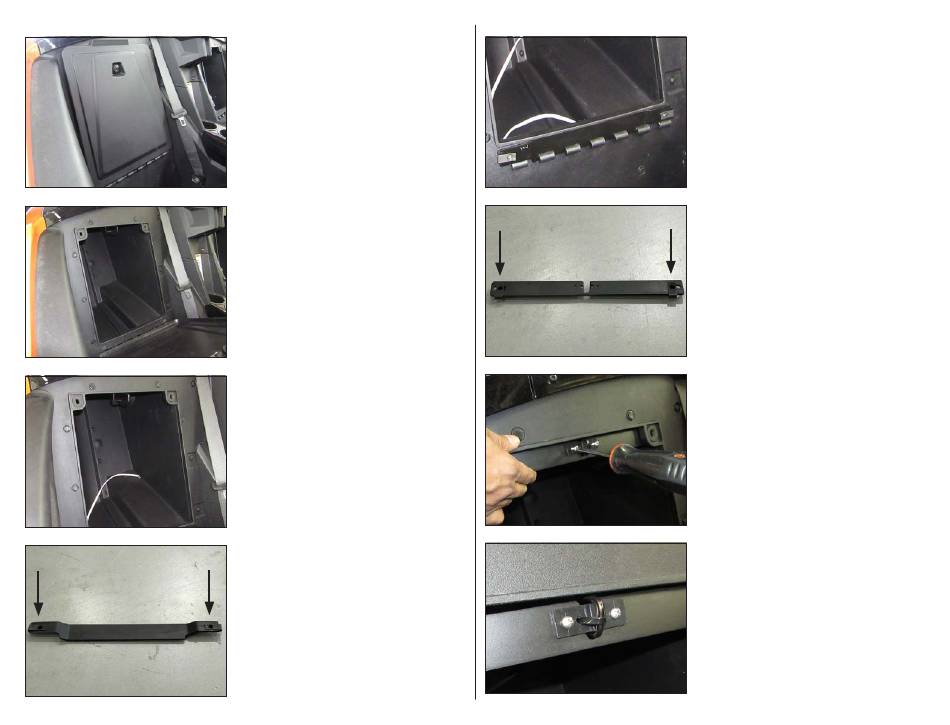

S T E P 1
Slide the seat forward.
S T E P 2
Open the storage compartment, and remove
the compartment door.
S T E P 3
Route speaker cable into the storage
compartment.
S T E P 4
Slide an M6 - 1 U-Nut over each of the holes
in the Bottom Bracket, as shown. Be sure the
U-Nuts are oriented outward.
SB-POL-SLINGSUBP/10W3v3 INSTR_SKU# 011483
S T E P 5
Position the Bottom Bracket assembly behind
the hinge, under the storage compartment, as
shown. The center, flat section of the Bottom
Bracket should be placed against the rear
plastic panel. Center the Bottom Bracket below
the storage compartment opening.
S T E P 6
Slide an M6 - 1 U-Nut over each of the outer
holes in the Top Bracket, as shown. Be sure the
U-Nuts are oriented downward.
S T E P 7
Position the Top Bracket assembly behind the
rear plastic panel, with its center cutout around
the compartment latch, as shown. Position the
ABS Plate between the Top Bracket and the
compartment latch, aligning the holes in both
parts.
Secure with a pair of 8 - 32 x 1/2" Pan Head
Phillips Machine Screws, as shown.
S T E P 8
From inside the storage compartment, pass
the Nylon Cable Tie through one of the inner
holes in the Top Bracket and ABS Plate, around
the front of the compartment latch, and back
through the opposite inner hole in the ABS
Plate and Top Bracket, into the storage
compartment, as shown.
Continued on Next Page
