Owner's Manual and Assembly Instructions
(2-Person Assembly Recommended)
Model #: W461P-01, W461P-02, W461P-03, W461P-04，W461-P-F-TL
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Scan here
to view the
assembly video

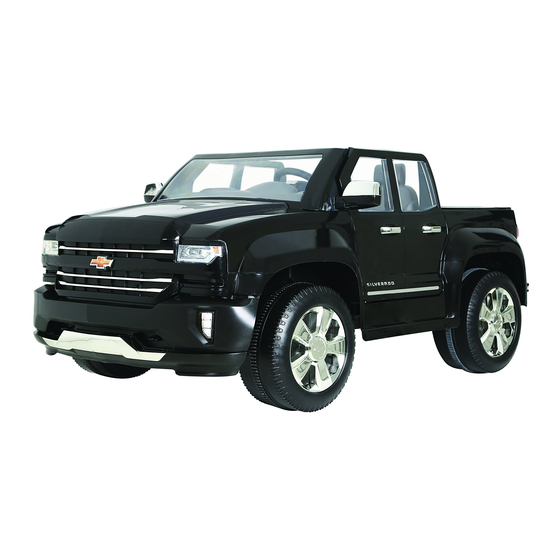

12V Chevy Silverado

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W461P-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Rollplay W461P-01

Summary of Contents for Rollplay W461P-01

  • Page 1 12V Chevy Silverado Owner’s Manual and Assembly Instructions (2-Person Assembly Recommended) Model #: W461P-01, W461P-02, W461P-03, W461P-04，W461-P-F-TL Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions.
  • Page 2 Introduction Thank you for purchasing this vehicle from Rollplay. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase.
  • Page 3 Contact Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt and register your product at www.rollplay.com as we may require proof of purchase. customerservice@rollplay.com 1-888-982-9309...

  • Page 4: Table Of Contents

    Table of Contents Safety ............5 Parts ............7 Charging Instructions .......8 Assemble the Rear Support Bars ....9 Install the Rear Support Bars ....10 Install the Rear Wheel Axle .....11 Install the Gear Boxes ......12 Assemble the Rear Wheels .....13 Assemble the Front Wheels ....14 Attach the Truck Bed ......15 Attach the Mirrors ........16 Attach the Windshield and Dashboard ..17...

  • Page 5: Safety

    Safety WARNING: SAFETY RIDING RULES PREVENT INJURIES AND DEATHS: NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in vehicle. Direct adult supervision is REQUIRED. NEVER use on roadways, near cars, on or near steep inclines or steps, swimming pools or other bodies of water.
  • Page 6 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead compound chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. • Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs.

  • Page 7: Parts

    Parts Not Included: • Phillips screwdriver • 2 AA batteries 1. Gear Box ( x 2 ) 15. Rear Wheels ( x 2 ) 2. 12V Battery 16. Windshield & Dashboard 3. Right Mirror 17. Steering Wheel 4. Left Mirror 18.

  • Page 8: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. Connect the Battery: 1. Ensure the vehicle is stopped and turned off. 2. Unlock and remove the seat. 3.

  • Page 9: Assemble The Rear Support Bars

    Assemble the Rear Support Bars L(9) Support Lateral Bar (10) R(8) 2-Person Assembly Recommended 1. Locate the right (8) and left (9) support bars and the support lateral bar (10) 2. Insert the rear support lateral bar (10) into the square slots on the rear support side bars (8,9) 3.

  • Page 10: Install The Rear Support Bars

    Install the Rear Support Bars avoid any scratches or damage) 2. Slide the assembled rear support bars (8,9,10) into the square holes on the back of the truck body 3. Align the screw holes on the support bars with the holes on the truck body 4.

  • Page 11: Install The Rear Wheel Axle

    Install the Rear Wheel Axle (11) 1. Locate the rear wheel axle (11) 2. Remove the nut and washer from both sides of the rear axle 3. Slide the rear axle horizontally through the rear support system as pictured 4. Make sure the axle is centered before and during rear wheel installation...

  • Page 12: Install The Gear Boxes

    Install the Gear Boxes 1. With the truck body still on its back, locate the two holes on either side of the truck body with the white gearbox connector and yellow gearbox connector 2. Slide the left gear box (1) onto the rear axle with the white gears facing out completely into the hole that leads to the battery compartment.

  • Page 13: Assemble The Rear Wheels

    Assemble the Rear Wheels Helpful Tip: wheels onto the rear axle, then your rear wheel axle may need to be realigned. Remove both wheels from the rear wheel axle. Using two hands, push down on the rear wheel axle and slide it gently toward the side of the vehicle that needs more room.

  • Page 14: Assemble The Front Wheels

    Assemble the Front Wheels 1. Slide a thick washer onto the front axle 2. Slide the front wheel (14) onto the front axle. The concave side should face inward 3. Slide the thin washer onto the front axle 4. Using the hex wrench (22), fasten the nut on the end of the axle and tighten until you can not tighten any more 5.

  • Page 15: Attach The Truck Bed

    Attach the Truck Bed main harness gear box connector Helpful Tip: Ensure the grey battery connector is connected to the grey engine connector Ensure the white gear box connector is connected to the white engine connector Ensure the yellow gear box connector is connected to the yellow engine connector.

  • Page 16: Attach The Mirrors

    Attach the Mirrors 1. Remove the mirrors (3,4) from the plastic bags 2. Align the hole on the mirror with the hole on the truck 3. Insert the screw into the hole and fasten the nut with a screwdriver to secure the mirror 4.

  • Page 17: Attach The Windshield And Dashboard

    Attach the Windshield and Dashboard 1. Attach the 2 wire connectors coming from the dashboard (16) body (located in the dashboard) to the 2 wire connectors attached to the truck body. 2. Match the plastic inserts on the dashboard with the four slots on the truck body and insert into the truck body at a 45 degree angle.

  • Page 18: Attach The Steering Rod

    Attach the Steering Rod 1. Locate the steering rod (23). 2. Insert the straight end of the steering rod into the steering rod hole on the underside of the dashboard. The steering rod should slide all the way through the dashboard. 3.

  • Page 19: Assemble The Steering Wheel

    Assemble the Steering Wheel Helpful Tip: WARNING Have one person hold the steering rod in place to prevent it from When replacing AA batteries, always replace both sliding down while the other person batteries at the same time. Do not mix old batteries with attaches the steering wheel new batteries or batteries of different types.

  • Page 20: Attach The Doors

    Attach the Doors Truck frame post 1. Align the doors (5,6) with the interior facing the inside of the truck 2. Position the hole on the door over the hole on the truck body and slide the post on the bottom of the door into the hole on the truck body side 3.

  • Page 21: Attach The Tailgate

    Attach the Tailgate 1. Keeping the tailgate (18) horizontal, align the tailgate with the holes on the truck bed 2. Once the tailgate is completely aligned with the slots on the bed, lift the bed door up until it clicks into place...

  • Page 22: Battery Attachment

    Battery Attachment 1. Attach the battery connector to the engine connector. Place the connectors and wires in the slot area be charged for a full 24 hours...

  • Page 23: Attach The Seat / Fasten Seatbelt

    Attach the Seat / Fasten Seatbelt 1. Align the seat (7) over the battery compartment 2. Ensure the locking mechanism aligns with the holes 3. Slide the hooks onto the back of the seat into the slots on the truck body 4.

  • Page 24: Operation Instructions

    Operation Instructions shift base screw 1. Press the left and right steering wheel buttons for horn (a) and engine sounds (b). 2. Turn the power switch to turn on the truck. Turn the power switch again to turn off the truck. The vehicle automatically powers down after two hours of inactivity.

  • Page 25: Maintenance

    Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • time. • Recharge the battery immediately after each use. Charge for at least 8-12 hours, but no more than 20 hours.

  • Page 26: General Care

    General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 30 for more information.

  • Page 27: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped This product uses a recoverable fuse which will automatically cut power to the truck if the current is recover and properly function again in 5 to 10 seconds...
  • Page 28 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Customer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.

  • Page 29: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 30: Service And Repairs

    Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com Web: www.rollplay.com For a list of available replacement parts, please visit www.rollplay.com. WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales receipt and register your product at www.rollplay.com...

  • Page 31: Warranty

    This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you.

  • Page 32: Product Registration

    Product Registration First Name: Last Name: Title: Address: City: State: Zip Code: Email: Phone: Date of Purchase: Product Name: Model Number: Serial Number: Retailer Place of Purchase: Questions or comments? Contact us at www.rollplay.com or 1-888-982-9309...
