- Page 1 Video Wall Controller LM-TV20 User Manual...
-
Page 2: Table Of Contents
Catalog . Installation instructions ………………………………………… 2 . Product overview ……………………………………………… 4 . Remote control ………………………………………………… 6 . Button panel …………………………………………………… 6 . Equipment installation ………………………………………… 7 . Parameter setting ……………………………………………… 8 . USB function ………………………………………………… 11 . RS-232 control ………………………………………………… 12 .SPECIFICATION…………………………………………………... -
Page 3: Installation Instructions
. Installation instructions For the safety of your equipment, please read the safety instructions carefully before using this device. If you are in doubt, please read this manual first. In this manual list has detailed description of the equipment operation. If you are still have a question, please contact us, we will give you a satisfactory answer as soon as possible. - Page 4 moisture, in particular, to prevent the liquid immersion and splash into the device. 7. Repairs: All maintenance work should be done by professional maintenance personnel, and not to try to repair the equipment without training. To prevent electric shock, do not open the shell. Safety precautions: 1.
-
Page 5: Product Overview

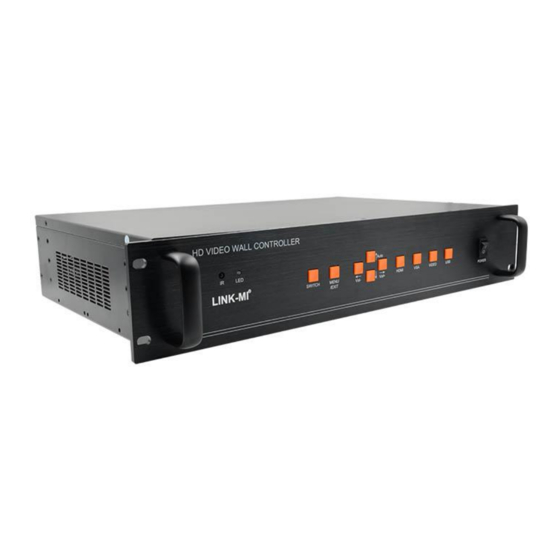

does not work should immediately unplug the power supply, by professional personnel; This device is not suitable for non professional operation and commissioning, users must receive professional training and guidance. Please read the instruction carefully before use, and the instruction should be kept for use. . - Page 6 2.Machine pictures and dimensions Size: 482mm(L)*283mm(w)*88mm(D) (with Tripod) 440mm(L)*283mm(w)*88mm(D) (without Tripod)
-
Page 7: Remote Control
3.PANEL DESCRIPTIONS . Remote control 1. Remote control function: User operate the remote control the mosaic screen, it can setting full function by remote, like user operate remote for TV, very easy and simple. -
Page 8: Th . Button Panel
2. remote control buttons function diagram: . Button panel SWITCH: mosaic on/off MENU Vol-： Volume reduce Vol+:Volume increase DOWN HDMI:HMDI input VGA:VGA input VIDEO:AV input USB:USB channel... -
Page 9: Th . Equipment Installation
. Equipment installation 1. Open the package Check host and accessories. Including mainframe, power, remote control, warranty card, certificate, manual. 2. Installation machine 2.1. TV set: the LCD TV or other display device input signal is set into the corresponding HDMI channel; 2.2. -
Page 10: Th . Parameter Setting
This machine support 1 USB, 1 HDMI, 1 VGA, 1 AV input, all inputs are embedded or bound to audio input, user can access all the signals or access to some of the signal, the input interface such as: USB interface: can be directly inserted into the USB disk, embedded audio, you can play video, pictures, TXT documents, MP3 inside of the USB disk ;... - Page 11 screen frame caused by image distortion and other issues, this time we also need to set up the parameters of the mosaic through the menu keys (MENU), so we need to be familiar with the operation of the menu. Press the MENU key, then press the left button to press the left button to come out a few different Menu 1, 3, 4 categories of the factory has been set as the best recognized state, do not need to change, we need only to set...
- Page 12 unit connect to the HDMI1 interface,user move the cursor to the mosaic mac address and press left or right,this display unit will display mosaic mac address:1 6. Soft Address setting 1 This address can be changed,change the one display unit soft address,the display unit display different video.
-
Page 13: Th . Usb Function
to adapt to different display devices. You can press “7” on the remoter choose different resolution. 10. Out Type Can be set HDMI or DVI model.if you set HDMI model,the HDMI port will output audio;if you set DVI model,the HDMI port will not output audio.But A-out is analog audio output port,no mater HDMI or DVI model,it have audio output.If your monitor only support DVI model,you must choose DVI output,if your monitor... - Page 14 Band rate:115200 Data Bit:8 Check Bit:None Stop Bit:1 AV： 0Xff,0Xf7,0x5a,0x00,0x30,0x00,0x80 VGA： 0Xff,0Xf7,0x5a,0x00,0x31,0x00,0x81 HDMI： 0Xff,0Xf7,0x5a,0x00,0x32,0x00,0x82 USB： 0Xff,0Xf7,0x5a,0x00,0x33,0x00,0x83 HDMI output 1080P： 0Xff,0Xf7,0x5a,0x00,0x34,0x00,0x84 HDMI output 720P： 0Xff,0Xf7,0x5a,0x00,0x35,0x00,0x85 HDMI output 1024*768： 0Xff,0Xf7,0x5a,0x00,0x3b,0x00,0x8b Mosaic display mode： 0Xff,0Xf7,0x5a,0x00,0x36,0x00,0x86 Unit display mode： 0Xff,0Xf7,0x5a,0x00,0x37,0x00,0x87...
-
Page 15: Th Specification
SPECIFICATION SHENZHEN LINK-MI TECHNOLOGY CO.,LTD E-mail: sales@link-mi.com WWW.LINK-MI.COM...
