- Page 1 Video Wall Controller LM-TV16 User Manual...
-
Page 2: Table Of Contents
Catalog . Installation instructions ………………………………………… 2 . Product overview ……………………………………………… 4 . Remote control ………………………………………………… 6 . Button panel …………………………………………………… 6 . Equipment installation ………………………………………… 7 . Parameter setting ……………………………………………… 8 . USB function ………………………………………………… 11 . RS-232 control ………………………………………………… 12... -
Page 3: Installation Instructions
. Installation instructions For the safety of your equipment, please read the safety instructions carefully before using this device. If you are in doubt, please read this manual first. In this manual list has detailed description of the equipment operation. If you are still have a question, please contact us, we will give you a satisfactory answer as soon as possible. - Page 4 training. To prevent electric shock, do not open the shell. Safety precautions: 1. The equipment has a high voltage power, non professional maintenance personnel shall not open the case, so as to avoid dangerous; 2, No water or water splashing, It is strictly prohibited on the device to put any containers of liquid containers;...
-
Page 5: Product Overview

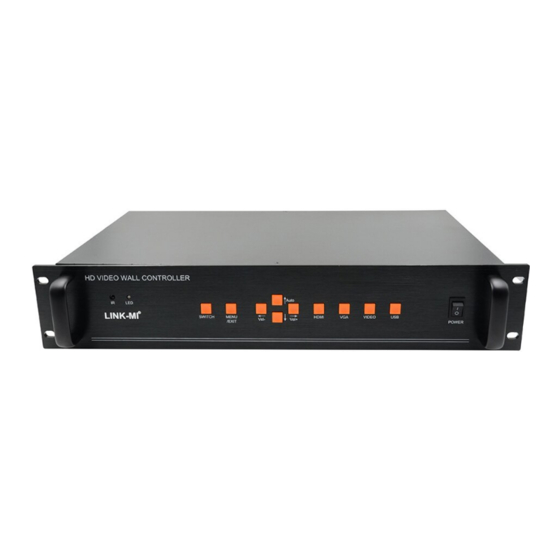

Please read the instruction carefully before use, and the instruction should be kept for use. . Product overview 1. overview: This video wall controller is for LCD TV, ultra narrow side LCD screen, projector and so on, high-definition picture mosaic processor can be customized according to user needs 1 to 25 HDMI output splicing. - Page 6 2.System topology diagram 3.Machine pictures and dimensions...
-
Page 7: Remote Control
Size: 482mm(L)*283mm(w)*88mm(D) (with Tripod) 440mm(L)*283mm(w)*88mm(D) (without Tripod) . Remote control 1. Remote control function: User operate the remote control the mosaic screen, it can setting full function by remote, like user operate remote for TV, very easy and simple. 2. remote control buttons function diagram:... -
Page 8: Th . Equipment Installation
. Button panel SWITCH: mosaic on/off MENU LEFT： Volume reduce RIGHT:Volume increase DOWN HDMI:HMDI input VGA:VGA input VIDEO:AV input USB:USB channel . Equipment installation 1. Open the package Check host and accessories. Including mainframe, power, remote control, warranty card, certificate, manual. 2. - Page 9 2.3. Input signal interface This machine support 1 USB, 1 HDMI, 1 VGA, 1 AV input, all inputs are embedded or bound to audio input, user can access all the signals or access to some of the signal, the input interface such as: USB interface: can be directly inserted into the USB disk, embedded audio, you can play video, pictures, TXT documents,...
-
Page 10: Th . Parameter Setting
2.5. Power on After all cable is connected, insert the AC power supply, turn on the power switch, the power indicator light is green, that the device is working. . Parameter setting Complete splicing device installation and connection, open the switch will appear or display a black screen image signal. - Page 11 2. Restore Factory default Usually do not need to set up, if the user debugging is more messy, you can try to use the reset factory settings. 3. Mosaic on Move the cursor to the Mosaic,press left or right to choose open mosaic or off,same as switch on the remote.
-
Page 12: Th . Usb Function
LCD screen of the physical gap lead to complete image is strong pull off a moment, make the image deformation, distortion, use for adjusting the size of the jointing horizontal and vertical assembly size the image loss of a part of, but keep images without distortion and distortion, as shown below: 9. -
Page 13: Th . Rs-232 Control
document, MP3 content, you can press the remote control to return the keys and then re enter the play folder, press the play / pause button to play all of the content, or through the navigation keys to select some of the contents of the OK. Normal playback state according to the remote OK key can be transferred out of the fast forward, slow progress, a song, a song pause, image playback mode. - Page 14 HDMI output 1080P： 0Xff,0Xf7,0x5a,0x00,0x34,0x00,0x84 HDMI output 720P： 0Xff,0Xf7,0x5a,0x00,0x35,0x00,0x85 HDMI output 1024*768： 0Xff,0Xf7,0x5a,0x00,0x3b,0x00,0x8b Mosaic display mode： 0Xff,0Xf7,0x5a,0x00,0x36,0x00,0x86 Unit display mode： 0Xff,0Xf7,0x5a,0x00,0x37,0x00,0x87 SHENZHEN LINK-MI TECHNOLOGY CO.,LTD E-mail: sales@link-mi.com WWW.LINK-MI.COM...
