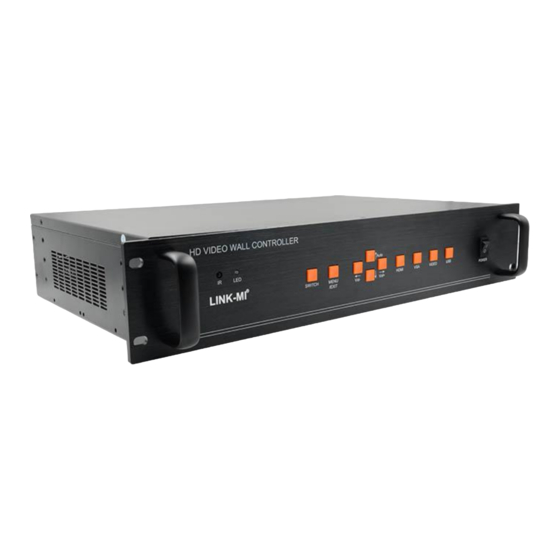

- Page 1 Video Wall Controller LM-TV18 User Manual...
-
Page 2: Table Of Contents
Catalog . Installation instructions ………………………………………… 2 . Product overview ……………………………………………… 4 . Remote control ………………………………………………… 6 . Button panel …………………………………………………… 6 . Equipment installation ………………………………………… 7 . Parameter setting ……………………………………………… 8 . USB function ………………………………………………… 11 . RS-232 control ………………………………………………… 12 .SPECIFICATION…………………………………………………... -
Page 3: Installation Instructions
. Installation instructions For the safety of your equipment, please read the safety instructions carefully before using this device. If you are in doubt, please read this manual first. In this manual list has detailed description of the equipment operation. If you are still have a question, please contact us, we will give you a satisfactory answer as soon as possible. - Page 4 moisture, in particular, to prevent the liquid immersion and splash into the device. 7. Repairs: All maintenance work should be done by professional maintenance personnel, and not to try to repair the equipment without training. To prevent electric shock, do not open the shell. Safety precautions: 1.
-
Page 5: Product Overview
does not work should immediately unplug the power supply, by professional personnel; This device is not suitable for non professional operation and commissioning, users must receive professional training and guidance. Please read the instruction carefully before use, and the instruction should be kept for use. . - Page 6 2.System topology diagram...
- Page 7 2.Machine pictures and dimensions Size: 482mm(L)*283mm(w)*88mm(D) (with Tripod) 440mm(L)*283mm(w)*88mm(D) (without Tripod) 3.PANEL DESCRIPTIONS...
-
Page 8: Remote Control
. Remote control 1. Remote control function: User operate the remote control the mosaic screen, it can setting full function by remote, like user operate remote for TV, very easy and simple. 2. remote control buttons function diagram:... -
Page 9: Th . Button Panel
. Button panel SWITCH: mosaic on/off MENU Vol-： Volume reduce Vol+:Volume increase DOWN HDMI:HMDI input VGA:VGA input VIDEO:AV input USB:USB channel . Equipment installation... - Page 10 1. Open the package Check host and accessories. Including mainframe, power, remote control, warranty card, certificate, manual. 2. Installation machine 2.1. TV set: the LCD TV or other display device input signal is set into the corresponding HDMI channel; 2.2. HDMI Output and TV connection HDMI1 connect to LCD1(Display 1);...
-
Page 11: Th . Parameter Setting
all the signals or access to some of the signal, the input interface such as: USB interface: can be directly inserted into the USB disk, embedded audio, you can play video, pictures, TXT documents, MP3 inside of the USB disk ; HDMI interface: can be connected to the computer, players and other HDMI output device, embedded audio;... - Page 12 the menu keys (MENU), so we need to be familiar with the operation of the menu. Press the MENU key, then press the left button to press the left button to come out a few different Menu 1, 3, 4 categories of the factory has been set as the best recognized state, do not need to change, we need only to set menu 2: 1.
- Page 13 will display mosaic mac address:1 6. Soft Address setting 1 This address can be changed,change the one display unit soft address,the display unit display different video. Such as 3*3 mode: 7. Mirror That is the rotation of 180 degrees, a lot of LCD TV due to the narrow width of the border, a row when the wall is a row of flip upside down, through the mirror function can be individually set each screen is rotated 180 degrees.
-
Page 14: Th . Usb Function
10. Out Type Can be set HDMI or DVI model.if you set HDMI model,the HDMI port will output audio;if you set DVI model,the HDMI port will not output audio.But A-out is analog audio output port,no mater HDMI or DVI model,it have audio output.If your monitor only support DVI model,you must choose DVI output,if your monitor only support HDMI model,you must choose HDMI output.you can press “9”... - Page 15 Band rate:115200 Data Bit:8 Check Bit:None Stop Bit:1 AV： 0Xff,0Xf7,0x5a,0x00,0x30,0x00,0x80 VGA： 0Xff,0Xf7,0x5a,0x00,0x31,0x00,0x81 HDMI： 0Xff,0Xf7,0x5a,0x00,0x32,0x00,0x82 USB： 0Xff,0Xf7,0x5a,0x00,0x33,0x00,0x83 HDMI output 1080P： 0Xff,0Xf7,0x5a,0x00,0x34,0x00,0x84 HDMI output 720P： 0Xff,0Xf7,0x5a,0x00,0x35,0x00,0x85 HDMI output 1024*768： 0Xff,0Xf7,0x5a,0x00,0x3b,0x00,0x8b Mosaic display mode： 0Xff,0Xf7,0x5a,0x00,0x36,0x00,0x86 Unit display mode： 0Xff,0Xf7,0x5a,0x00,0x37,0x00,0x87...
-
Page 16: Th Specification
