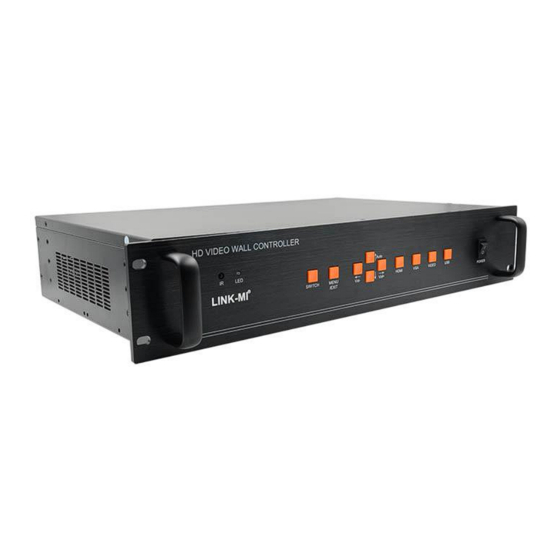

- Page 1 Video Wall Controller LM-TV25 User Manual...
-
Page 2: Table Of Contents
Catalog . Installation instructions ………………………………………… 2 . Product overview ……………………………………………… 4 . Remote control ………………………………………………… 6 . Button panel …………………………………………………… 6 . Equipment installation ………………………………………… 7 . Parameter setting ……………………………………………… 8 . USB function ………………………………………………… 11 . RS-232 control ………………………………………………… 12 .SPECIFICATION…………………………………………………... -
Page 3: Installation Instructions
. Installation instructions For the safety of your equipment, please read the safety instructions carefully before using this device. If you are in doubt, please read this manual first. In this manual list has detailed description of the equipment operation. If you are still have a question, please contact us, we will give you a satisfactory answer as soon as possible. - Page 4 moisture, in particular, to prevent the liquid immersion and splash into the device. 7. Repairs: All maintenance work should be done by professional maintenance personnel, and not to try to repair the equipment without training. To prevent electric shock, do not open the shell. Safety precautions: 1.
-
Page 5: Product Overview
does not work should immediately unplug the power supply, by professional personnel; This device is not suitable for non professional operation and commissioning, users must receive professional training and guidance. Please read the instruction carefully before use, and the instruction should be kept for use. . - Page 6 2.Machine pictures and dimensions...
-
Page 7: Remote Control
Size: 482mm(L)*283mm(w)*88mm(D) (with Tripod) 440mm(L)*283mm(w)*88mm(D) (without Tripod) 3.PANEL DESCRIPTIONS . Remote control 1. Remote control function: User operate the remote control the mosaic screen, it... - Page 8 can setting full function by remote, like user operate remote for TV, very easy and simple. 2. remote control buttons function diagram: . Button panel SWITCH: mosaic on/off MENU Vol-： Volume reduce Vol+:Volume increase DOWN...
-
Page 9: Th . Equipment Installation
HDMI:HMDI input VGA:VGA input VIDEO:AV input USB:USB channel . Equipment installation 1. Open the package Check host and accessories. Including mainframe, power, remote control, warranty card, certificate, manual. 2. Installation machine 2.1. TV set: the LCD TV or other display device input signal is set into the corresponding HDMI channel;... - Page 10 2.3. Input signal interface This machine support 1 USB, 1 HDMI, 1 VGA, 1 AV input, all inputs are embedded or bound to audio input, user can access all the signals or access to some of the signal, the input interface such as: USB interface: can be directly inserted into the USB disk, embedded audio, you can play video, pictures, TXT documents,...
-
Page 11: Th . Parameter Setting
2.4. Audio connection A-OUT for the audio output of the machine, it can connect with speaker or others. 2.5. Power on After all cable is connected, insert the AC power supply, turn on the power switch, the power indicator light is green, that the device is working. - Page 12 recognized state, do not need to change, we need only to set menu 2: 1. OSD Language Move the cursor to OSD Language,press left or right,then user can choose OSD language. 2. Restore Factory default Usually do not need to set up, if the user debugging is more messy, you can try to use the reset factory settings.
- Page 13 8. Horizontal 0 and Vertical mosaic pitch 0 LCD screen of the physical gap lead to complete image is strong pull off a moment, make the image deformation, distortion, use for adjusting the size of the jointing horizontal and vertical assembly size the image loss of a part of, but keep images without distortion and distortion, as shown below: 9.
- Page 14 Video:Decoding a lot of different formats of video files,like *.mp4/*.avi/*.mpeg/*.wmv/*rmvb and so on,video file up to 1920*1080 Audio: decoding MP3 and other formats audio files. Photo: decoding JPG and others. TXT: decoding TXT file. play all the video or need to play the picture, TXT document, MP3 content, you can press the remote control to return the keys and then re enter the play folder, press the play / pause button to play all of the content, or through the...
- Page 15 Check Bit:None Stop Bit:1 AV： 0Xff,0Xf7,0x5a,0x00,0x30,0x00,0x80 VGA： 0Xff,0Xf7,0x5a,0x00,0x31,0x00,0x81 HDMI： 0Xff,0Xf7,0x5a,0x00,0x32,0x00,0x82 USB： 0Xff,0Xf7,0x5a,0x00,0x33,0x00,0x83 HDMI output 1080P： 0Xff,0Xf7,0x5a,0x00,0x34,0x00,0x84 HDMI output 720P： 0Xff,0Xf7,0x5a,0x00,0x35,0x00,0x85 HDMI output 1024*768： 0Xff,0Xf7,0x5a,0x00,0x3b,0x00,0x8b Mosaic display mode： 0Xff,0Xf7,0x5a,0x00,0x36,0x00,0x86 Unit display mode： 0Xff,0Xf7,0x5a,0x00,0x37,0x00,0x87...
- Page 16 SHENZHEN LINK-MI TECHNOLOGY CO.,LTD E-mail: sales@link-mi.com WWW.LINK-MI.COM...
