Idea EVO8-P Quick Start Manual

EVO8-P
2 Way Bi-Amp Compact Line-Array System
Quick Start Guide

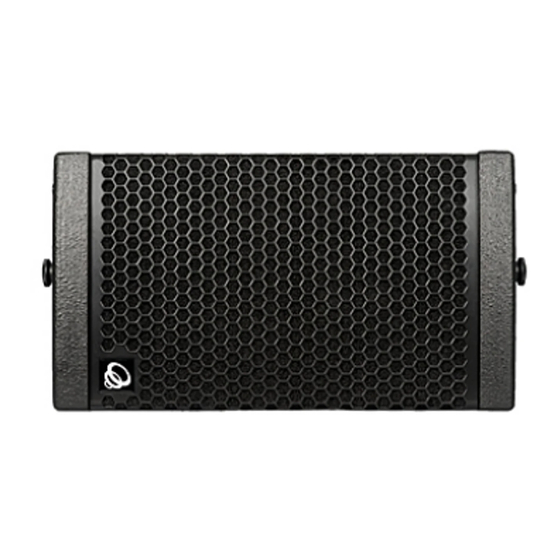

EVO8-P is an ideal line-array element for mobile and portable sound
reinforcement and those installations that need for a high SPL sound
system which can be discreetly integrated with the aesthetics of the
venue. The excellent power-density and scalability of EVO8-P make it
a perfect tool for a wide variety in professional sound reinforcement
applications.
EVO8-P line-array elements feature a HF assembly with a 70 W, 1,75"
compression driver and IDEA's proprietary Hi-Q 8-slot waveguide allowing
for minimum vertical gap between array elements and providing optimum
element coupling while reducing artifacts and DSP adjustments. For the
LF/MF sections, EVO8-P mounts a high-performance 2´5" voice-coil, 250
W 8" woofer.
Built in Europe using 15mm high quality birch plywood in heavily
internally braced solid loudspeaker cabinets, EVO8-P is treated with IDEA
proprietary Aquaforce weather resistant touring coating finish and is fitted
with an extra strong integral heavy duty 4-point steel rigging system.
