Idea EXO12 Quick Start Manual

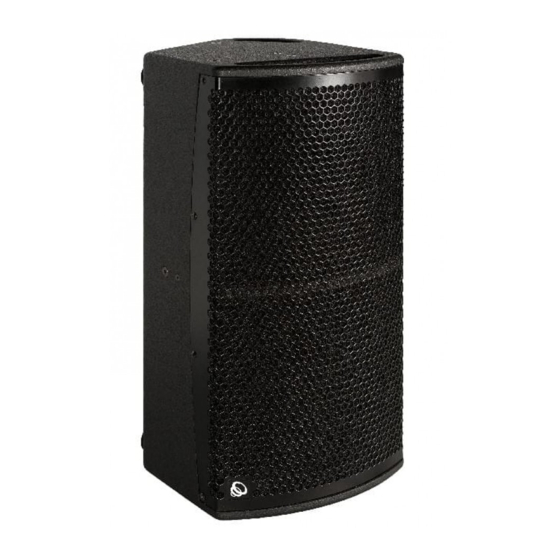

EXO12
2-Way Multipurpose Monitor
EXO12 is a versatile, high-performance full range 2-way passive
wedged monitor conceived for professional environments where
portable sound reinforcement is required, delivering a superior audio
reproduction in a very compact, multipurpose format.
EXO12 HF assembly couples a 3˝ compression driver into common
EXO Series birch plywood axisymmetric horn with IDEA's proprietary
design and a premium European, dedicated-design passive crossover
filter provides a smooth, natural transition intro the MLF 12˝ woofer and
summing up into a full-range superior audio playback along the whole
usable frequency range from 18 kHz down to 55 Hz.
Like all IDEA models, EXO12 is built with 15 and 18 mm birch plywood,
IDEA's Aquaforce waterproof paint coating and a high quality steel
grille, creating a rugged, durable and stylish loudspeaker.
The 60° wedged cabinet allows not only to be used as FOH main
system in small venues, bars and AV applications and as a stage
monitor but to seamlessly fit into any wall mount fixed installation.
EXO12 integrates a bottom Pole Mount 35 mm socket to be configured
on BASSO Series subwoofers for portable sound reinforcement and
medium performance venues and clubs. The dedicated U-bracket and
ten threaded M8 inserts allow for all vertical and horizontal U-bracket
positions both for wall and ceiling fixed installations as well as to be
precisely oriented in pole mounted configurations.
INSTALLATION ACCESSORIES
EXO12 is fitted with 10 threaded M8 inserts for hung permanent
installations as well as bottom 36 mm pole-mount socket that serves
for both pole mount configurations onto a BASSO Series subwoofer.
Examples showing
EXO12 in different setups
and configurations
Quick Start Guide
UB-E12-V
Optional Wall-Mount Accessory
The optional U-Bracket accessory
for EXO12 wall-mount installations
allows for different vertical
angulations. FIt the M8 bolts,
choose the proper vertical angle
and lock the position with a M6 bolt
per side.
1
