Idea EXO66-A Quick Start Manual

EXO66-A
Active Multipurpose High-Output Mini Monitor

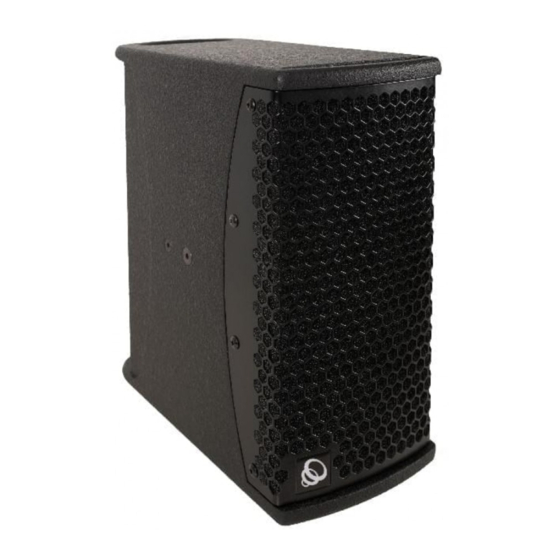

EXO66-A is a compact multipurpose active mini monitor conceived for
those applications in which high power-density with superior quality audio
reproduction and optimum, unobtrusive integration are required.
The design goal of EXO66-A is to tightly package the SPL of standard 10" in a
cabinet compact enough to be easily transported in mobile and portable sound
reinforcement applications and to be discreet and elegant in any installation
project (RAL colors available on demand), while using the same materials and
finish that are found in the Touring Sound larger loudspeaker systems of the
IDEA product portfolio.
EXO66-A features a 6.5" Coaxial and a high performance 6.5" woofer, in a very
tight, compact rear-ported cabinet. This configuration delivers pristine audio
clarity at any level with minimum distortion, making the EXO66-A a pleasure
to listen to, due to the excellent definition of the HF section and the natural fast
and controlled transient response of the custom 6.5" IDEA LF woofers, which
are some of the most powerful transducers of its kind available in the market
today.
EXO66-A integrates a Class-D dual-channel 1.2 kW power module and 24-bit
DSP with 4 selectable presets. This high efficiency, low consumption power
module features PFC (Power Factor Correction) for worldwide operation and
error proof connection to mains voltage. The rear panel features a rotary gain
control, balanced audio input and output XLR and PowerCON connections, led
activity indicators and a select pushbutton to toggle between the 4 preloaded
presets.
Together with BASSO24t-A or BASSO18-A, EXO66-A will turn into a really
versatile, powerful multipurpose combo for a variety of applications.
Entertainers, musicians and DJs benefit from the advantages of such power-
density, as much as AV rental companies, just like premium installations and
AV/Multimedia facilities find an excellent choice for superior audio reproduction
in the tiny, refined and powerful EXO66-A.
DSP/AMP POWERMODULE
EXO66-A integrates a Class-D 1.2 kW dual-channel power module and 24-bit
DSP with 4 selectable presets.
This high efficiency, low consumption power module features PFC (Power
Factor Correction) for worldwide operation and error proof connection to mains
voltage.
The rear pannel features a rotary gain control, balanced audio input and output
XLR and PowerCON connections, led activity indicators and a select pushbutton
to toggle between the 4 preloaded presets.
Quick Start Guide
FLAT
CLIP/TEMP
SIGNAL
120 HZ HPF
STATUS
HF BOOST
VOCAL
PRESET
SELECT
-∞ +6
LINK
INPUT
PRESET 1: Flat
PRESET 2: HF Boost
PRESET 3: Loudness
PRESET 4: Vocal
