Idea TEOd9 User Manual
  1. Manuals
  2. Brands
  3. Idea Manuals
  4. Speakers
  5. TEOd9
  6. User manual

Idea TEOd9 User Manual

4 in - 8 out professional loudspeaker management system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TEOd9
4 in - 8 out Professional Loudspeaker
Management System
User
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEOd9 and is the answer not in the manual?

Questions and answers

Related Manuals for Idea TEOd9

Summary of Contents for Idea TEOd9

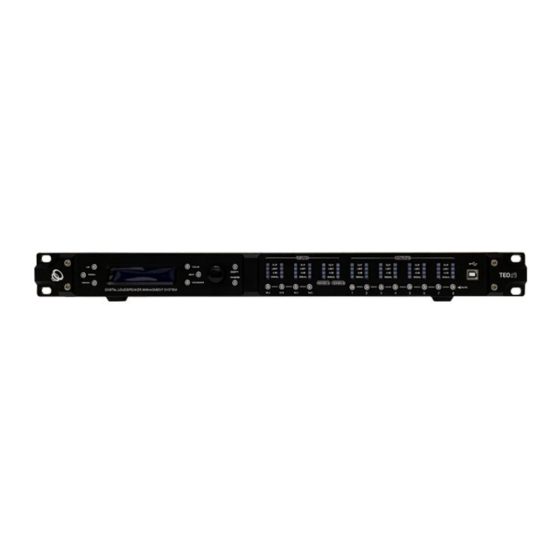

  • Page 1 TEOd9 4 in - 8 out Professional Loudspeaker Management System User Manual...

  • Page 2: Technical Drawings

    Overview TEOd9 is a four input, eight output professional Loudspeaker Management System. Available in four performance levels and using only the best sounding components available, its unrivalled audio quality and feature set match the highest standards. Features • Unparalleled audio quality •...

  • Page 3: Technical Data

    Technical Data Inputs Analog Inputs (electronically balanced) Dynamic Range typ. 135 dB(A) Max. Input Level +24 dBu Input Impedance (balanced) 21 kΩ Input Impedance (single ended) 10.5 kΩ Digital Inputs up to 6 Outputs Analog Outputs Dynamic Range typ. 120 dB(A) Maximum Output Level +18 dBu Output Level Selection (by software)

  • Page 4: Warranty

    Warranty All IDEA products are guaranteed against any manufacturing defect for a period of 2 years from date of purchase. The guarantee excludes damage from incorrect use of the product. Any guarantee repair, replacement and servicing must be exclu- sively done by the factory or any of authorized service centers.

  • Page 5: Safety Instructions

    Safety Instructions PLEASE, FOR YOUR PROTECTION, READ THE FOLLOWING: • This device shall not be exposed to dripping or splashing liquid and no object filled with liquid, such as vases, shall be • placed on the apparatus. • Clean only with a dry cloth. •...

  • Page 6: Power On/Off Switch

    POWER ON/OFF SWITCH If the equipment has a Power switch, the Power switch used in this piece of equipment DOES NOT break the connection from the mains. MAINS DISCONNECT The plug shall remain readily operable. For rack mount or installation where plug is not accessible, an all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated into the electrical installation of the rack or building.
  • Page 7 1.1.1. USB CONNECTOR The USB connector is used to connect the TEOd9 to a PC or MAC. It can then be configured and controlled in real time with the freely available PC and MAC configuration program. With this program you can also update your DSP to the latest firmware. Please check our website regularly for updates.

  • Page 8: Analog Inputs

    1.2 REAR PANEL 1.2.1. POWER CONNECTOR The TEOd9 has an internal power supply that will accept voltages ranging from 110V - 240V at frequencies from 50Hz-60Hz. An IEC cord is included. 1.2.2. POWER SWITCH The Power Switch turns the TEOd9 on and off. Note: we recommend that power amplifiers connected to the product should be powered down prior to turning on the TEOd9.

  • Page 9: Getting Started

    • 2.1.2.3. FIXED IP ADDRESS It is also possible to set a fixed IP address and subnet mask for the TEOd9. WARNING: If you set a wrong address (in a different range than your computer), you may not be able to connect anymore. It is STRONGLY RECOMMENDED to consult a system administrator before making such settings.

  • Page 10: System Setup And Gain Structure

    2.2. SYSTEM SETUP AND GAIN STRUCTURE This product offers a wide range of tools for sound system design and setup. These tools can make your system more efficient and better sounding, but to get the best possible sound it is important to use these tools properly. The following section explains how to maximize system gain and how to use the limiters to protect your amplifiers from clipping.

  • Page 11: Setup And Operation

    3.2.1. GAIN Adjust the gain by dialing the rotary encoder. The gain is adjusted in steps of 0.25dB. Smaller steps (0.01dB) can be set via the PC or MAC IDEA DSPControl software. 3.2.2. INPUT SELECTION Select the source (Analog or AES/EBU) by rotating the encoder.

  • Page 12: High Pass Filter

    3.2.5. HIGH PASS FILTER Adjust the high pass frequency by dialing the rotary encoder. You can switch the high pass filter off by dialing the rotary encoder down (counterclockwise) until the frequency passes 20Hz. Press the rotary encoder to change the filter type. Select the type by turning the rotary encoder. You can choose from: Butterworth 6dB, Bessel 6dB, Butterworth 12dB, Bessel 12dB, Linkwitz Riley12dB, Butterworth 18dB, Bessel 18dB, Butterworth 24dB and Bessel 24dB.

  • Page 13: Output Setup

    3.3. OUTPUT SETUP Press the Channel Up or Down button to select the output channel you wish to edit. Make the first settings with the output turned low or muted. To toggle through the different menus, press the Item Up or Item Down buttons. 3.3.1.
  • Page 14 3.3.6.PARAMETRIC EQUALIZER (PEQ) There are ten bands of parametric equalization. Each band can be adjusted freely over the complete frequency range of 20Hz to 20kHz. Adjust the frequency by dialing the rotary encoder. Press the rotary encoder to select the parameters. The available para- meters are: Frequency (20Hz to 20kHz), Gain (-12dB to +12dB), Q (0.2 to 25), Enabled (On or Off), Type (Bell, High Shelf, Low Shelf, Notch, All Pass, Band Pass, High Pass, Low Pass).

  • Page 15: System Menu

    3.4.3.ACCESS LEVEL The TEOd9 has the option of locking away the front panel controls to avoid tampering of settings by unauthorized persons. To lock the unit, select “Locked” by turning the rotary encoder, and push it to confirm. The system will ask you to enter a password. Select a character in the cursor position by turning the rotary encoder;...
  • Page 16 I MÁS D ELECTROACÚSTICA SL Pol. A Trabe 19-20, 15350 – Cedeira, A Coruña (España - Spain) Tel. +34 881 545 135 www.ideaproaudio.com info@ideaproaudio.com Specifications and product appearance may be subject to change without notice. UM_TEOd9_EN_v1.0 | 06 - 2022...
