Idea EXO15-A Quick Start Manual

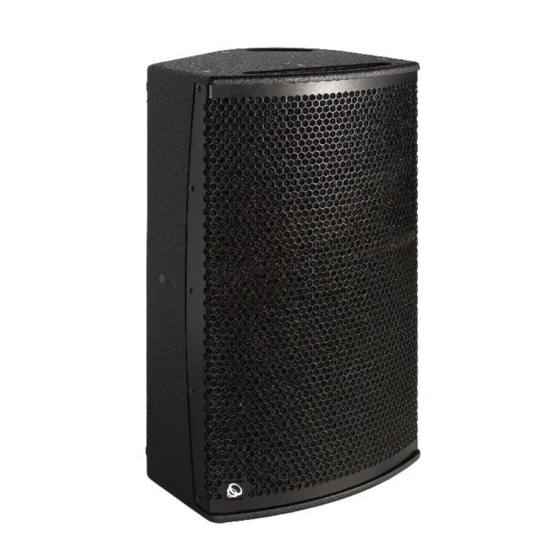

EXO15-A
2-Way Active Multipurpose Monitor
EXO15-A is a versatile, high-performance full range 2-way active wedged monitor conceived
for professional environments where portable sound reinforcement is required, delivering a
superior audio reproduction in a very compact, multipurpose format.
EXO15-A HF assembly couples a 3˝compression driver into common EXO Series birch plywood
axisymmetric horn with IDEA's proprietary design and a premium European, dedicated-design
passive crossover filter provides a smooth, natural transition intro the MLF 15˝ woofer and
summing up into a superior audio playback along the whole usable frequency range.
Like all IDEA models, EXO15-A is built with 15 and 18 mm birch plywood, IDEA's Aquaforce
waterproof paint coating and a high-quality steel grille, creating a rugged, durable and stylish
loudspeaker.
The 60° wedged cabinet allows not only to be used as FOH main system in small venues, bars
and AV applications and as a stage monitor but to seamlessly fit into any wall mount fixed installation.
EXO15-A integrates a bottom Pole Mount 35 mm socket to be configured on BASSO Series subwoofers for portable sound
reinforcement and medium performance venues and clubs.
DSP/AMP POWER MODULE
EXO15-A integrates a Class-D 1,2 kW (@ 4Ω) power module and 24-bit DSP with 4
selectable presets. This high efficiency, low consumption power module features
PFC (Power Factor Correction) for worldwide operation and error proof connection
to mains voltage. The rear panel features a rotary gain control, balanced audio
input and output XLR and PowerCON connections, led activity indicators and a select
pushbutton to toggle between the 4 preloaded presets.
INSTALLATION ACCESSORIES
EXO15 is fitted with 10 threaded M8 inserts for hung permanent
installations as well as bottom 36 mm pole-mount socket that serves
for both pole mount configurations onto a BASSO Series subwoofer.
Examples showing
EXO15 in different setups
and configurations
Quick Start Guide
Gain level knob Preset Select toggle
Activity leds Active Preset
Signal OUT Signal IN
USB Port
Balanced audio XLR Balanced audio XLR
Mains OUT Mains IN
1
