- Page 1 RANGEHOOD & INSTALLATION GUIDE SCC1200-S www.schweigen.com.au Revision V3 01/31/20...
-
Page 2: Table Of Contents
Index 1. Welcome Your State Regulatory Authority 2. Important Safety Information Before Installation Product Use Ducted or Recirculating? Maintenance and Service Electrical Cord 3. Description Rangehood 4. 4. Cleaning & Maintenance Filters Cleaning the Interior Cleaning the Exterior Replacing the LED Strip Light 5. -
Page 3: Welcome
The guide contains important information on the use and maintenance of the unit, as well as important safety notes. This will ensure your personal safety and the lasting value of your rangehood. We trust that you will enjoy your new Schweigen rangehood. Please always retain your proof of purchase to aid in any warranty queries. -
Page 4: Important Safety Information
2. Important Safety Information WARNING Please read this section thoroughly before attempting to operate the appliance. Inspect your product upon receipt. Any damage or defects MUST be reported within 48 hours, or no claim will be recognised. DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED. If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs associated with the repair, replacement, removal or re-installation of the appliances. -
Page 5: Before Installation
2. Important Safety Information Before Installation 1. We recommend this appliance be installed or repaired by a qualified Schweigen Home Appliances technician. 2. Please see our website www.schweigen.com.au for recommended installers. 3. It is dangerous to modify any part of this appliance. Modification of any kind, will immediately void the warranty. -
Page 6: Product Use
2. Important Safety Information Product Use This product is designed for household use and should not be used for commercial applications. After use, always ensure that all controls are in the “OFF” position. When frying with a gas flame, take particular care not to allow the oil or grease in the pan to catch fire. -
Page 7: Description

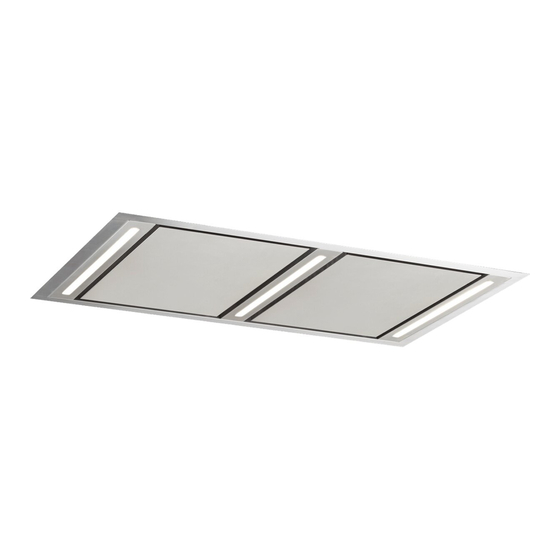

3. Description Rangehood 1. 200mm outlet 2. P.A. Filter Cover Panel 3. Filters 4. 2x Side adaptors 5. 2x Rectangle to round adators NOTE: Filter and light quantity may vary from model to model. Page 7... -
Page 8: Cleaning & Maintenance
4. Cleaning & Maintenance _n_. _LH Section_ Warning Always switch off and disconnect power before cleaning. Cleaning the Interior Clean the interior of the rangehood with a damp cloth and a neutral detergent or denatured alcohol. NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or the motor with liquids or solvents Cleaning the Exterior We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly. - Page 9 4. Cleaning & Maintenance _n_. _RH Section_ Filters For this appliance to function effectively, regular maintenance is a must. • The function of the filter is to absorb the grease particles given off during cooking. • Clogged filters and heavy oil deposits restrict airflow and may cause the motor to overheat and become a fire hazard.
-
Page 10: Replacing The Led Strip Light
4. Cleaning & Maintenance Replacing the LED Strip Light Danger Always switch off and disconnect the power cord before replacing any light bulbs. Failure to do so may cause serious injury. Please be aware that the light bulb will retain heat for a short period of time after being switched off. -
Page 11: Installation
Mounting Instructions The height and position of the rangehood in relation to the cooktop can greatly affect efficiency and extraction. After extensive testing, Schweigen recommends the following: Type of Cooktop Minimum Height Optimal Height Maximum Height... -
Page 12: Recommended Installation Height For Induction Cooktop
* Important: In addition to the information in this manual, please check all relevant state requirements for minimum– maximum heights, as well as regulations regarding the expelling of air. Schweigen is not liable if your rangehood is not installed in accordance with these legal requirements. Page 12... -
Page 13: Ceiling Cassette Installation Guide
_n_. _RH Section_ 5. Installation Ceiling Cassette Installation Guide DANGER Always switch off and disconnect the power supply before installing the rangehood. Failure to do so may cause serious injury. WARNING Please remove filters before installation. Failure to do so may damage the clips. •... -
Page 14: Optional Bulkhead Installation Guide
5. Installation _n_. _LH Section_ Optional Bulkhead Installation Guide DANGER Always switch off and disconnect the power supply before installing the rangehood. Failure to do so may cause serious injury. WARNING Please remove filters before installation. Failure to do so may damage the clips. •... -
Page 15: Optional Side Port Installation
5. Installation Optional Side port installation DANGER Always switch off and disconnect the power supply before installing the rangehood. Failure to do so may cause serious injury. WARNING Please remove filters before installation. Failure to do so may damage the clips. This rangehood has an optional side port installation. -
Page 16: Single Isodrive Motor Installation
5. Installation Single Isodrive Motor Installation ® 1. Isodrive Motor ® 2. Roof Seal Kit (Dektite) (Not supplied)* 3. Support Straps (Not supplied)* 4. Attach Flexi Duct to Bell-Mouth Adaptor using ring clamp. Please DO NOT rip the ducting. 200mm 5. -
Page 17: Twin Isodrive Motor Installation
_n_. _RH Section_ 5. Installation Twin Isodrive Motor Installation ® 1. Isodrive Motors ® 2. Roof Seal Kit (Dektite) (Not supplied)* 3. Support Straps (Not supplied)* 4. Attach Flexi Duct to Bell-Mouth Adaptor using ring clamp. Please DO NOT rip the ducting. -
Page 18: Ducting
5. Installation Ducting Please DO NOT crush or kink the ducting. 1. Crushed or kinked ducting creates sharp corners that creates turbulence. This reduces the size and efficiency of the ducting, lowers extraction and may cause excessive noise. 2. Sweeping curves and taut ducting reduces resistance and turbulence. -
Page 19: Condensation Information
6. Condensation Information _n_. _RH Section_ Cooking with Induction Cooktops Cooking with an induction or similar cooktop, may produce condensation on the rangehood. Unlike basic electric or gas cooking, induction cooktops heat food and liquid instantly, which in turn, produces vapours rapidly. Because of this rapid process, the rangehood filters do not have enough time to warm, which increases the chance of condensation forming. -
Page 20: Troubleshooting
7. Troubleshooting _n_. _LH Section_ Before you contact the technical service department, make sure that the product is plugged in and power is supplied. • Do not take any action that will damage the product. IMPORTANT Never attempt to repair this appliance by yourself. Always refer to a qualified Service Technician. -
Page 21: Service
0800 200 510 Faulty Installation It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee will be charged for any Schweigen technician that attends a call, whereby it is established that the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way that the service agent is unable to gain access to the appliance, the person/s who own the premises or the property where the appliance resides —... -
Page 22: Specifications
8. Specifications _n_. _LH Section_ Dimensions Page 22... -
Page 23: Disclaimer
All information supplied is to be used for general reference purposes only and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage of whatever kind arising as a result of any reliance upon such information. - Page 24 Australia 8/3-4 Anzed Court, Mulgrave 3170 Victoria. Phone 1300 881 693 Email sales@schweigen.com.au Web www.schweigen.com.au New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510 Email info.parex@emerson.com Web www.parex.co.nz...
