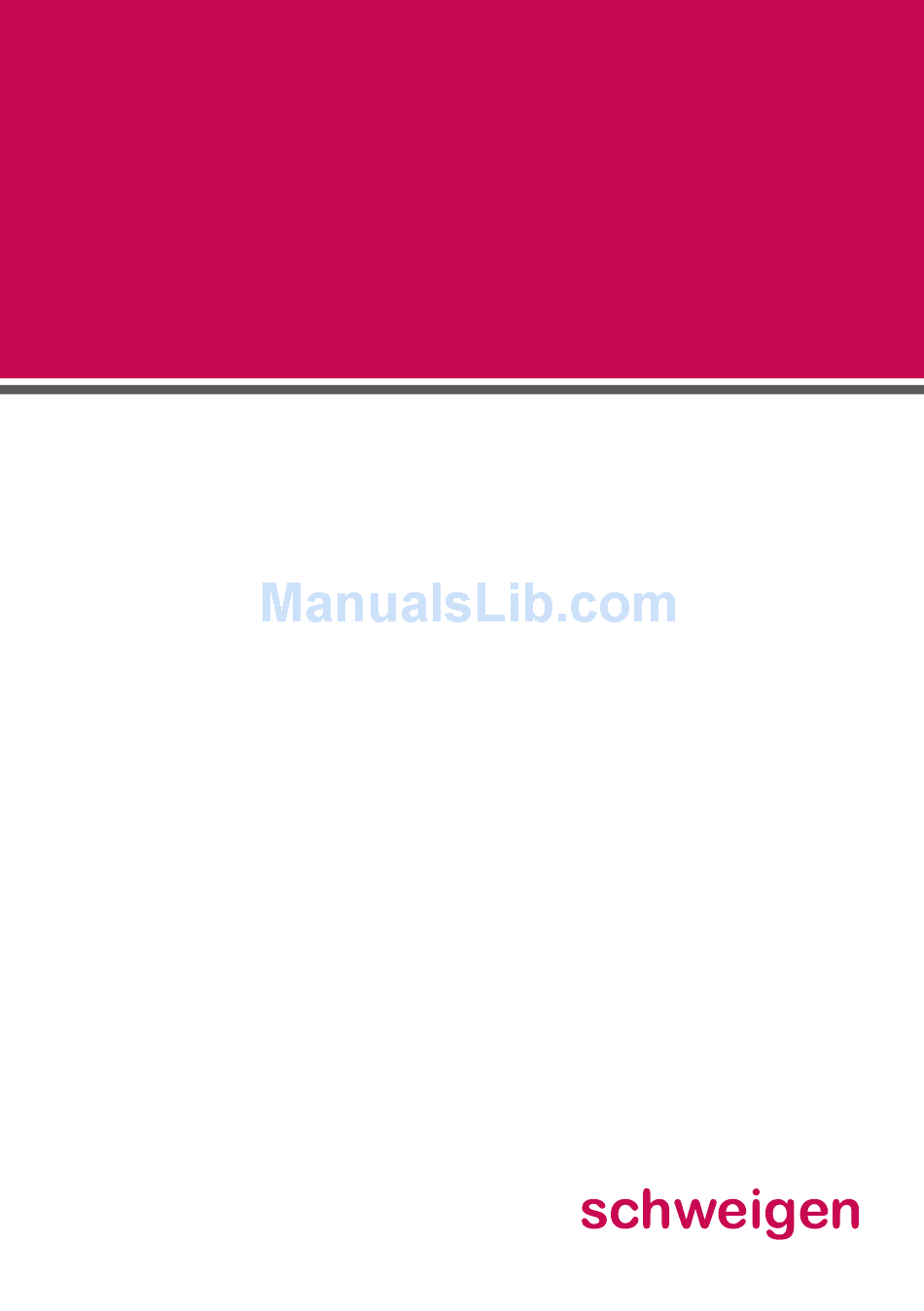

- Page 1 Rangehood instRuctions guide UM1170-6S, UM1170-9S, DS3131S, DS3170-12S, DS3170S, WM3150S, WM3150-6S, WM2190S, WM2190-6S HOME APPLIANCES...
- Page 2 500 / 750 530 / 790 uM1170-6s, uM1170-9s ds3131s WM2190s, WM2190-6s Page 2...
- Page 3 ds3170-12s, ds3170s WM3150s, WM3150-6s Page 3...
-
Page 4: Safety Precautions Information
safety pRecautions infoRMation • This product is designed for home usage. • if you notice any damage please report to the seller before installation. • Your products usage voltage is 220-240 Volts ~ 50Hz. • plug into the socket and test before installation of the product male plug is mains power female is to go to iso drive Motor • Best to turn on the rangehood before commencing cooking. - Page 5 Mounting holes for model UM1170-6S Mounting holes for Model UM1170-9S Place the hood into the cabinet (Picture 3), align holes in the undermount to the pre-marked or drilled holes in the cabinet to the holes on the undermount and fix into position. (Picture 4) Picture 3 Fix the undermount to the cabinet...
- Page 6 assembling tempered glass (This process is only applied for models WM3150S and WM3150-6S) Assemble the tempered glass supplied with the hood ensuring that it is placed on the hood body. Fix glass to the body by screwing the screws in holes placed on the hood and the glass. WaLL unit L formed hanging plates Connect L formed hanging plates to the canopy...
- Page 7 MOUNTING TEMPLATE SCALE 1:1 170mm A,B,C,D = Ø8 ELECTRO min.750-max.800mm min.650-max.750mm H670.3120.02 WORKTOP Figure 1 Part B: DS3170S optional plug insertion For suspension screw, insert Ø 8mm plugs into drilled holes (A, B, C). For chimney mounting sheet, insert 2 dowels of Ø 6mm into holes drilled by using Ø...
- Page 8 tighten the screws After completing the hanging, tighten the screws by using a screwdriver, to prevent the remove of the product. (Picture 9) Picture 9 inclination If there is inclination, soften screws on top and correct parallelism. (Picture 10) Picture 10 screw rangehood onto wall When fixing is completed screw the rangehood onto wall from C point which is inside of the body.
-
Page 9: Maintenance
installation of aluminium duct Connect aluminium flexible duct on plastic outlet and feed through hole in ceiling. (Picture 13) Picture 13 install chimney Install chimney around the body. (Picture 14) Picture 14 fix the chimney internal cover to the wall Screw the inner hood in to the chimney mounting bracket which is fixed to wall from its upper outer sides. (Picture 15) Picture 15 Maintenance... -
Page 10: Speed Selection
• Disconnect electricity connection before maintenance and cleaning process. • Metal cassette filter holds the dust and the oil in the air. • Metal filter should be washed regularly (please see “Cleaning periods of metal filters”) and soaped water or, if Picture 16 possible, with a dishwasher (60°C). • Take off metal cassette filter pressing on springy latches on end point. After cleaning, do not replace before it dries. • Outer surface of the rangehood should be wiped down with a wet cloth, water or alcohol can be used. -
Page 11: Technical Specifications
Installation should be done by a qualified technician. A preferred installer list can be obtained from Schweigen website www.schweigen.com.au. if the product does not work: Before you contact the technical service, make sure that the product is plugged in and the electric fuse is in and electric wiring is connected. (Fuses can be purchased from your local electrical dealer or hardware store) Do not take any action that will damage the product. - Page 12 Under warranty if damage should occur by misuse or negligence to: Gloss removable, plastic parts, varnished & enamelled parts, exchange will not be free of charge. Provided warranty labour will be carried out during normal hours and by Schweigen Home Appliances or its approved designated service agent, the labour provided, will be free of charge.
