RANGEHOOD & INSTALLATION GUIDE
SW-220C
SW-220CB
www.schweigen.com.au
Revision V1 12/12/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-220C and is the answer not in the manual?

Questions and answers

Summary of Contents for Schweigen SW-220C

  • Page 1 RANGEHOOD & INSTALLATION GUIDE SW-220C SW-220CB www.schweigen.com.au Revision V1 12/12/23...
  • Page 2 Index Welcome Your State Regulatory Authority Your Safety Before Installation Product Use Electrical Cord Description Main Rangehood Cutout Size 4. Operation Push Button Control Panel Speed Control Cleaning & Maintenance Cleaning the Interior Cleaning the Exterior Replacing the Light Baffles Installation Rangehood Size vs Cooktop Size Overhead cabinet Rangehood Installation position...
  • Page 3 Please help us to continue this effort to protect the environment by using the appliance efficiently and dispose of the packaging in a responsible manner. We trust that you will enjoy your new Schweigen rangehood. Your State Regulatory Authority Different Australian states have varying legislative requirements for the installation of rangehood ducting.
  • Page 4 2. Your Safety WARNING Please read this section thoroughly before attempting to operate the appliance. Inspect your product upon receipt. Any damage or defects MUST be reported within 48 hours, or no claim will be recognised. DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED. If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs associated with the repair, replacement, removal or re-installation of the appliances.
  • Page 5: Before Installation

    1. We recommend this appliance be installed or repaired by an experienced Home Appliances technician. 2. Please see our website www.schweigen.com.au for experienced installers. 3. It is dangerous to modify any part of this appliance. Modification of any kind, will immediately void the warranty.
  • Page 6: Product Use

    2. Your Safety Product Use This product is designed for household use and should not be used for commercial applications. After use, always ensure that all controls are in the “OFF” position. When frying with a gas flame, take particular care not to allow the oil or grease in the pan to catch fire.
  • Page 7: Main Rangehood

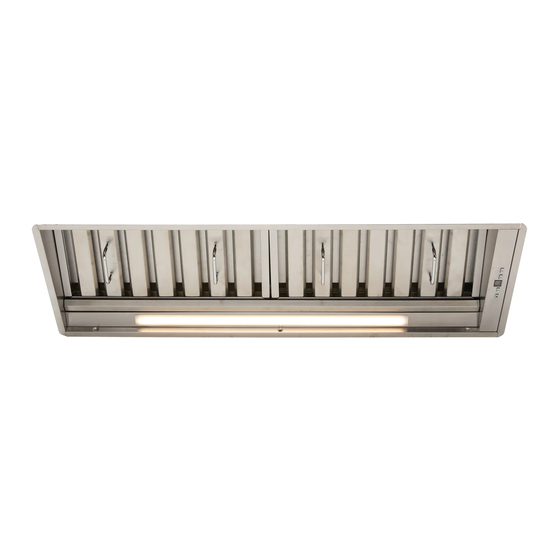

    _n_. _RH Section_ 3. Description Main Rangehood 1. Rangehood 2. Main Power Cord (220-240V 50Hz) 3. Twin Outlet ø200mm 4. Baffles 5. LED Strip Light Note: Baffle and light quantity may vary from model to model. Cutout Size Use this as a guide only when designing your cabinet. We advise you to take the rangehood to your cabinet maker so they can tailor the cabinet to fit correctly.
  • Page 8 4. Operation _n_. _LH Section_ T O U C H S E N S I T I V E C O N T R O L P A N E L Remote control sensor Fan speed setting (for applicable models only) Turn rangehood on/off Turn light on/off U S I N G T H E T O U C H S E N S I T I V E C O N T R O L S...
  • Page 9: Cleaning The Interior

    5. Cleaning & Maintenance Warning Always switch off and disconnect power before cleaning. Cleaning the Interior Clean the interior of the rangehood with a damp cloth and a neutral detergent or denatured alcohol. NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or the motor with liquids or solvents Cleaning the Exterior We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly.
  • Page 10 5. Cleaning & Maintenance Baffles For this appliance to function effectively, regular maintenance is a must. • The function of the baffle is to collect the grease particles given off during cooking. • Clogged heavy oil deposits restrict airflow and may cause the motor to overheat and become a fire hazard.
  • Page 11 6. Installation Rangehood Size vs Cooktop Size In addition to the size, the height of the rangehood above the cooktop is important to obtain the best performance. INADEQUATE ADEQUATE OPTIMAL Rangehood smaller than Rangehood same size as Rangehood larger than cooking zone cooking zone cooking zone...
  • Page 12: Mounting Instructions

    Note: If the instructions for the gas cooktop specify a greater distance, this must be taken into account. Recommended Installation Height for Induction Cooktop To help avoid condensation, particular to cooking with an induction cooktop, Schweigen recommends a height between 700-750mm. Refer to page 18 for further information.
  • Page 13 6. Installation Mounting Points for Body The diagram below is a guide for all mounting points. *Please refer to Specifications for mounting points measurements. WARNING Please remove filters before installation. Failure to do so may damage the clips. DANGER Always switch off and disconnect the power supply before installing the rangehood. Failure to do so may cause serious injury.
  • Page 14: Installation Example

    6. Installation _n_. _LH Section_ Installation Example Before installing the undermount, make sure that none of the parts are damaged in anyway. In case of damaged parts, contact your retailer and do not proceed with installation. Step 1 Spring loaded clip is to help support the rangehood during installation, adjust clip to the right level before inserting rangehood.
  • Page 15 _n_. _RH Section_ 6. Installation Ducting The overall length of the ducting should not be greater than 4 metres. Please DO NOT crush or kink the ducting. 1. Crushed or kinked ducting creates sharp corners that creates turbulence. This reduces the size and efficiency of the ducting, lowers extraction and may cause excessive noise.
  • Page 16 6. Installation _n_. _LH Section_ Ducting Advice Straight ducting is the most effective installation Keep the curves or bends to a minimum. If they do exist, try to keep the angles as open as possible. Never reduce flue diameter right next Never fit reductions next to curves or bends in to the rangehood outlet fitting.
  • Page 17: Roof Cowls / Roof Seal Kit

    _n_. _RH Section_ 6. Installation Roof Cowls / Roof Seal Kit WARNING All electrical wiring should be kept inside the roof space. 1. Roof Cowls (Not supplied)* 2. Ducting must be pulled taut. DO NOT crush or kink the ducting. 3.
  • Page 18: Cooking With Induction Cooktops

    7. Condensation Information _n_. _LH Section_ Cooking with Induction Cooktops Cooking with an induction or similar cooktop, may produce condensation on the rangehood. Unlike basic electric or gas cooking, induction cooktops heat food and liquid instantly, which in turn, produces vapours rapidly. Because of this rapid process, the rangehood filters do not have enough time to warm, which increases the chance of condensation forming.
  • Page 19: Troubleshooting

    8. Troubleshooting Troubleshooting If the product does not work: Before you contact the technical service department, make sure that the product is plugged in, and electric wiring is connected. Weak air suction may be caused by back draft fins remaining closed. Do not take any action that will damage the product.
  • Page 20: Faulty Installation

    0800 200 510 Faulty Installation It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee will be charged for any Schweigen technician that attends a call, whereby it is established that the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way that the service agent is unable to gain access to the appliance, the person/s who own the premises or the property where the appliance resides —...
  • Page 21: Technical Specifications

    _n_. _RH Section_ 9. Specifications Dimensions 216x216 ø199 Technical Specifications Model SW-220C / SW-220CB Feeding Voltage 220–240V 50Hz Lamp Power — LED Strip (W) 10.5W Weight 20kg Page 21...
  • Page 22 All information supplied is to be used for general reference purposes only and is on the understanding that Schweigen will not be liable for any loss, liability or damage of whatever kind arising as a result of any reliance upon such information. All pictures used in the guide are for illustrative purposes only.
  • Page 23 Notes Page 23...
  • Page 24 Australia Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172. Phone 1300 881 693 Email sales@schweigen.com.au Web www.schweigen.com.au New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510 Email info.parex@emerson.com Web www.parex.co.nz...
