- Page 1 RANGEHOOD & INSTALLATION GUIDE UM422G-12S www.schweigen.co.nz...
-
Page 2: Table Of Contents
Index 1. Welcome ____________________________________________________________________________________________________ 3 2. Your Safety Warning ______________________________________________________________________________________________________ 4 Before Installation __________________________________________________________________________________________ 5 Product Use ______________________________________________________________________________ 6 Maintenance and Service ________________________________________________________________________________ 6 Electrical Cord ______________________________________________________________________________________________ 6 3. Tips and Suggestions For Users _________________________________________________________________________________ 7 For Installers and Users ____________________________________________________________________ 7 4. -
Page 3: Welcome
The guide contains important information on the use and maintenance of the unit, as well as important safety notes. This will ensure your personal safety and the lasting value of your rangehood. We trust that you will enjoy your new Schweigen rangehood. Please always retain your proof of purchase to aid in any warranty queries. -
Page 4: Your Safety
2. Your Safety WARNING Please read this section thoroughly before attempting to operate the appliance. Inspect your product upon receipt. Any damage or defects MUST be reported within 48 hours, or no claim will be recognised. DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED. If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs associated with the repair, replacement, removal or re-installation of the appliances. -
Page 5: Before Installation
2. Your Safety Before Installation We recommend this appliance be installed or repaired by a qualified Schweigen Home Appliances technician. Please see our website www.schweigen.co.nz for recommended installers. It is dangerous to modify any part of this appliance. Modification of any kind, will immediately void the warranty. -
Page 6: Product Use
2. Your Safety Product Use This product is designed for household use and should not be used for commercial applications. After use, always ensure that all controls are in the “OFF” position. When frying with a gas flame, take particular care not to allow the oil or grease in the pan to catch fire. -
Page 7: Tips And Suggestions
3. Tips & Suggestions The Rangehood has one mode of operation: Air extraction: The air is drawn in and cleaned by the grease filters and directed outside. Please check the cleaning and maintenance section for the filters’ cleaning periods. For Users 1. -
Page 8: Description

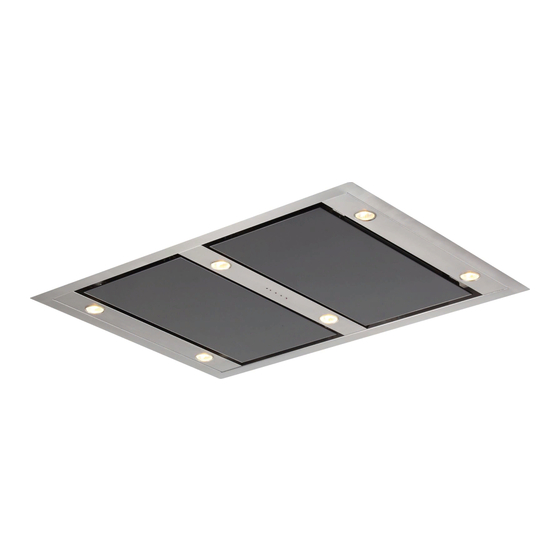

4. Description Main Rangehood For use with Isodrive motor system Male Plug (Main Power 240V) 2 X Main 200mm Outlet POWER 3 x 150mm Outlets (optional only)* Remote Reducer (For Isodrive 650 only) Lamp (For GU10 fittings, please twist to remove) Filter LED Indicator Panel Extraction Sheets... -
Page 9: Operation
5. Operation Schweigen silent rangehoods are recognised for their silent operation. Although this holds true for all of our rangehoods with external motors, one must note that the rangehoods are silent when they are used for regular cooking on the lower fan setting. Therefore, you will only hear the movement of air. -
Page 10: Cleaning And Maintenance
6. Cleaning & Maintenance WARNING Always switch off and disconnect power before cleaning. Surfaces Wash with warm soapy water and a soft sponge. Never use abrasive detergent, scouring pads, steel wool or solvents on any part of this appliance, Always make sure to dry the appliance after cleaning and never leave wet, as this will cause irreparable damage. -
Page 11: Cleaning The Interior
6. Cleaning & Maintenance WARNING • If the grease filters are very dirty, the motor will extract only a small quantity of air, which reduces its efficiency; • The grease deposits that build up on the filter are highly flammable and COULD EASILY CATCH FIRE. -
Page 12: Replacing The Light Bulb
6. Cleaning & Maintenance Replacing the GU10 Light Bulb DANGER Always switch off and disconnect power before replacing the lights. Failure to do so may cause serious injury. Please be aware that the light bulb will retain heat for a short period of time after being switched off. -
Page 13: Installation
7. Installation DANGER Always switch off and disconnect power before installing the rangehood. Failure to do so may cause serious injury. Mounting Laws and Regulations The minimum distance between the bench top and the lowest part of the rangehood should not be less than: For indoor kitchen area: 1200mm (All cooktop types) -
Page 14: Ceiling Cassette Installation Guide
7. Installation Ceiling Cassette Installation Guide • To install the rangehood to the ceiling, there needs to be a section on the ceiling that corresponds to the sizes given in the technical drawing with support for the rangehood frame. • Open the split-extraction sheet of the device and remove the filter before installing •... -
Page 15: Optional Bulk Head Installation Guide
7. Installation Optional Bulk Head Installation Guide • To install the rangehood into a bulk head, there needs to be a bulk head made that corresponds to the sizes given in the technical drawing with support for the rangehood. • Open the split-extraction sheet of the device and remove the filter before installing. •... -
Page 16: Single Isodrive Motor Installation
7. Installation Single IsoDrive Motor Installation Isodrive Motor Roof Seal Kit (Dektite)* Support Straps* Attach Flexi Duct to Bell-Mouth Adaptor using aluminium foil tape or cable tie etc. Please DO NOT rip the ducting. 200mm Flexi Duct Motor Power Lead (Male Plug) Rangehood to Motor Lead (Female Plug) 200mm... -
Page 17: Overview
(1). A: Connect them with a high quality double adaptor or hard wired them together by an electrician. This picture is for illustrative purposes only, not to scale. www.schweigen.com.au Service: 1300 829 066 HOME APPLIANCES... -
Page 18: Maintenance
8. Maintenance Condensation Information The induction cooktop is designed to provide rapid heating, improved thermal efficiency and greater heat consistency. For some customers with an induction cooktop, condensation can form on their rangehood filters while using their cooktop. The induction cooktops’ heat source is contained in the conductive base of the pot. When compared with a gas, electric or wok burner, the heat is not isolated or contained to one area and therefore gradually rises up on all sides of the pot or frypan. - Page 19 8. Maintenance User advice to avoid condensation in the rangehood: • The rangehood should be switched on approx. 10 minutes prior to cooking and the delay shut down timer set after cooking has stopped in order to clear the fumes held in the flue. These steps will help clear the flue out fully.
-
Page 20: Troubleshooting
8. Maintenance Troubleshooting If the product does not work: Before you contact the technical service department, make sure that the product is plugged in, the electric fuse (on selected models) is in correctly and electric wiring is connected. (Fuses can be purchased from your local electrical dealer or hardware store). -
Page 21: Faulty Installation
It is not the responsibility of Schweigen Home Appliances to rectify any incorrect installations. A service call out fee will be charged for any Schweigen technician that attends a call, whereby it’s established that the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way that the service agent is unable to gain access to the appliance, the person/s who own the premises or the appliance where the appliance resides —... -
Page 22: Specification
9. Specification 1200 1156 Page 22... -
Page 23: Disclaimer
In no event will Schweigen Home Appliances be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information from their website or the products to which the information refers. - Page 24 Australia 8/3-4 Anzed Court, Mulgrave 3170 Victoria. Phone 1300 881 693 Email sales@schweigen.com.au Web www.schweigen.com.au New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510 Email info.parex@emerson.com Web www.parex.co.nz Distributed by Axis Group International Pty Ltd. ACN 124 141 322...
