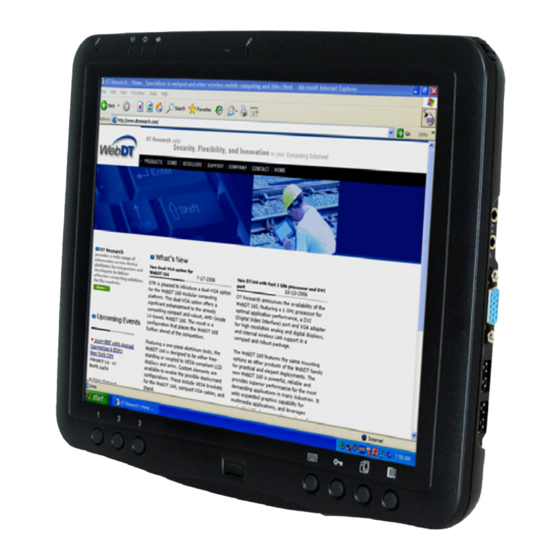

THE WebDT 310
SPECIFICATIONS
10.4" Hi-Brite TFT LCD with resistive touch and
Display
outdoor-viewable option
Display Resolution
1024 x 768 (XGA)
Processor
AMD Geode™ LX 800
Memory (flash)
64MB – 16GB
Memory (RAM)
256MB; 512MB; 1GB
Software
Windows
Operating Systems
Windows
Storage
Internal flash module; 60GB HDD
Stylus
Non-electronic tip
Two rubber bumpers with optional adjustable hand
Protective Grips
strap, adds drop protection
Wireless Interface
Integrated 802.11; Bluetooth
Input and Control
Seven (7) front buttons; One Power (left edge);
Buttons
Internal battery control switch
12V DC-in Jack; Microphone-In; Headset jack;
Input/Output Ports
(2) USB 2.0 Ports;
Optional: VGA port
Enclosure
Magnesium-Aluminum alloy
AC/DC adapter
Input: 100-240VAC, 1.2A; Output: 12VDC, 3.5A
Power Cords
North America, EU, UK
Internal (14W, 2000 mAh);
Battery Packs
optional external (28W 3900 mAh, 0.5 lb) and
(Lithium-Ion)
optional tethered pouch (72W, 1 lb)
Desktop Charging
Optional: Pass-through for power; Ethernet, USB 2.0
Cradle
ports
Charging Cradle
Optional: Aluminum parking stand
Dimensions (H x W x D)
8.3 x 10.3 x 0.8 (in); 210 x 261 x 18 (mm)
Base Weight
2.05 lbs (0.93 kg)
Regulatory
FCC Class B, CE, UL, RoHS compliant
Operating
0° – 40°C
Temperature
Humidity
0% – 90% non-condensing
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2010, DT Research, Inc. All Rights Reserved.
DT Research and WebDT are registered trademarks of DT Research, Inc.
8
ENGLISH
signage dtri com
CE; Windows
XP Embedded;
®
®
®
XP Tablet PC Edition
http://www.dtresearch.com
BOG050410DT310ENG
Mobile Tablet
WebDT 310
BASIC OPERATION GUIDE
ENGLISH
INTRODUCTION
Thank you for acquiring the latest addition to DT
Research's line of tablet devices—the WebDT 310.
Featuring a slim yet robust magnesium alloy enclosure,
the two-pound WebDT 310 with 10.4" TFT display is powered by
the AMD Geode™ LX 800 processor, offering optimal combinations of
performance and power savings. An external battery expansion option provides
approximately 3-4 hours of additional battery operation for up to six hours of
mobile usage.
The WebDT 310 is available in Windows
XP Tablet PC operating systems. Each software operating system features web
browser, client/server computing software, media player, accessories, and
applications support.
PACKAGE CONTENTS
WebDT 310 with Internal Battery Pack, Stylus, Grips, and Screen Cover
AC-DC Power Adapter with Power Cord
Basic Operation Guide
Major options, depending on configuration:
Desktop Charging Cradle with DC-in
Power Jack, Ethernet/USB Ports
External Battery Pack
* If your WebDT 310 contains MSR or scanner module, please refer to the POS
module operation guide for detailed operation.
CE, Windows
XP Embedded, or Windows
®
®
External Battery Charger Kit
Carrying case
®
