DT312
SPECIFICATIONS
System
Processor
Memory (RAM)
Storage
Operating Systems
Display
Display Resolution
Network Interface
Control Switch and Buttons
Indicator
Speaker
Input/Output Ports
Security
Power
AC/DC Adapter
Battery Pack
Mechanical
Enclosure
Stylus
Protective Bumpers
Dimensions
(H x W x D)
Weight
Environmental
Regulatory
Temperature
Humidity
* Specifications subject to change without notice.
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2012, DT Research, Inc. All Rights Reserved.
DT Research is registered trademark of DT Research, Inc.
8
ENGLISH
signage dtri com
Intel® Atom™ Z530, 1.6GHz
2GB DDR2 533MHZ
8GB to 256GB Flash
Microsoft® Windows® Embedded Standard 7,
Windows® 7 Professional, Windows® XP Embedded,
Windows® XP Pro for Embedded Systems, or Linux
10.4" LED-backlight screen with resistive touch;
sunlight-readable option
1024 x 768 (XGA)
Wi-Fi 802.11a/b/g/n, Bluetooth 2.1 with EDR
1 power button, 7 front buttons and 1 trigger button
1 power/ battery status LED and 1 WLAN active LED
Built-in speaker
1 DC-in Jack; 2 USB 2.0 port;
1 Headphone-out Jack; 1 Microphone-in Jack
WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-
Enterprise, AES-CCMP 128-bit, WEP 128-bit and 64-bit;
802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAPTLS,
EAP-TTLS
Input: 100 – 240V AC; Output: 12V DC, 3.5A
Internal 7.4V, 2200mAh or 7.4V, 3760mAh/
Optional: External 7.4V, 3760mAh or 7.2V, 3900mAh
ABS + PC plastics and magnesium-aluminum alloy
Non-electronic tip
Rubber side-grips with handstrap
8.3 x 10.3 x 0.8 in/ 210 x 261 x 18 mm
2.05 lbs/ 0.93 kg
FCC Class B, CE, C-Tick, RoHS compliant
Operation: 0°C - 40°C; Storage: -20°C - 60°C
0% - 90% non-condensing
http://www.dtresearch.com
DT312
BASIC OPERATION GUIDE
ENGLISH
INTRODUCTION

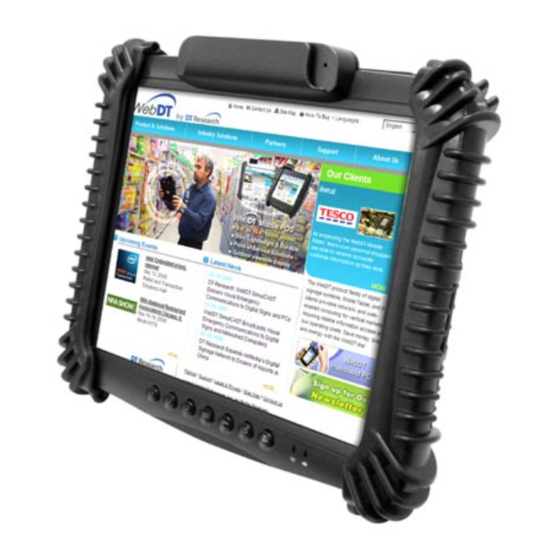

Thank you for acquiring the latest addition to DT Research's line of tablet devices— the
DT312. Featuring a slim yet robust enclosure, the two-pound DT312 with 10.4" TFT
display is powered by the Intel® Atom™ processor, offering optimal combinations
of performance and power savings. An external battery expansion option provides
approximately 3-4 hours of additional battery operation for up to six hours of mobile
usage.
The DT312 is available in Microsoft® Windows® Embedded Standard 7, Windows® 7
Professional, Windows® XP Embedded, Windows® XP Pro for Embedded Systems or
Linux operating systems. Each software operating system features web browser, client/
server computing software, media player, accessories, and applications support.
PACKAGE CONTENTS
One DT312 with Internal Battery Pack (2200mAh), Stylus, Grips and Screen Cover
AC-DC Power Adapter with Power Cord
Basic Operation Guide
Major options, depending on configuration:
Desktop Charging Cradle with DC-in Power Jack and
Ethernet, USB and optional VGA Ports
Internal High Capacity Battery (3760mAh)
* If your DT312 contains MSR, camera or scanner module, please refer to the POS module
operation guide for detailed operation.
BOG111312DT312ENG
Mobile POS Tablet
External Battery Pack
External Battery Charger Kit
