DT Research WebDT 360 Basic Operation Manual

THE WebDT 360

SPECIFICATIONS

8.4" Hi-Brite TFT LCD with resistive touch and
Display
outdoor-viewable option
Display Resolution 800 x 600 (SVGA)
Processor
AMD Geode
Memory (flash) 64MB – 16GB
Memory (RAM)
256MB; 512MB; 1GB
Windows
Software
Operating Systems
Windows
Storage Internal flash module; 60GB HDD
Stylus Non-electronic tip
Two rubber bumpers with optional adjustable hand
Protective Grips
strap, adds drop protection
Wireless Interface
Integrated 802.11; Bluetooth
Four (4) front buttons; One (1) oval 4-way; One
Input and Control Buttons
Power (left edge); One "Trigger" (right edge); Internal
battery control switch
12V DC-in Jack; Microphone-In; Headset jack; USB
Input/Output Ports
2.0 Port
Enclosure Magnesium-Aluminum alloy
AC/DC adapter
Input: 100-240VAC, 1.2A; Output: 12VDC, 3.5A
Power Cords North America, EU, UK
Internal (14W, 2000 mAh);
Battery Packs
Optional external (28W, 3900 mAh, 0.5lb);
(Lithium-Ion)
Optional tethered pouch (72W, 1lb)
Optional: Pass-through for power; Ethernet, USB 2.0
Desktop Charging Cradle
ports
Charging Cradle
Optional: Aluminum charging stand
Dimensions (H x W x D) 7.9 x 9.6 x 0.8 (in); 200 x 240 x 18 (mm)
Base Weight
1.9 lbs (0.86 kg)
Regulatory FCC Class B, CE, UL, RoHS compliant
Operating Temperature
0° – 40°C
Humidity 0% – 90% non-condensing
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2009, DT Research, Inc. All Rights Reserved.
DT Research and WebDT are registered trademarks of DT Research, Inc.
8
ENGLISH signage dtri com
LX 800
™
® ®
CE; Windows XP Embedded;
®
XP Tablet PC Edition
http://www.dtresearch.com
BOG050410DT360ENG

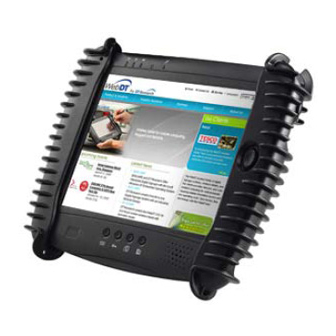

Mobile Tablet
WebDT 360
BASIC OPERATION GUIDE
ENGLISH

INTRODUCTION

Thank you for acquiring the latest addition to DT
Research's line of tablet devices—the WebDT 360.
Featuring a slim yet robust magnesium alloy enclosure, the sub-2lb
WebDT 360 with 8.4" TFT display is powered by the AMD Geode™ LX 800 processor,
offering optimal combinations of performance and power savings. An external
battery expansion option provides approximately 3–4 hours of additional battery
Operation for up to six hours of mobile usage.
The WebDT 360 is available in Windows
XP Tablet PC operating systems. Each software operating system features web
browser, client/server computing software, media player, accessories, and
applications support.

PACKAGE CONTENTS

•
WebDT 360 with Internal Battery Pack, Stylus and
• AC-DC Power Adapter with Power Cord
• asic Operation Guide B
Major options, depending on configuration:
• Desktop Charging Cradle with DC-in
Power Jack, Ethernet/USB Ports
• External Battery Pack
* If your WebDT 360 contains MSR or scanner module, please refer to the POS
module operation guide for detailed operation.
® CE, Windows ® XP Embedded, or Windows
Grips
• External Battery Charger Kit
• Carrying pouch
®
