DT311T
BASIC OPERATION GUIDE
ENGLISH
INTRODUCTION

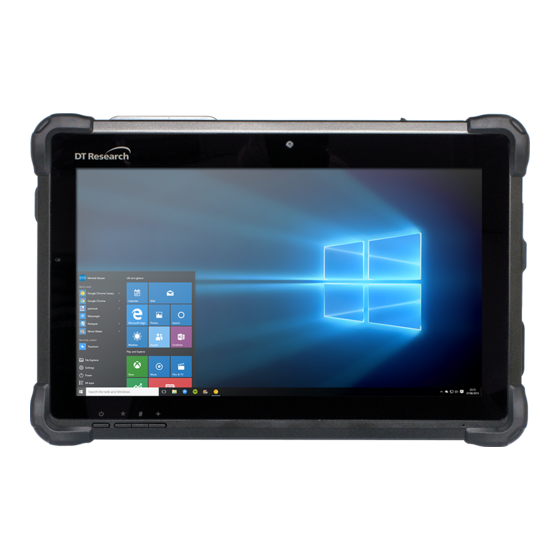

Thank you for acquiring the latest addition to DT Research's line of tablets — the DT311T.
Featuring a slim yet robust enclosure, the DT311T with 11.6" TFT display is powered by the Intel®
processor, offering optimal combinations of performance and power savings.
The DT311T is available with Microsoft® Windows® operating systems. Each software operating
system features web browser, client/ server computing software, media player, accessories, and
applications support.
PACKAGE CONTENTS
• One DT311T with Battery Pack and Handstrap
• AC‐DC Power Adapter with Power Cord
• Basic Operation Guide
DT311T
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DT Research DT311T
Summary of Contents for DT Research DT311T
- Page 1 BASIC OPERATION GUIDE ENGLISH INTRODUCTION Thank you for acquiring the latest addition to DT Research’s line of tablets — the DT311T. Featuring a slim yet robust enclosure, the DT311T with 11.6” TFT display is powered by the Intel® processor, offering optimal combinations of performance and power savings. The DT311T is available with Microsoft® Windows® operating systems. Each software operating system features web browser, client/ server computing software, media player, accessories, and applications support. PACKAGE CONTENTS • One DT311T with Battery Pack and Handstrap • AC‐DC Power Adapter with Power Cord • Basic Operation Guide DT311T ...
- Page 2 Input/ Output Ports Button Functions A Headphone Jack BUTTON ACTION ...
- Page 3 Power/Battery LED Status: • Blue indicates the battery is 25% to 100% charged • Blinking blue indicates the battery is charging • Orange indicates that the battery is between 11% to 25% • Blinking Orange indicates that the battery is below 10% Precautions • Always exercise care when operating and handling the DT311T. • Do NOT apply excessive pressure to the display screen. • Avoid prolonged exposure of the display panel to any strong heat source. Wherever possible, the DT311T should face away from direct light to reduce glare. • If the AC‐DC power adapter is used to recharge or power the tablet, do NOT use any AC‐DC adapter other than the one provided or acquired from the manufacturer or its partners. • In the unlikely event that smoke, abnormal noise, or strange odor is present, immediately power off the DT311T and disconnect all power sources. Report the problem to your device provider immediately. • Never attempt to disassemble the DT311T, as this will void the warranty. ...
- Page 4 OPERATION Powering ON and OFF To activate the DT311T, push and quickly release the Power Button. The display will come on in a few seconds. To put the DT311T in Standby mode, push and quickly release the Power Button. To turn the DT311T off for extended storage, power off safely using any software function that "shuts down computer" provided in the software operating system. NOTE: The battery packs shipped with your tablet may be low in power—please use the AC‐DC adapter with the DT311T when setting up for the first time to fully charge the internal battery pack. You may charge the external battery pack with it attached to the DT311T, or with the optional external battery charger kit. NOTE: When the battery pack(s) is (are) charging, the blue‐colored Battery LED should blink slowly. If plugging in the AC‐DC adapter does not trigger this blinking activity and the LED stays dark, ...
-
Page 5: Wireless Networking
Wireless Networking Wireless LAN The DT311T is often delivered with an embedded (user‐inaccessible) 802.11ac WLAN adapter equipped with a hidden custom antenna. • Through the support of typical WLAN adapters, the DT311T should be able to detect all 802.11 access points in the vicinity for you to select the access point of your choice for connection. • The SSID and WEP/WPA/WPA2 (if enabled) parameters on the DT311T and the access points have to match. The SSID is case‐sensitive and it is recommended that you enable WEP/WPA/WPA2 encryption (or advanced alternatives) for secure access. • When WEP/WPA/WPA2 is enabled, you may need to consult your network administrator or your networking equipment literature to properly configure associated settings such as Authentication mode, etc. • Refer to the access point operating manuals for setting up the 802.11 access points. Bluetooth The Bluetooth configuration application is enabled from the System Tray or from the Windows Mobility Center. Follow the instructions and options provided within the application to configure and invoke Bluetooth connectivity with the corresponding peripherals. ... - Page 6 For More Support Users can download the Tablet Modules Basic Operation Guides from the DT Research website. To Hold the Tablet Left hand: grip the left back side of the tablet with your left hand four index fingers, with thumb resting on the top of the back side of the tablet and palm securely against the back. Right hand: grip the right back side of the tablet with your right hand four index fingers, with thumb resting on the top of the back side of the tablet and palm securely against the back. ENERGY STAR® Partner As an ENERGY STAR® Partner, DT Research Inc. follows the EPA's product qualification and certification process to ensure the products marked with the ENERGY STAR® logo are ENERGY STAR® qualified for energy efficiency. The ENERGY STAR® program specifications for computers were to promote energy efficiency and reduce air pollution through more energy‐efficient equipment in homes, offices, and factories. One way products achieve this goal is by using the Microsoft Windows power management feature to reduce power consumption when the product is not in use. The power management feature enables the computer to initiate a low‐power or “sleep” mode after a period of user inactivity. To take advantage of these potential energy savings, users should use the default power management settings that are provided with ENERGY STAR qualified computers. The default power management settings on ENERGY STAR® qualified computers are preset to behave in the following ways : ● ...
-
Page 7: Specifications
Specifications: System CPU Intel® Core™ i7 ,1.8GHz RAM 8GB Storage 128GB flash Operating System Microsoft® Windows® 7 Professional or Windows® 10 IoT Enterprise Display 11.6” LED‐backlight screen with capacitive touch Display Resolution 1920 x 1080 Network Interface Wi‐Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.0 LE Control Switch and Buttons 1 power button, 3 programmable buttons and 1 RF switch Indicator 1 power/ battery status LED Microphone Built‐in microphone with DSP for video conference call Speaker Built‐in speaker Camera 5 megapixel back camera with auto focus, white balance, gain control, exposure control, and lens cover I/O Ports USB port 1 USB3.0 port Audio Jack 1 (3.5mm) DC‐in 1 Smart Card Reader (optional) Full‐slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card DC‐in 1 full size SD card slot ... -
Page 8: Fcc Warning
FCC Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ... -
Page 9: Radio Frequency (Rf) Exposure Information
Canada, ISEDC Notices This device complies with ISEDC’s licence‐exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Canada, avis d'ISEDC Le présent appareil est conforme aux CNR d'ISEDC applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Users should also be advised that high‐power radars are allocated as primary users (i.e. priority users) of the bands 5250‐5350 MHz and 5470‐5725 MHz and that these radars could cause interference and/or damage to LE‐LAN devices. 5GHz Wifi should indoor use only. Devraient également être informés les utilisateurs que les radars à haute puissance sont désignés comme utilisateurs principaux (c.‐à‐utilisateurs prioritaires) des bandes 5250‐5350 MHz et 5470‐5725 MHz et que ces radars pourraient provoquer des interférences et / ou endommager les appareils LE‐LAN. Le Wifi 5 GHz ne doit être utilisé qu'à l'intérieur. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the ISEDC radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has been evaluated for and shown compliant with the ISEDC Specific Absorption Rate (“SAR”) limits when operated in portable exposure conditions. ...
