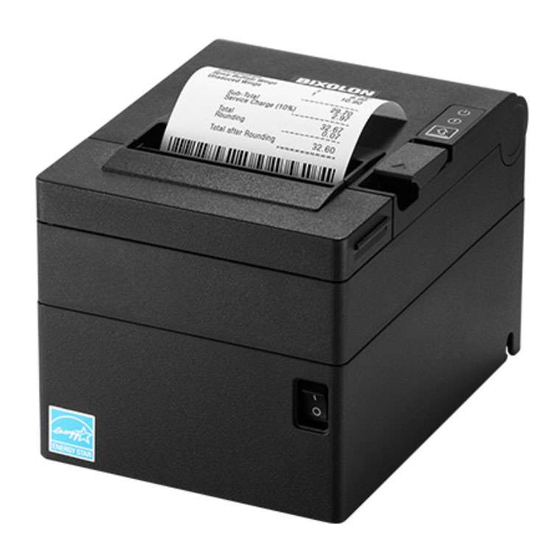

BIXOLON SRP-B300 Network Connection Manual

Thermal receipt printer
Hide thumbs Also See for SRP-B300:

Advertisement

Quick Links

Download this manual
Network Connection Manual
SRP-B300
THERMAL RECEIPT PRINTER
Ver. 1.00
http://www.bixolon.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRP-B300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON SRP-B300

Summary of Contents for BIXOLON SRP-B300

  • Page 1 Network Connection Manual SRP-B300 THERMAL RECEIPT PRINTER Ver. 1.00 http://www.bixolon.com...

  • Page 2: Table Of Contents

    SRP B300 ■ Table of Contents 1. Manual Information ......................3 2. Specifications ........................ 3 3. How to Connect......................4 4. Ethernet Test by using Windows Test Page ..............6 5. Factory Reset ....................... 13 6. Troubleshooting......................15 - 2 - Ver.

  • Page 3: Manual Information

    1. Manual Information This Network manual provides information on the connection of network with the printer. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.

  • Page 4: How To Connect

    SRP B300 3. How to Connect 1) Checking Network Setting Cover Open Lever Feed Button After the printer has finished booting, open the printer cover and press and hold the FEED button for 5 seconds. This will cause the interface setting confirmation mode. Then add the paper, close the cover, and check that the following message is printed.
  • Page 5 SRP B300 2) LAN Setting Values Classification Item Remarks Input Range Inactivity Time TCP connection hold time 0~3600 integer IP Assignment IP Assignment Method DHCP/Manual Method Network IP Address Printer IP IP Address Subnet Mask Subnet mask IP Address Gateway Default Gateway IP Address For changing network setting values using Net configuration tool, Refer to ‘Net...

  • Page 6: Ethernet Test By Using Windows Test Page

    Operating systems that allow you to use the Windows printer driver are Windows, XP, Server 2003, VISTA, 2008 Server, 7, 8, 10. [Note] - You can download the latest version of Windows driver from our home page. (www.bixolon.com) 1) Double-click the Windows Driver installation file. 2) Click Install - 6 -...
  • Page 7 SRP B300 3) Select Installation and click Next. 4) Select Model Name and click Next - 7 - Ver. 1.00...
  • Page 8 SRP B300 5) Select Ethernet and click Add TCP/IP Port 6) Enter the IP address and port number, and then click Next. - 8 - Ver. 1.00...
  • Page 9 SRP B300 7) Click Next 8) Click Next - 9 - Ver. 1.00...
  • Page 10 SRP B300 9) Click Next 10) Click Finish - 10 - Ver. 1.00...
  • Page 11 SRP B300 11) Open the printer properties window in the Windows OS. (1) Installing on Windows XP / Server 2003 ※ Control Panel – Printers and Faxes. (2) Installing on Windows VISTA / Server 2008 / 7 / 8 / Server 2012 / 10 ※...
  • Page 12 SRP B300 14) Click Print Test Page and check printing status. Proper installation of the driver is indicated if the test page is printed normally. - 12 - Ver. 1.00...

  • Page 13: Factory Reset

    SRP B300 5. Factory Reset This function changes the LAN settings of the printer to the initial factory settings. 1) Procedure Cover Open Lever Feed Button After the printer has finished booting, open the printer cover and press and hold the FEED button for 5 seconds.
  • Page 14 SRP B300 LAN Factory Reset OK! Reboot Printer. After the above message is printed, the printer will automatically reboot. 3) Factory Reset Values Inactivity time Network IP Assignment Method Automatic(DHCP) Local Port 9100 - 14 - Ver. 1.00...

  • Page 15: Troubleshooting

    SRP B300 6. Troubleshooting When printing doesn’t work Check network setting (Refer to Configuration for checking/changing the printer settings) IP Address Check the band of the IP Address. Check whether the bands of the printer and the AP(or wireless terminals) are the same. The first three digits of the four digit value of the IP address must be the same.
  • Page 16 SRP B300 When you see “Request timed out.” as shown below, it means that there is no collision. The corresponding IP can be used. On the other hand, if there is a reply as shown below, then the corresponding IP is used by another network terminal and it cannot be used for the printer IP.
