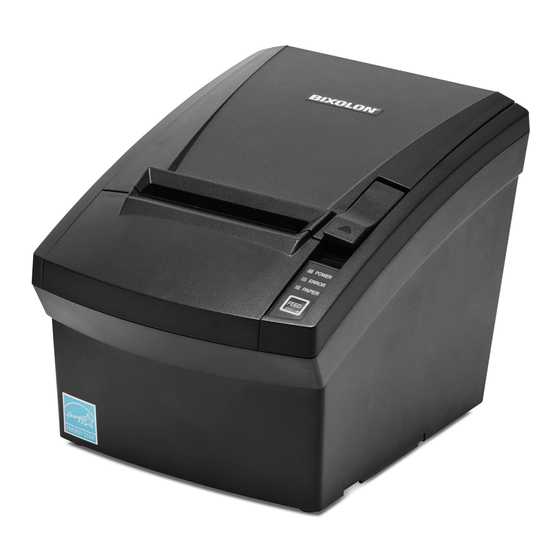

BIXOLON SRP-330II User Manual

Thermal receipt printer
Hide thumbs Also See for SRP-330II:
Table of Contents

Advertisement

Quick Links

User's Manual
SRP-330II/332II
THERMAL RECEIPT PRINTER
Ver. 2.00
www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP-330II and is the answer not in the manual?

Questions and answers

Related Manuals for BIXOLON SRP-330II

Summary of Contents for BIXOLON SRP-330II

  • Page 1 User’s Manual SRP-330II/332II THERMAL RECEIPT PRINTER Ver. 2.00 www.bixolon.com...

  • Page 2: Copyright

    It is strictly prohibited to copy, store, and transmit the whole or any part of the manual and any property of the product without the prior written approval of BIXOLON Co., Ltd. The information contained herein is designed only for use with this BIXOLON product.
  • Page 3 SRP-330II/332II Warning Hazardous moving parts Keep fingers and other body parts away Pull the print head lever can be stop all moving parts. IEC 60417-6057 (2011-05) for other moving parts. Mise en garde Les appareils électroniques, tels que les imprimantes, risquent d'être endommagés par l'électricité...
  • Page 4 SRP-330II/332II Compliance information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 SRP-330II/332II Waste Electrical and Electric Equipment (WEEE) This marking shown on the product or its literature, indicates that is should not be disposed with other household wastes at the end of its working life, to prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 6: Warning & Caution

    Do not connect multiple products to a Only use authentic products from BIXOLON. The company will not provide single or faulty power outlet. Use only grounded power outlets that meet the post-sale support for damaged or other industry standard.
  • Page 7 Do not place heavy product, please contact the original place of purchase or through objects, liquids, or metals on the product. This could cause damage to BIXOLON website’s product repair the product or a fire. page (www.bixolon.com). Ver. 2.00 - 7 -...

  • Page 8: Manual Introduction

    SRP-330II/332II Manual Introduction This manual provides basic information on printers and provides ways to install, use, and check them. In order to protect the safety of users and prevent property damage, be fully familiar with this manual before using the product. Please use it.

  • Page 9: Printer Introduction

    203 dpi at 220 mm/second and an optional paper guide to auto-switch between 2-inch and 3-inch width media. Paired with paper saving options, the SRP-330II can reduce the length of a receipt up to 25%. Supplied with BIXOLON’s All All-In-One Plus™ Interface, either a Triple Interface (USB + Ethernet + Serial) or Dual Interface (USB + Ethernet) connectivity.

  • Page 10: Table Of Contents

    SRP-330II/332II Table of Contents Copyright ........................... 2 WARNING & CAUTION ...................... 6 Manual Introduction ......................8 Printer Introduction ......................9 1. Preparation ......................... 11 2. Product Part Names ....................12 2-1 Printer Part Names ......................12 2-2 Interface Part Names ....................... 13 2-2-1 USB (Built-in) ........................

  • Page 11: Preparation

    SRP-330II/332II 1. Preparation • If there is any part missing, please contact the place of purchase. • The actual part may look different from the image. SRP-330II/332II Installation Guide Paper AC/DC Adapter Cover-Cabel Power Cord USB Cable(A-B) Partition Ver. 2.00...

  • Page 12: Product Part Names

    SRP-330II/332II 2. Product Part Names 2-1 Printer Part Names Printer Cover Cover Open Lever Feed Button Cutter Cover Manual Cutter Power Switch Ver. 2.00 - 12 -...

  • Page 13: Interface Part Names

    SRP-330II/332II 2-2 Interface Part Names • Connect the printer to the host computer using the right interface cable that complies with the specifications of the interface. 2-2-1 USB (Built-in) USB Port Pin No. Signal Name Designation (Color) Function Shell Shield...

  • Page 14: Ethernet Interface

    - If you push the function key, IP and MAC information can be obtained. - Refer to the utility and network connection manual for Interface connection information. The network connection manual is on the BIXOLON website (www.bixolon.com) We're offering it. Ver. 2.00 - 14 -...

  • Page 15: Serial Single Interface (Rs-232C)

    SRP-330II/332II 2-2-3 Serial Single Interface (RS-232C) Pin No. Signal Name Direction Function Frame Ground Output Transmit Data Input Receive Data Output Ready To Send Input Clear To Send Input Data Set Ready Signal Ground Output Data Terminal Ready Connect or disconnect the communication cable while the printer power is off.

  • Page 16: Parallel Interface (Ieee1284)

    SRP-330II/332II 2-2-4 Parallel Interface (IEEE1284) Pin No. Source Compatibility Mode Nibble Mode Byte Mode Host nStrobe HostClk HostClk Host / Printer Data 0(LSB) Data 0(LSB) Host / Printer Data 1 Data 1 Host / Printer Data 2 Data 2 Host / Printer...

  • Page 17: Drawer Kick-Out Port

    SRP-330II/332II 2-2-5 Drawer Kick-out Port Connect the cash drawer connection cable to the drawer kick-out port on the rear side of the printer. Pin No. Signal Name Direction Frame Ground Drawer Kick-out Drive Signal 1 Output Drawer Open/Close Signal Input...

  • Page 18: Installation & Usage

    SRP-330II/332II 3. Installation & Usage 3-1 Printer Installation Placings - Allow sufficient space around the printer for proper ventilation. - Do not place objects close to the back or bottom of the printer, which may hinder the air circulation. - Install the printer on a flat and level surface.

  • Page 19: Power Connection

    SRP-330II/332II 3-2 Power Connection 1) After turning the printer off, connect the AC/DC adapter jack to the printer’s power port. Power Port AC/DC Adapter Jack 2) When connecting the adapter jack, ensure that it is inserted in the correct direction.
  • Page 20 4) Press the “ON” switch to turn on the printer. - Be sure to turn off the printer and connect or disconnect the cable. - Only use a power supply provided by BIXOLON. BIXOLON shall bear no responsibility for damage caused by using a third-party power supply.

  • Page 21: Inserting And Changing The Paper Roll

    SRP-330II/332II 3-3 Inserting and changing the paper roll Use paper roll that complies with the specifications. If you use a paper roll including paper core attached to paper, the paper may not be properly recognized as paper Empty due to not proper releasing of paper.
  • Page 22 SRP-330II/332II 2) Replace with a new one as shown in the image. 3) Check the orientation of the roll paper when inserting it into the printer. Ver. 2.00 - 22 -...
  • Page 23 SRP-330II/332II 4) Pull out a small amount of paper as shown in the picture, and close the Pinter Cover. When closing the cover, hold down the center of printer cover firmly so that paper roll is loaded correctly. 5) Cut out the paper as indicated.

  • Page 24: Using Controller

    SRP-330II/332II 3-4 Using Controller Explanation POWER LED The Power LED light is on whenever the printer is on. Error LED is on when there is an error such as no paper roll, open ERROR LED cover, etc. Paper LED is on when the paper roll is almost used up or there is no PAPER LED paper roll inside.

  • Page 25: Mounting Partition

    SRP-330II/332II 3-5 Mounting Partition • When using 58mm roll paper, mount the partition in the direction of the arrow as shown below. - After using 58mm paper, do not change it to a larger paper. This causes bad print quality.

  • Page 26: Printer Setting Change

    SRP-330II/332II 4. Printer Setting Change 4-1 Serial Interface Settings • DIP Switch 1 Switch Function Default Auto Cutter Control Disable Enable Flow Control XON/XOFF DTR/DSR Data Length 7 bits 8 bits Parity Check Parity Selection EVEN Baud rate Selection(bps) Refer to the following Table 1 •...

  • Page 27: Print Density (Virtual Memory Switch)

    SRP-330II/332II 4-3 Print Density (Virtual Memory Switch) The print density can be set to one of sixteen different levels through virtual memory switches. Print Density Print Density Speed Light Dark (Virtual Memory Switch) 4(High) Level 1 Level 2 Level 3...

  • Page 28: Self-Test

    SRP-330II/332II 5. Self-Test The self-test checks whether the printer has any problems. If the self-diagnostics reveal no error in the printer, please see other device or software. If the printer does not run normally, please contact the place of purchase.
  • Page 29 SRP-330II/332II (1) If “Continuous SELF-TEST” is selected ① If you press the FEED button for less than 1 second, the printer will print in the preset character type. ② The self-test completes automatically and cuts the paper after printing the following line.
  • Page 30 SRP-330II/332II (2) If “VMSM Selection” is selected ① When the printer goes into virtual switch-setting mode, the following lines will be printed. ** VMSM Selection ** 0: Exit and reboot printer 1: Print current settings 2: Set Print Density 3: Set Print Speed...

  • Page 31: Hexadecimal Dumping

    SRP-330II/332II 6. Hexadecimal Dumping This function allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands.

  • Page 32: Maintenance

    SRP-330II/332II 7. Maintenance 7-1 Paper Jam • Never force the paper out in the event of a paper jam. If paper is stuck, turn the printer ON/OFF and open the Printer Cover to remove the crumpled paper inside the printer. If the cover will not open, please follow the following instructions.

  • Page 33: Cleaning Printer

    SRP-330II/332II 7-2 Cleaning Printer • The presence of dust, foreign matter, adhesive matter, or other pollutants inside the printer’s head and internal capacity may undermine printing quality. Periodic cleaning (every 3 months at minimum) is recommended to maintain print quality.

  • Page 34: Specifications

    3-inch 72 mm Printing Width 2-inch 48 mm Paper Width 79.5±0.5 mm SRP-330II: 42(Font A), 56(Font B), 56(Font C) Characters Per Line (Default) SRP-332II: 48(Font A), 64(Font B), 64(Font C) Printing Speed Max. 220 mm/sec Receive Buffer Size 4Kbytes Input Voltage...

  • Page 35: Recommended Papers

    - The use of papers other than those recommended above may cause damage to the printer’s TPH or degrade the printing quality. BIXOLON is not responsible for the damage caused by non-recommended papers. - If you have to use other products, we recommend that you use papers with a similar level of quality to the recommended ones.
  • Page 36 SRP-330II/332II Revision history Ver. Date Description 2.00 22-11-2023 New Form Ver. 2.00 - 36 -...
