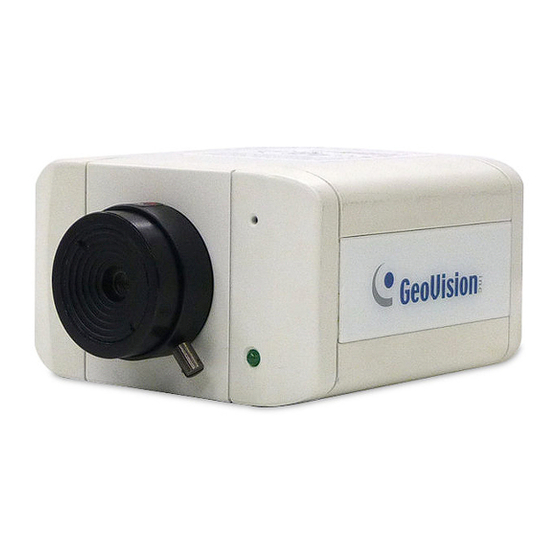

GV-BX2400 Series
GV‐BX2400‐0F / 1F / 2F
GV‐BX2400‐3V / 4V
Models
Models
GV‐BX2400‐0F
GV‐BX2400‐1F
GV‐BX2400‐2F
GV‐BX2400‐3V
GV‐BX2400‐4V
Active Tampering Alarm
Tampered
GV-BX2400 Series
2MP H.264 WDR Pro D/N Box IP Camera
•
2 megapixel progressive scan CMOS
•
Dual streams from H.264 and MJPEG
•
Up to 30 fps at 1920 x 1080
•
Built‐in / external microphone
•
2‐way audio
•
One sensor input and alarm output
•
TV‐out support
•
Memory Card Slot
•
Mini USB slot for WiFi Adapter (Optional)
•
Wide Dynamic Range Pro (WDR Pro)
•
Defog
•
Motion detection
•
Tampering alarm
•
Privacy mask
•
IP address filtering
•
DC 12V / PoE
•
Removable IR‐cut filter for Day/Night function
•
Varifocal megapixel lens
•
Supports iPhone, iPad, Android & 3GPP
•
31 languages on Web interface
•
ONVIF conformant
* No Memory card slot & local storage function for Argentina.
Iris
Focal Length (mm)
Fixed
12 mm
2.8 ~ 12 mm
DC drive
3 ~ 10.5 mm
Focus Change
Maximum Aperture
4 mm
F/1.5
8 mm
F/1.6
F/1.4
- 1 -
Image Format
1/3"
1/2.5"
1/3"
1/2.7"
Camera Shift
March 7, 2013
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GeoVision BX2400?0F
Summary of Contents for GeoVision BX2400?0F
- Page 1 GV-BX2400 Series 2MP H.264 WDR Pro D/N Box IP Camera • 2 megapixel progressive scan CMOS GV‐BX2400‐0F / 1F / 2F • Dual streams from H.264 and MJPEG • Up to 30 fps at 1920 x 1080 • Built‐in / external microphone • 2‐way audio • One sensor input and alarm output • TV‐out support • Memory Card Slot • Mini USB slot for WiFi Adapter (Optional) • Wide Dynamic Range Pro (WDR Pro) • Defog • Motion detection • Tampering alarm • Privacy mask GV‐BX2400‐3V / 4V •...
-
Page 2: Specifications
Overview Panel Dimensions Model L Length BX2400‐0F 15.7 mm (0.62”) BX2400‐1F 15.7 mm (0.62”) BX2400‐2F 15.7 mm (0.62”) BX2400‐3V 39.5 mm (1.56”) BX2400‐4V 37.1 mm (1.46”) Specifications Camera GV‐BX2400‐0F GV‐BX2400‐1F GV‐BX2400‐2F GV‐BX2400‐3V GV‐BX2400‐4V Image Sensor 1/3.2" progressive scan CMOS Picture Elements 1920 (H) x 1080 (V) Color 0.08 Lux at F/1.4 Minimum Illumination B/W 0.05 Lux at F/1.4 IR ON 0 Lux Shutter Speed ... -
Page 3: Operation
Lens Focus Manual Manual (w/lock) Operation Zoom Fixed Manual (w/lock) Iris Fixed DC drive Torque (Focus/Zoom screws) 0.049 N.m Operation Video Compression H.264, MJPEG Video Streaming Dual streams from H.264 and MJPEG 30 fps at 1920 x 1080 Frame Rate * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Image Setting Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog G.711, AAC (24 kHz / 16 bit) Audio Compression *AAC (24 kHz / 16 bit) is only supported by GV‐System V8.5.6 or later. Two‐way Audio Yes Sensor Input 1 input (Dry Contact) Alarm Output 1 Digital Output (200mA 5V DC) Video Resolution 4:3 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main Stream 16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252 ... - Page 4 Web Interface Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O Access from Web Browser control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Language Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish Applications Network Storage GV‐NVR, GV‐System, GV‐Backup Center, GV‐Recording Server GV‐Eye for Android smartphone, tablet, iPhone, and iPod Touch Smart Device Access GV‐Eye HD for iPad Live Viewing IE, mobile phone CMS Server support GV‐Control Center, GV‐Center V2, GV‐VSM Note: 1. The signal range and data throughput may vary depending on the network conditions and environmental factors. 2. Specifications are subject to change without notice. Accessories Name Details Weight: 140 g (0.31 lb) GV‐IR LED T2 Dimensions (H x W x D): 49 x 47 x 67 mm (1.93” x 1.85” x 2.64”) Weight: 130 g (0.29 lb) GV‐PA191 PoE Adapter Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x 2.72” x 1.57”) ...
- Page 5 Name Details Description Megapixel day/ night lens Focal Length 4 mm Maximum F/1.5 Aperture Mount CS Mount Fixed Lens : 4 mm Image Format 1/3" Focus: Manual Operation Zoom: Fixed Iris: Fixed Dimension ø30 x 27 mm (ø1.18” x 1.06”) Weight 30 g (0.07 lb) Description Megapixel day/ night lens Focal Length 8 mm Maximum F/1.6 Aperture Mount CS Mount Fixed Lens : 8 mm Image Format 1/2.5" Focus: Manual Operation Zoom: Fixed Iris: Fixed Dimension ...
- Page 6 Name Details Description Megapixel day/ night lens Focal Length 12 mm Maximum F/1.6 Aperture Mount CS Mount Varifocal Lens : 2.8 ~ 12 mm Image Format 1/2.5" Focus: Manual Operation Zoom: Fixed Iris: Fixed Dimension ø 30 x 20.6 mm (ø 1.18” x 0.81”) Weight 28.6 g (0.06 lb) Description Megapixel day/ night lens Focal Length 2.8 ~ 12 mm Maximum F/1.4 Aperture Mount CS Mount Varifocal Lens : 3 ~ 10.5 mm Image Format 1/3" Focus: Manual (w/lock) Operation Zoom: Manual (w/lock) Iris: DC Drive Dimension ...
