- Page 1 RUPS812T v.1.0 RUPS 13,8V/8x1A/TOPIC RACK mounted buffer power supply for up to 8 analog cameras. Edition: 1 from 28.01.2016 Supercedes the edition: ------...
- Page 2 RACK POWER www.pulsar.pl RUPS812T Features: • • LED optical indication: AC, DC, TEMP, LoB, ALARM, DC 13,8V/8x1A uninterruptible power supply for powering analog cameras (Σ Ι =8A max.) AUX1 ÷ AUX8 • the ALARM technical output of collective failure –...
- Page 3 1. Technical description. 1.1. General description. The RUPS812T buffer power supply unit is designed for uninterrupted power supply of up to 8 analog cameras requiring stabilized voltage of 12V DC (+/- 15%). The PSU provides voltage of U=13,8V DC. Current efficiency: Output current 8A + 1A battery charge.

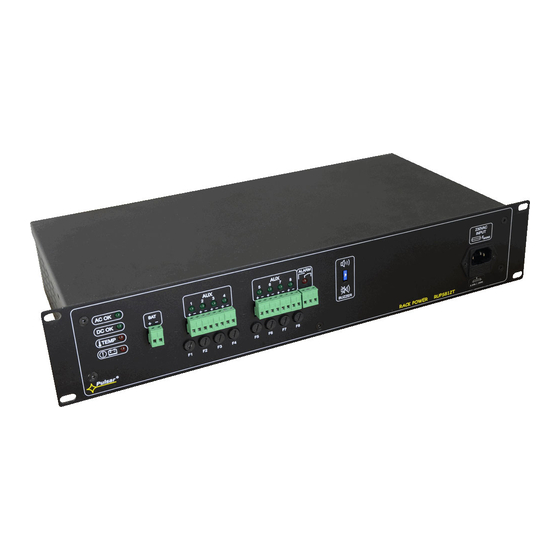

- Page 4 RACK POWER www.pulsar.pl RUPS812T Fig. 2. The front power of the power supply unit. Fig.3. The view of the PSU. 1.4. Specifications. - electrical parameters (tab.2) - mechanical parameters (tab.3) - operation safety (tab.4) - operating parameters (tab.5) Electrical parameters (tab. 2).
- Page 5 RACK POWER www.pulsar.pl RUPS812T Overvoltage protection OVP >16V (automatic recovery) Battery circuit protection SCP and reverse polymer fuse PTC polarity connection Surge protection varistors Excessive discharge protection UVP U<9,5V (+/-5%) – disconnect of connection battery Optical indication of operation: LED: AC, DC, TEMP, LoB, ALARM, AUX1÷AUX8...
- Page 6 RACK POWER www.pulsar.pl RUPS812T 2.2. Installation procedure. 1. Before installation, cut off the voltage in the 230V power-supply circuit. 2. Mount the power supply in a RACK 19" cabinet as shown below: - Mount M6 cage nuts - Secure the enclosure with 4xM6 screws 3.
- Page 7 RACK POWER www.pulsar.pl RUPS812T 3.2. Technical output. The power supply is fitted with the ALARM output of collective failure (relay type). A collective failure can be triggered by the following events: - 230V AC mains power failure - Melting fuse activation F1÷F8 - Failure of the switch mode power supply -Too high temperature of the switch mode power supply (>70°...
- Page 8 GENERAL WARRANTY CONDITIONS 1. Pulsar (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer.
