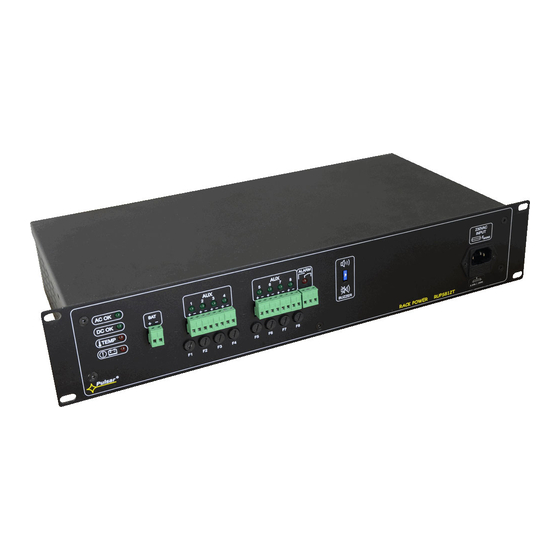

Pulsar RUPS812T Quick Start Manual

Pulsar RUPS812T Quick Start Manual

13,8v/8x1a/topic rack mounted buffer power supply for up to 8 hd cameras

Advertisement

Quick Links

RUPS812T
v.1.0
RUPS 13,8V/8x1A/TOPIC
RACK mounted buffer power supply for up to 8 HD cameras.
EN*
Edition: 2 from 30.03.2017
Supercedes the edition: 1 from 28.01.2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RUPS812T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pulsar RUPS812T

  • Page 1 RUPS812T v.1.0 RUPS 13,8V/8x1A/TOPIC RACK mounted buffer power supply for up to 8 HD cameras. Edition: 2 from 30.03.2017 Supercedes the edition: 1 from 28.01.2016...
  • Page 2 RACK POWER www.pulsar.pl RUPS812T Features:   LED optical indication: AC, DC, TEMP, LoB, ALARM, DC 13,8V/8x1A uninterruptible power supply for AUX1 ÷ AUX8 powering HD cameras (8A max.)  the ALARM technical output of collective failure  8 outputs independently protected –...
  • Page 3 1. Technical description. 1.1. General description. The RUPS812T buffer power supply unit is designed for uninterrupted power supply of up to 8 HD cameras requiring stabilized voltage of 12V DC (+/- 15%). The PSU provides voltage of U=13,8V DC. Current efficiency: Output current 8A + 1A battery charge.
  • Page 4 RACK POWER www.pulsar.pl RUPS812T AUX1 ÷ AUX8 – independently protected outputs BAT – battery output ALARM – technical output of collective failure – relay BUZZER, micro switch, turning ON / OFF of acoustic indication switch in the top position, indication ON switch in the down position, indication OFF F1 ÷...
  • Page 5 RACK POWER www.pulsar.pl RUPS812T 1.4. Specifications. - electrical parameters (tab.2) - mechanical parameters (tab.3) - operation safety (tab.4) - operating parameters (tab.5) Electrical parameters (tab. 2). Mains supply 176÷264V AC Current up to 1,1A@230V AC max. Supply power 124W max.
  • Page 6 RACK POWER www.pulsar.pl RUPS812T 2. Installation. 2.1. Requirements. The PSU RACK shall be mounted by a qualified installer with appropriate permissions and qualifications for 230V/AC installations and low-voltage installations (required and necessary for a given country). The device shall be mounted in confined spaces, according to the environment class II, with normal air humidity (RH=90% max.
  • Page 7 RACK POWER www.pulsar.pl RUPS812T  off – no failure RED LED:  ON – too high temperature of the switch mode power supply (>70°C)  OFF – standard temperature of the switch mode power supply RED LED:  on – battery voltage <11,5V ...
  • Page 8 RACK POWER www.pulsar.pl RUPS812T 4. Operation and use. 4.1. Overload or short circuit of the PSU output. The AUX1 ÷ AUX8 power supply outputs are protected against short circuit by melting fuses; in the case of fuse failure, it should be replaced with a fuse of the same type.
