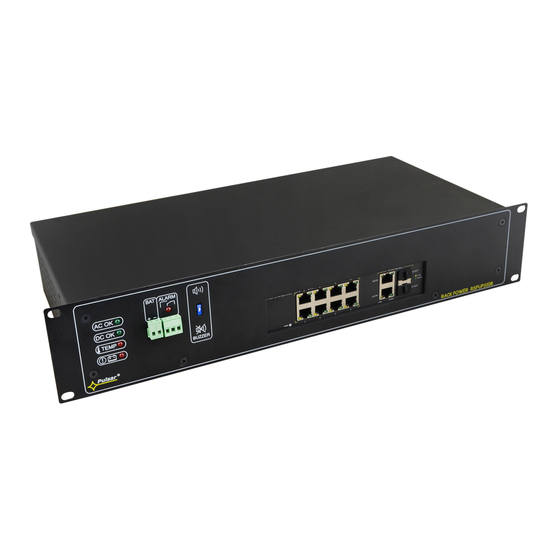

Pulsar Rack Power RSFUPS108 Manual

Pulsar Rack Power RSFUPS108 Manual

10-ports switch with buffer power supply for 8 ip cameras

Advertisement

Quick Links

RSFUPS108
v.1.0
10-ports switch with buffer power supply for 8 IP cameras,
RACK mounted
EN
Edition: 1 from 22.09.2017
Supercedes the edition: ------------

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rack Power RSFUPS108 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pulsar Rack Power RSFUPS108

  • Page 1 RSFUPS108 v.1.0 10-ports switch with buffer power supply for 8 IP cameras, RACK mounted Edition: 1 from 22.09.2017 Supercedes the edition: ------------...
  • Page 2: Table Of Contents

    RACK POWER www.pulsar.pl RSFUPS108 Features:   acoustic indication of failure DC 48V uninterruptible power supply of 8 IP cameras   LED optical indication: AC, DC, TEMP, LoB, Switch 10 ports 8 PoE 10/100Mb/s ports, (1÷8 ports) (data and power ALARM ...
  • Page 3: Technical Description

    RACK POWER www.pulsar.pl RSFUPS108 1. Technical description. 1.1. General description. The RSFUPS108 is a complete solution for power supply and battery backup of 8 IP cameras (48VDC power supply) in RACK 19" standard. The main elements of this system include:...
  • Page 4 RACK POWER www.pulsar.pl RSFUPS108 BUZZER, micro switch, turning ON / OFF of acoustic indication switch in the top position, indication ON switch in the down position, indication OFF PoE port 1÷8 for cameras IP connection (data + power supply) 2 x UPLINK ports (G1/TP, G2/TP)
  • Page 5: Specifications

    RACK POWER www.pulsar.pl RSFUPS108 Fig.5. The view of the switch. Table 2. (See Fig. 5). Element no. Description [Fig. 2] LINK - yellow LED - indicating the LAN connection status PoE - green LED indicating voltage at the PoE port PWR –...
  • Page 6: Installation

    RACK POWER www.pulsar.pl RSFUPS108 Battery circuit protection SCP and reverse melting fuse polarity connection U<19V (+/-5%) – disconnect of connection battery Excessive discharge protection UVP Optical indication of operation: LED: AC, DC, TEMP, LoB, ALARM, LINK, PoE Acoustic operation indication:...
  • Page 7: Installation Procedure

    RACK POWER www.pulsar.pl RSFUPS108 2.2. Installation procedure. 1. Before installation, cut off the voltage in the 230V power-supply circuit. 2. Mount the power supply in a RACK 19" cabinet as shown below: - Mount M6 cage nuts - Secure the enclosure with 4xM6 screws 3.
  • Page 8: Optical Indication Of The Switch Operation

    RACK POWER www.pulsar.pl RSFUPS108 3.2. Optical indication of the switch operation: OPTICAL INDICATION OF THE SWITCH's POWER SUPPLY GREEN LED LIGHT (Power) OFF – no power supply of the switch Indication of the switch's power ON – power supply on, normal operation supply OPTICAL INDICATION OF THE SWITCH's POWER SUPPLY (1÷8)
  • Page 9: Acoustic Indication

    RACK POWER www.pulsar.pl RSFUPS108 3.4. Acoustic indication. A collective failure is indicated by the piezoelectric indicator, 1 beep every second. The acoustic indication can be turned off by changing the ON / OFF position of the switch switch in the up position, indication ON switch in the down position, indication OFF 4.
  • Page 10 The power supply unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but recycled according to the applicable law. Pulsar Siedlec 150, 32-744 Łapczyca, Polska Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
