Pulsar R1624T Manual

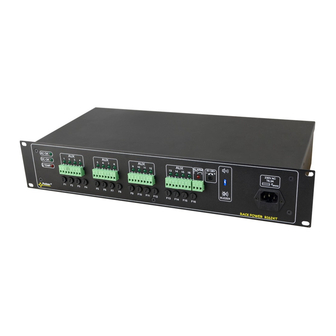

Rack mounted power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R1624T
v.1.0
R 24V/16x0,5A/TOPIC
RACK mounted power supply.
EN**
Edition: 1 from 22.09.2017
Supercedes the edition: ------------

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R1624T and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar R1624T

Summary of Contents for Pulsar R1624T

  • Page 1 R1624T v.1.0 R 24V/16x0,5A/TOPIC RACK mounted power supply. EN** Edition: 1 from 22.09.2017 Supercedes the edition: ------------...

  • Page 2: Table Of Contents

    RACK POWER www.pulsar.pl R1624T Features:   the ALARM technical output of collective failure DC 24V/16x0,5A uninterruptible power supply – relay type, activated by: for powering HD cameras (8A max.)  230V AC power loss  the adjustment of output voltage in the range ...

  • Page 3: Technical Description

    1.1. General description. The R1624T power supply unit is designed for uninterrupted power supply of up to 16 HD cameras requiring stabilized voltage of 24V DC with the total current efficiency of 8A. The output voltage adjustment range is adjusted via a potentiometer within the range of 20V÷26V DC.
  • Page 4 RACK POWER www.pulsar.pl R1624T Fig. 2. The front power of the power supply unit. Fig.3. The view of the PSU.

  • Page 5: Specifications

    RACK POWER www.pulsar.pl R1624T 1.4. Specifications. - electrical parameters (tab.2) - mechanical parameters (tab.3) - operation safety (tab.4) - operating parameters (tab.5) Electrical parameters (tab. 2). Mains supply 230V AC (-15%/+10%) 50Hz Current up to 1A max./230V AC Supply power 192W max.

  • Page 6: Installation

    RACK POWER www.pulsar.pl R1624T 2. Installation. 2.1. Requirements. The PSU RACK shall be mounted by a qualified installer with appropriate permissions and qualifications for 230V/AC installations and low-voltage installations (required and necessary for a given country). The device shall be mounted in confined spaces, according to the environment class II, with normal air humidity (RH=90% max.

  • Page 7: Operating Status Indication

    RACK POWER www.pulsar.pl R1624T 3. Operating status indication. 3.1. LED indication. The PSU has 20 LED lights at the front panel: GREEN LED:  on – the PSU is supplied with 230V AC  off – no 230V AC supply GREEN LED: ...

  • Page 8: Acoustic Indication

    RACK POWER www.pulsar.pl R1624T 3.3. Acoustic indication. A collective failure is indicated by the piezoelectric indicator, 1 beep every second. The acoustic indication can be turned off by changing the ON / OFF position of the switch switch in the up position, indication ON switch in the down position, indication OFF 4.
