- Page 1 R812P v.1.0 R 12V/8x1,5A/PTC RACK mounted power supply for up to 8 analog cameras. EN** Edition: 1 from 28.01.2016 Supercedes the edition: ------...
-
Page 2: Table Of Contents
RACK POWER www.pulsar.pl R812P Features: • • the ALARM technical output of collective failure –relay DC 12V/8x1A uninterruptible power supply for powering analog cameras (Σ Ι =8A max.) type, activated by: • 230V AC power loss • the adjustment of output voltage in the range •... -
Page 3: Technical Description

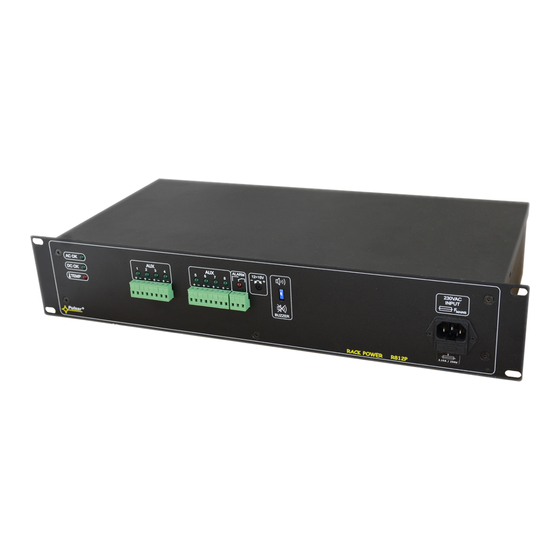

1. Technical description. 1.1. General description. The R812P power supply unit is designed for uninterrupted power supply of up to 8 analog cameras requiring stabilized voltage of 12V DC with the total current efficiency of 8A. The output voltage adjustment range is adjusted via a potentiometer within the range of 12V÷15V DC. -
Page 4: Specifications
RACK POWER www.pulsar.pl R812P Fig. 2. The front power of the power supply unit. Fig.3. The view of the PSU. 1.4. Specifications. - electrical parameters (tab.2) - mechanical parameters (tab.3) - operation safety (tab.4) - operating parameters (tab.5) Electrical parameters (tab. 2). -
Page 5: Installation
RACK POWER www.pulsar.pl R812P Acoustic operation indication: Piezoelectric indicator ~75dB/0,3m The ALARM technical output of collective failure Relay type: 1A@ 30VDC/50VAC The F fuse in the 230V power supply circuit T 3,15A MAINS Mechanical parameters (tab. 3). Enclosure dimensions W=19”, H=2U; 482 x 88 x 223 mm (WxHxD) Fixation four-point butt mounting to RACK profiles –... -
Page 6: Installation Procedure
RACK POWER www.pulsar.pl R812P 2.2. Installation procedure. 1. Before installation, cut off the voltage in the 230V power-supply circuit. 2. Mount the power supply in a RACK 19" cabinet as shown below: - Mount M6 cage nuts - Secure the enclosure with 4xM6 screws 3. -
Page 7: Technical Output
RACK POWER www.pulsar.pl R812P 3.2. Technical output. The power supply is fitted with the ALARM output of collective failure (relay type). A collective failure can be triggered by the following events: - 230V AC mains power failure - polymer fuses PTC activation - Failure of the switch mode power supply -Too high temperature of the switch mode power supply (>70°... - Page 8 GENERAL WARRANTY CONDITIONS 1. Pulsar (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer.
