AMX Matrix Mi Series Installation Manual page 2

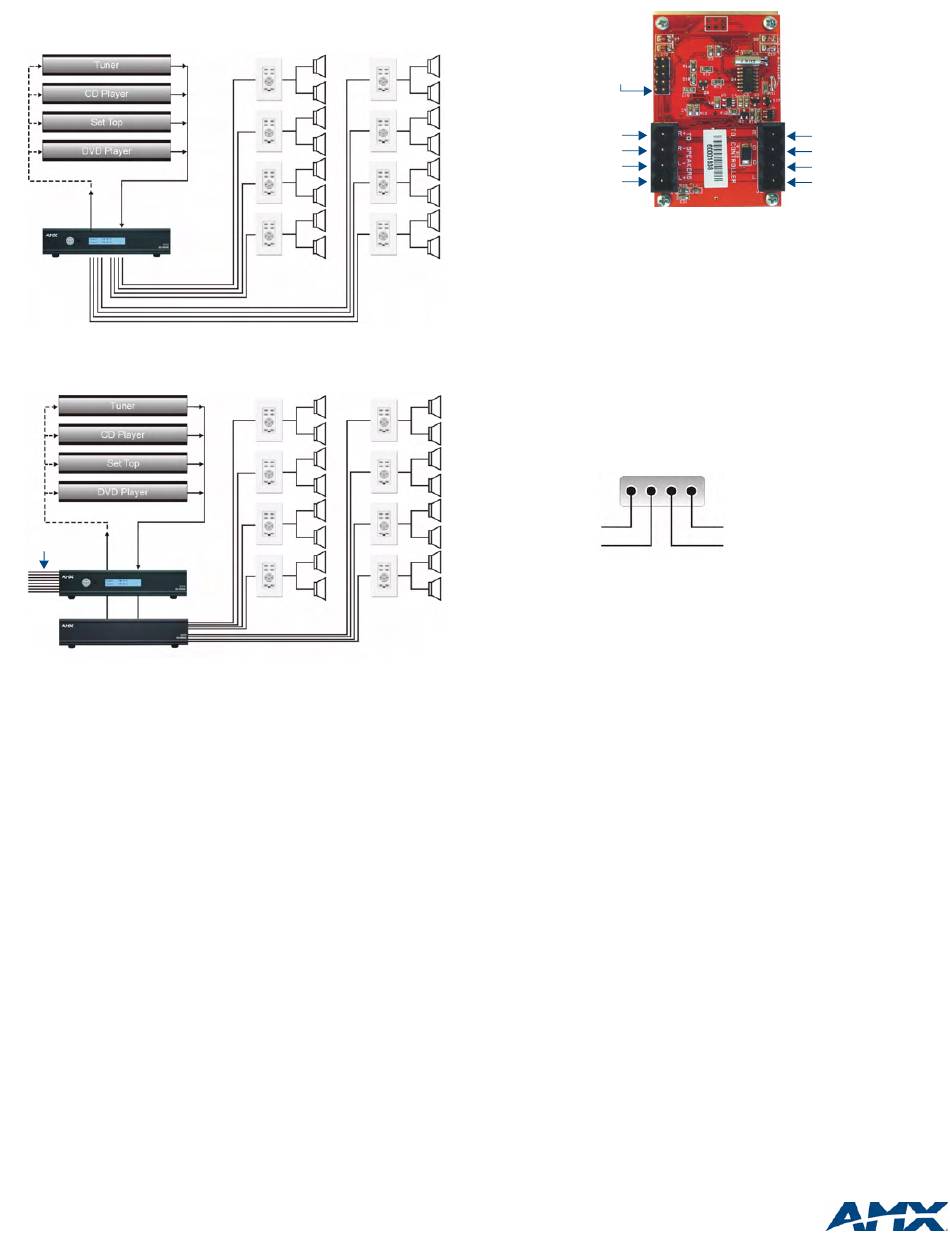

System Integration Drawings
Using Four Conductor Speaker Wire
IR OUT LINE IN
Mi Series
Controller
Shared 4-conductor keypad/speaker wire
FIG. 2
System Integration Drawing Using Four Conductor Speaker Wire
Using the Audio Zone Expander
IR OUT LINE IN
Zones 1-8
Mi Series
Controller
LINE IN RJ11
Mi Series Audio Zone Expander
FIG. 3
System Integration Drawing Using the Audio Zone Expander
RS-232 Cable
When connecting to the RS-232 port located on the back of the Mi Series
Controller, it is necessary to use a DB9 cable. The Mi Series Controller utilizes
DCE protocol therefore no NULL modem adapter is necessary. You may also
use a USB to DB9 adapter.
• Connector: DB9 Male
• Communications: 9600 Baud, 8 data bits, 1 stop bit, no parity
Keypad Installation
Connections points at the Mi Series Controller and Keypad are solder-less and
they are completed by spring-loaded Molex connectors (provided).
Note: Each zone can be configured with either 2 pushbutton keypads (Numeric
or Source), or 1 LCD Keypad and 1 pushbutton Keypad, but not 2 LCD
keypads.
Molex Wiring Connections
Looking at the rear of the Keypad with the connectors at the bottom, you will
see (2) plug type Molex connectors. Generally the mating part is already
installed on the unit when shipped. Lifting gently and pulling the connector
away from the Keypad will remove it.
The Connector on the Right Side terminates the 4 conductor wire from the Mi
Series Controller and the connector on the Left Side passes the audio to the
speakers in the zone (FIG. 4).
