AMX NXA-RGB Quick Start Manual

For more detailed installation, operation, and firmware setup instructions,
refer to the VG-Series Modero Touch Panels instruction manual available
on-line at www.amx.com.
Overview
The NXA-RGB (FIG. 1) is an RGB/VGA plug-in interface card (FG2260)
that allows any of AMX's VG-Series Modero Touch Panels to accept either
RGB or HDTV Component signals directly from an external source when
routed through an optional NXA-AVB/RGB Breakout Box. This card is field
upgradeable and works in-tandem with the RGB connector on the front of
an NXA-AVB/RGB Breakout Box.

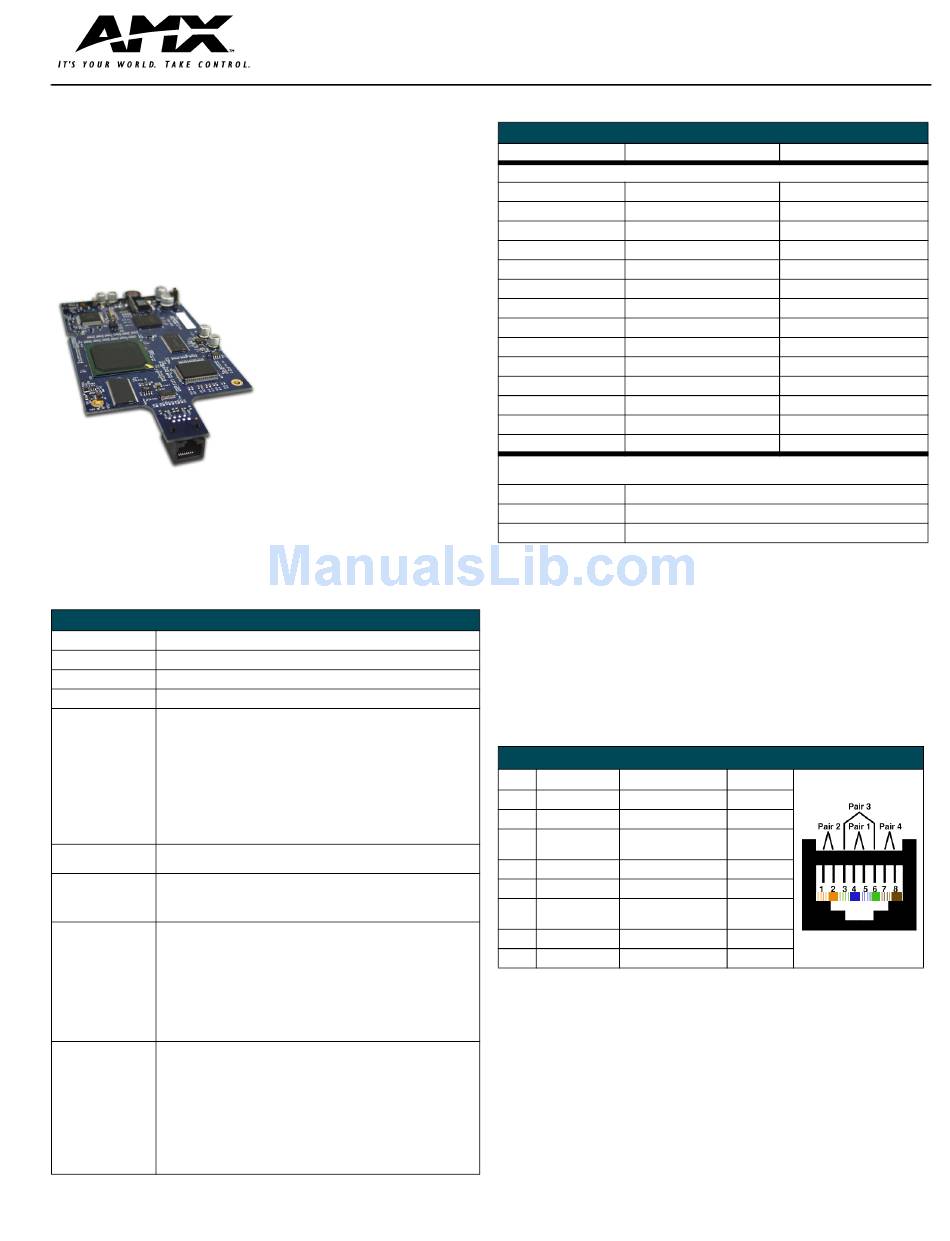

FIG. 1
NXA-RGB RGB/VGA interface card (installed within a VG-Series panel)
The NXA-RGB card is an optional accessory that can be added to any
VG-Series Modero panel as part of an upgrade kit. The NXA-RGB card is a
daughter card that plugs into the Modero's main board. This card provides
the ability to display computer graphics (RGB) or component (YCrCb) video
within a full screen or resizeable on-screen window on the Modero panel.
Specifications
NXA-RGB Specifications
Dimensions (HWD): • 0.88" x 3.50" x 6.50" (2.22 cm x 8.89 cm x 16.51 cm)
Weight: • 0.85 lbs (0.39 kg)
Power: • 240 mA @ 12 VDC
Certifications: • FCC, CE, and EN60950
Features: • Accepts RGB or Component inputs (via NXA-AVB/RGB)
• Included with 1200VG/1500VG/1700VG RGB Kits
• Integrates output of keyboard and mouse data via RGB port
• On-screen RGB display window is resizeable (all the way up to full
screen)
• Provides RGB connectivity to the panel over CAT5 cables up to 200 ft.
(60.9 m)
• Receives VGA and Component video signals from the RGB connector
on the front of the NXA-AVB/RGB Breakout Box.
• Routes RGB and computer control pass-thru signals from the USB
connectors on the Modero panel to the RGB connector on the front of
the NXA-AVB/RGB Breakout Box.
Availability • This component is available separately or as part of NXA-RGBKIT
upgrade kit (FG2255-11) for Modero VG-Series touch panels.
Connector: • RJ-45 connector provides RGB/Component video signals (being routed
from the rear RGB/Component input ports) and touch control
information to the RJ-45 RGB connector on the NXA-RGB card
(installed within the panel).
Included • Five pan-head securing screws
Accessories: • NXA-AVB Modero RGB/VGA Interface Card QSG (93-2260)
• This unit is also available within the NXA-RGBKit (FG2255-11):
- NXA-AVB/RGB Breakout Box (FG2254-11)
- NXA-MTC/RGB Combo Table Top cable (CA2250-70)
- NXA-RGB internal RGB/VGA card (FG2260)
- NXA-RGBCBL, 15-pin to 5X BNC RGB Breakout cable (FG2250-80)
- NXT Table Top replacement I/O plate (with RGB connector opening)
(62-2250-59)
- NXD WallMount replacement adhesive overlay for existing I/O plate
(53-2250-03)
Optional • Included within the RGB Kit (FGxxxx-xxRGB) is the following:
- Modero VG Touch Panel (NXD/NXT-1200/1500/1700VG)
Accessories:
- NXA-AVB/RGB Breakout Box (FG2254-11)
- NXA-MTC/RGB Combo Table Top cable - VG-Series panels
(CA2250-70)
- NXA-PCI80211G (FG2255-04) (Table Top Kits ONLY)
- NXA-RGB internal RGB/VGA card (FG2260)
- NXA-RGBCBL, 15-pin to 5X BNC RGB Breakout cable (FG2250-80)
• NXA-AVB/RGB Breakout Box (FG2254-11)
• NXA-MTC/RGB Modero cable (CA2250-70)
• NXA-RGBCBL, 15-pin to 5X BNC RGB Breakout cable (FG2250-80)
• PSN6.5 power supply (FG423-41)
NXA-RGB
Modero RGB/VGA Interface Card
Supported Component/VGA Video Resolutions and Formats
NXA-RGB Supported Resolutions and Formats
Resolutions Refresh Rates
VGA Compatible signals:
560 x 192
560 x 384
640 x 350
640 x 416
640 x 480 60 Hz, 72 Hz, 75 Hz, 85 Hz
720 x 532
800 x 600 60 Hz, 72 Hz, 75 Hz, 80 Hz
900 x 720
1024 x 768 60 Hz, 70 Hz, 75 Hz, 85 Hz
1280 x 768 60 Hz, 70 Hz, 75 Hz, 85 Hz
1280 x 800 60 Hz, 70 Hz, 75 Hz, 85 Hz
1152 x 864 60 Hz, 70 Hz, 75 Hz
1280 x 1024 60 Hz, 75 Hz, 85 Hz
1600 x 1200
Component/HDTV
Compatible signals:
720 x 483
1280 x 720
1920 x 1080
RGB RJ-45 Connection and Wiring
This RJ-45 connector is used to route the signals connected to the
RGB / Component input port on the rear of the AVB/RGB Breakout Box to
the VG-Series Modero panel. A standard CAT5 cable can be used for this
connection with short cable runs under 50 feet (15.24 m). For cable runs
over 50 feet (15.24 m), AMX recommends using the Belden Brilliance
VideoTwist 7987. This Belden cable is not CAT5 compliant, but is designed
to control skew between the red, green, and blue video signals. Therefore,
for longer cable runs, the video quality will be much higher using the Belden
VideoTwist 7987 cable versus standard CAT5 (or other Ethernet compliant
cables). The pinout of this RGB connector is given in the table below.
RGB RJ-45 Connector Pinouts and Signals
Pin Color Function
1 Orange-White Blue Video
2 Orange Blue Video
3 Green-White Data
(bidirectional)
4 Blue Green Video
5 Blue-White Green Video
6 Green Data
(bidirectional)
7 Brown-White Red Video
8 Brown Red Video
Note: It is important that the correct pairing is observed.
Installation of the NXA-RGB Card within a Table Top Panel
These procedures involve removing the outer housing, installing the card,
and then securely replacing the outer housing back onto the NXT panel.
Step 1: Removing the existing NXT Outer Housing
1. Carefully detach all connectors from the rear of the touch panel.
2. Gently place the touch panel LCD facedown onto a soft cloth to
expose the under-side of the base (FIG. 2) and prevent scratching of
the LCD. Tilt the base forward to provide easy access to the flat-head
and pan-head Housing Screws.
Quick Start Guide
Descriptions
60 Hz • Apple II
60 Hz • MAC 12"
60 Hz • EGA HP 12"
60 Hz • DOS machines
• VGA
60 Hz • IBM 3472
• SVGA
60 Hz • Power PC 7 and Power PC 8
• XGA
• WXGA
• WXGA
• XGA
• SXGA
60 Hz • UXGA
• HD 480p - SMPTE 293M
• HD 720p - SMPTE 296M
• HD 1080i - SMPTE 27 4M
Polarity
-
+
-
-
+
+
-
T I A 5 6 8 B
+
